MGF MGTF door lock


	.Rechtes Türschloss	RHD right door lock
	.Türschloß	side view1.
	.	side view2.
	.	top view1
	.	top view2

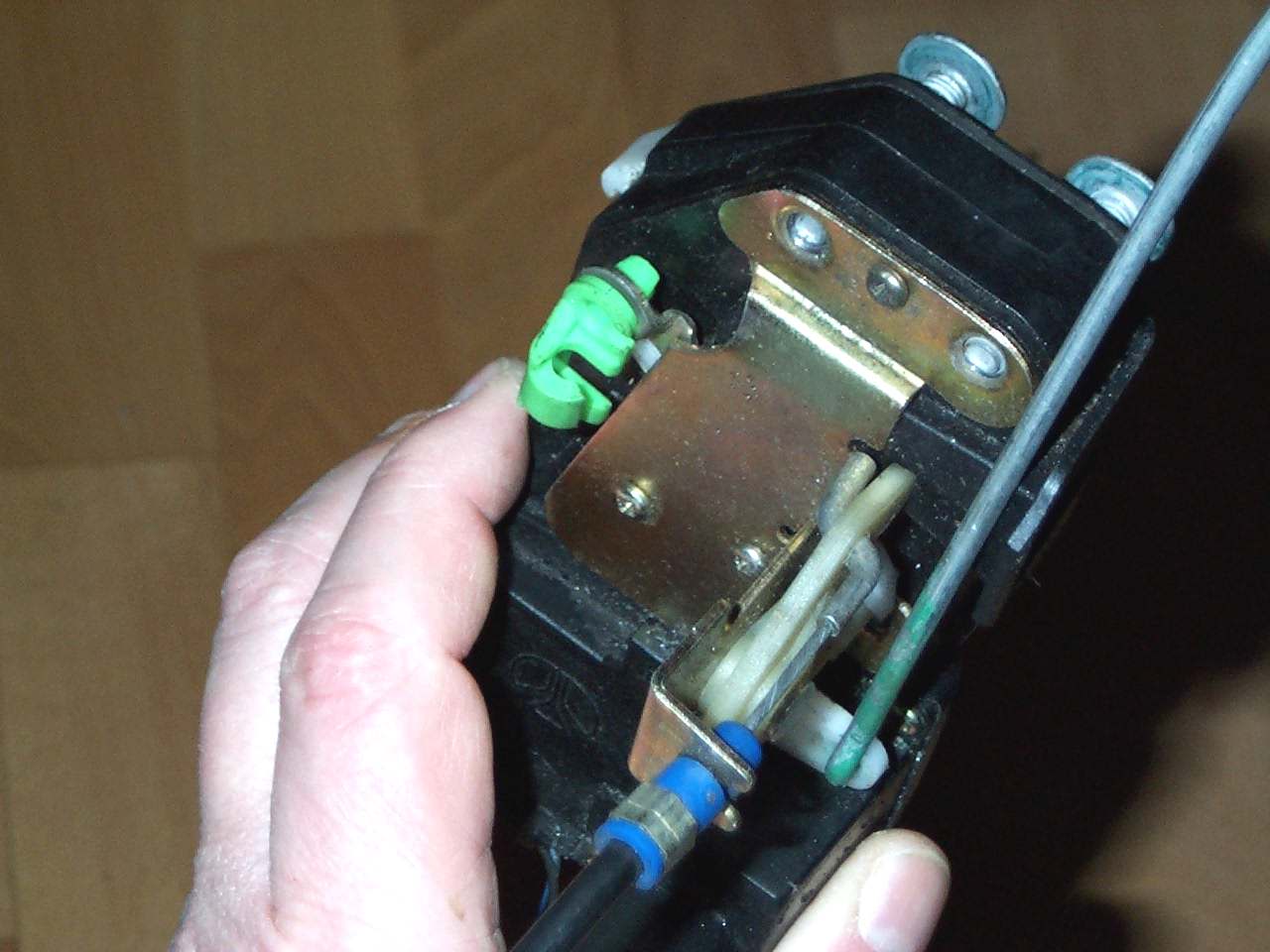

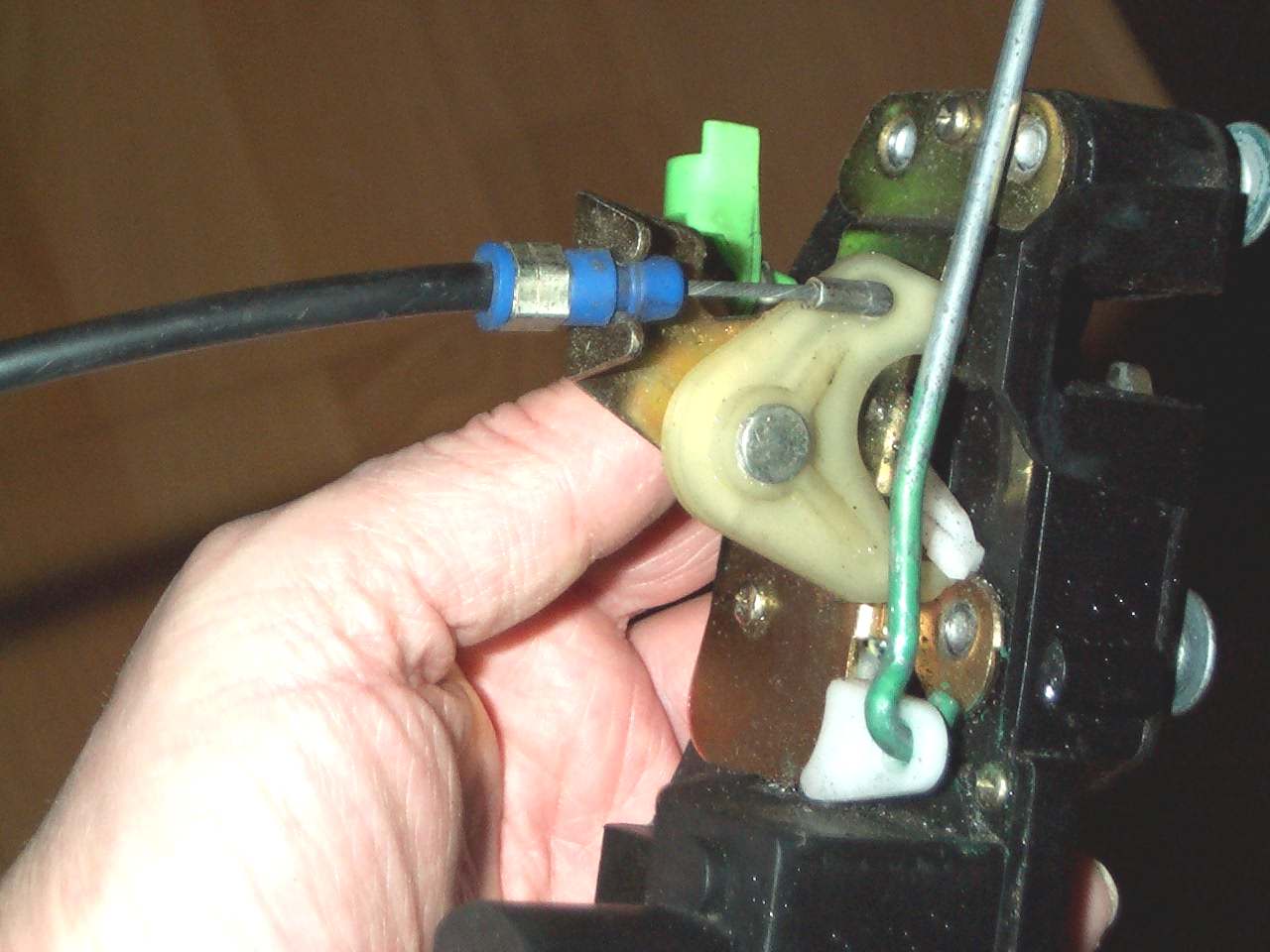

	Bowdenzug vom Schloßhebel (innen).	cable just to dismantle

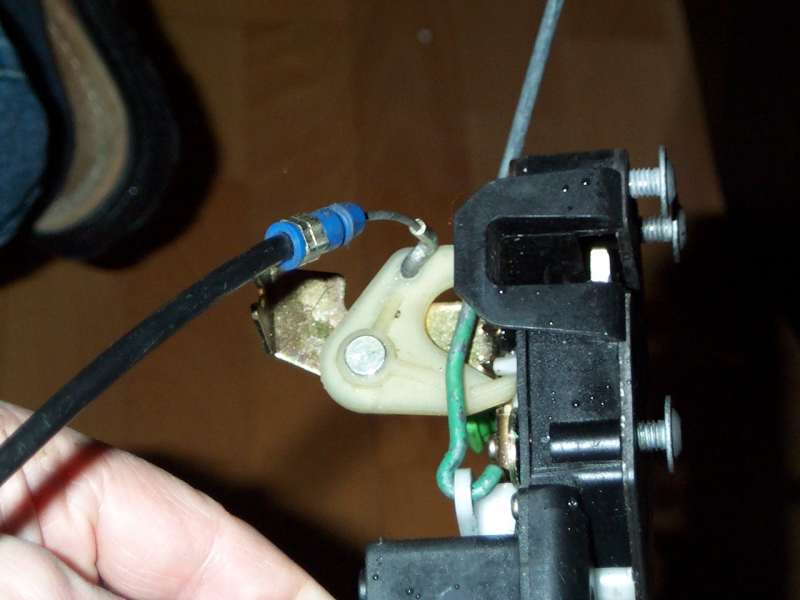

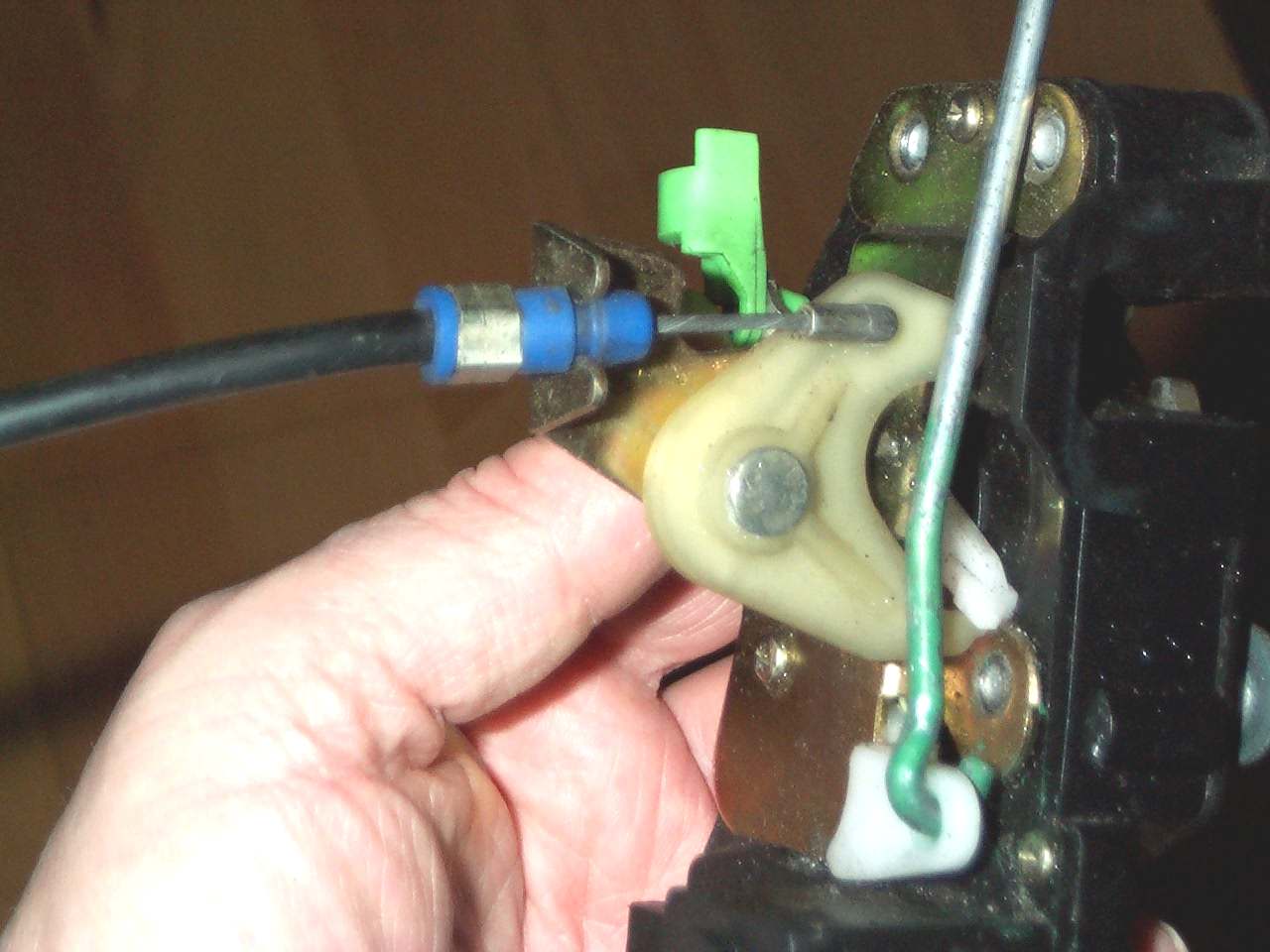

	Z form .	The end is formed like a Z

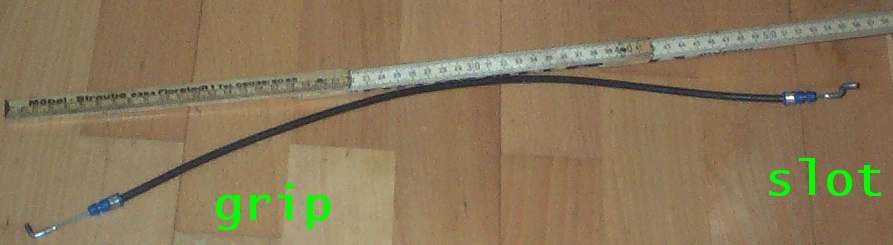

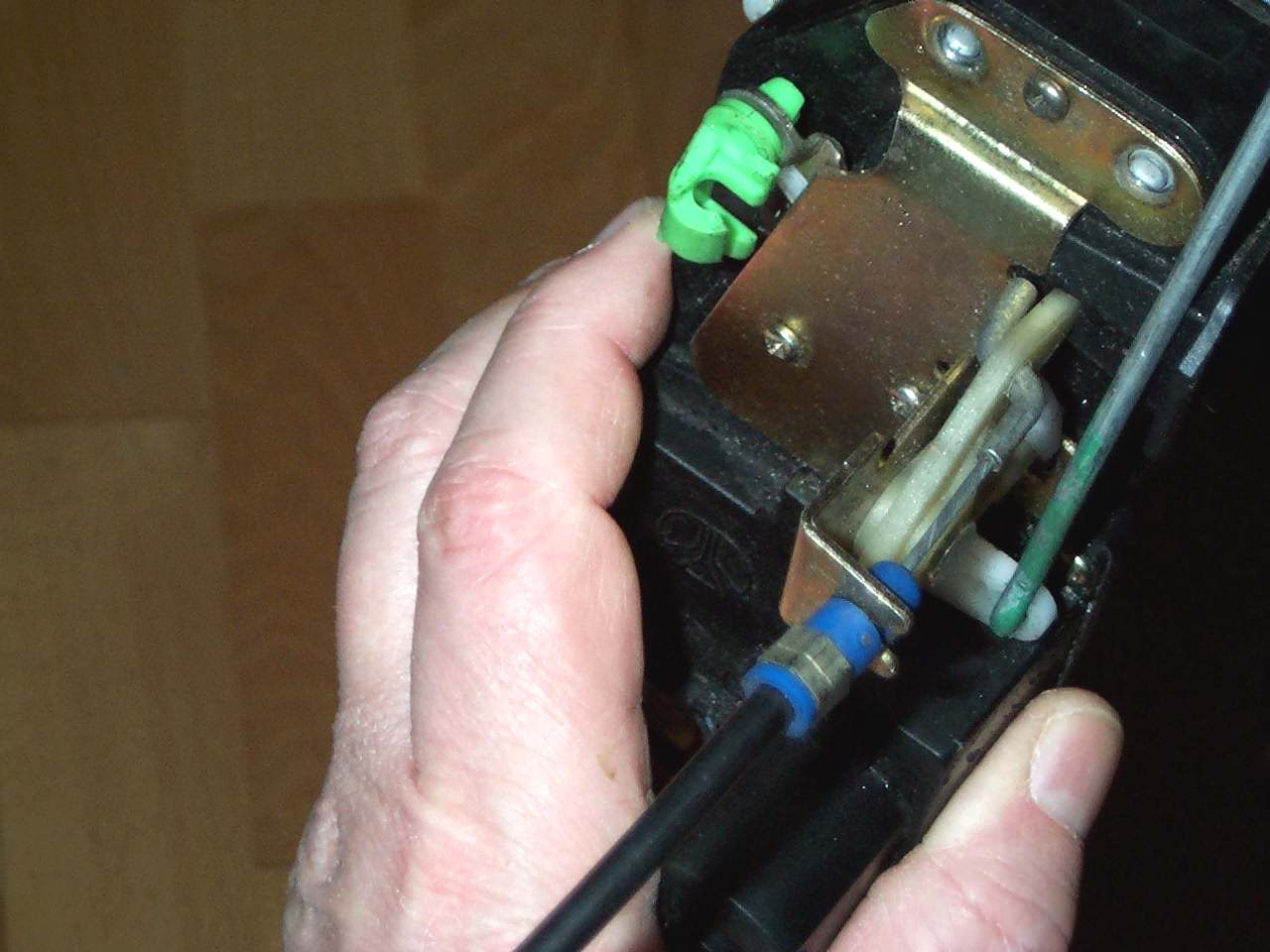

	Der Bowdenzug .	the bowden cable

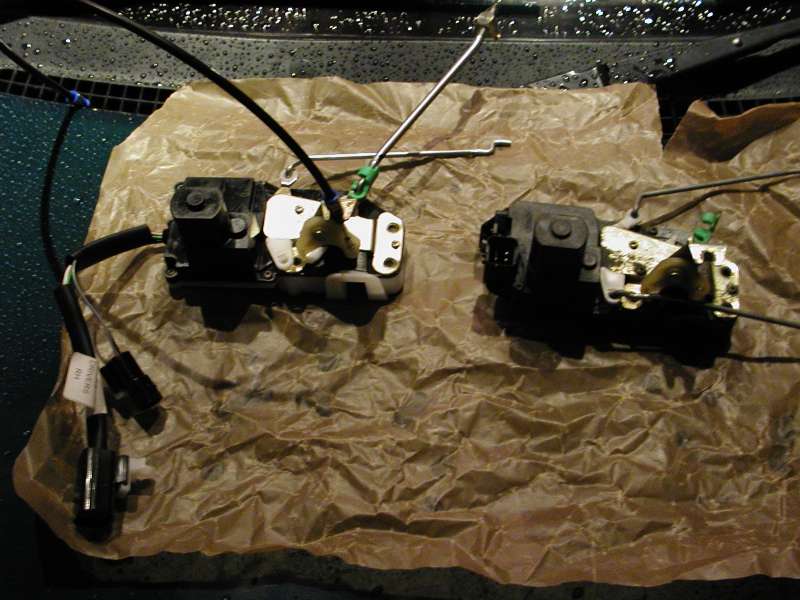

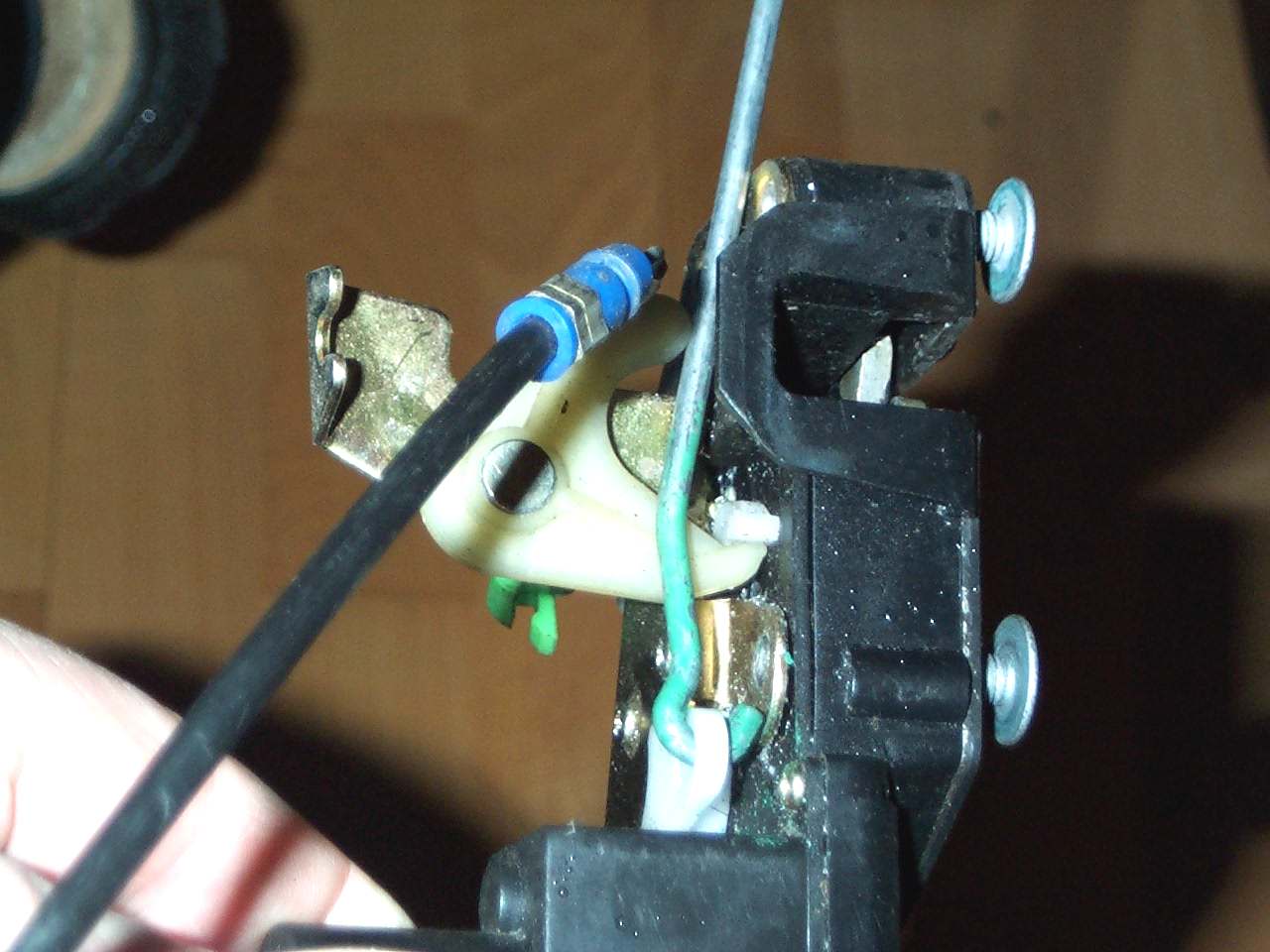

	So sieht es aus.	The look of the parts.

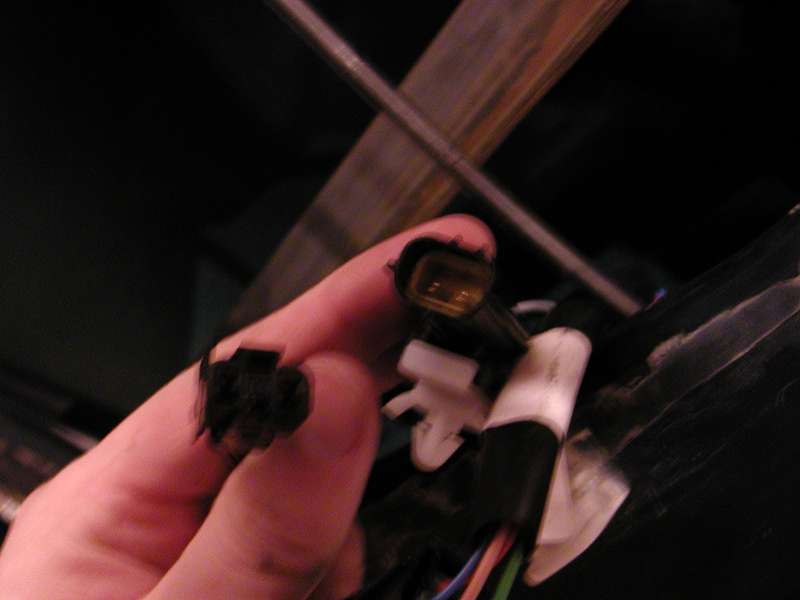

	alter und neuer Stecker	old design and new design connector

	.	.
	.	.

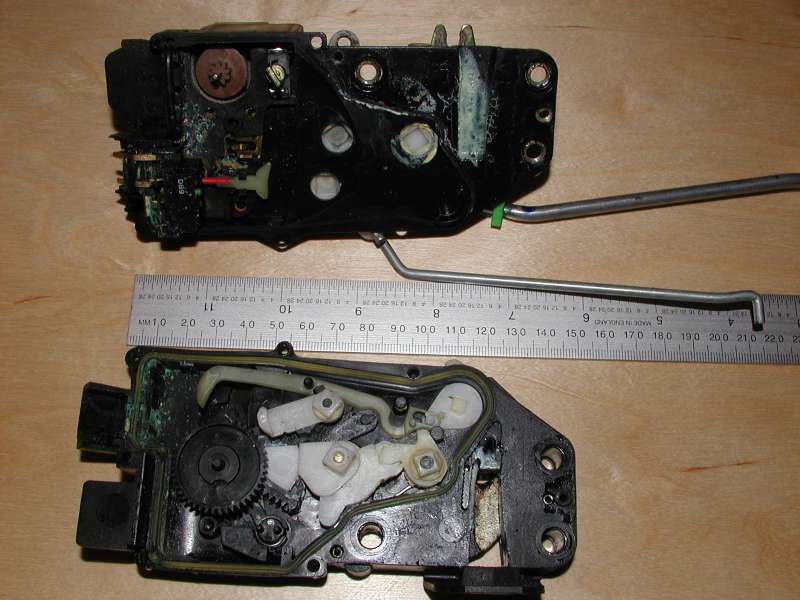

	.	open door lock

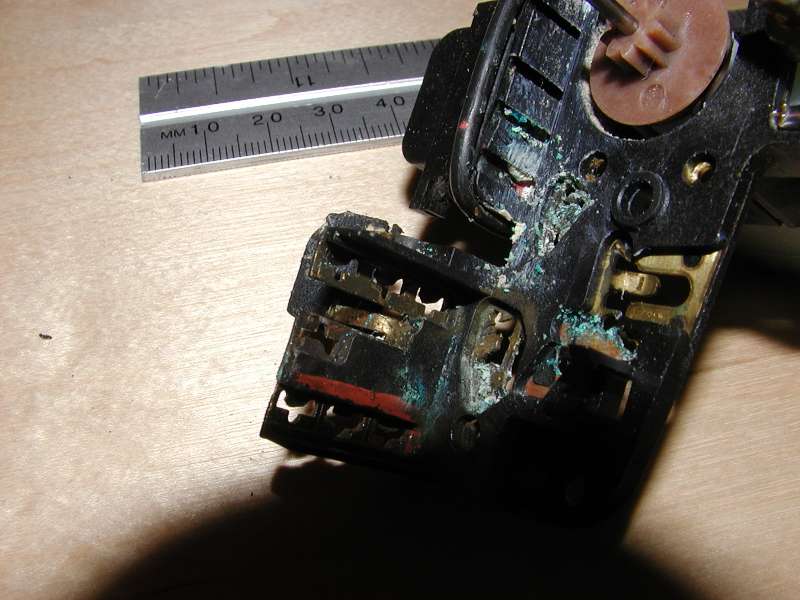

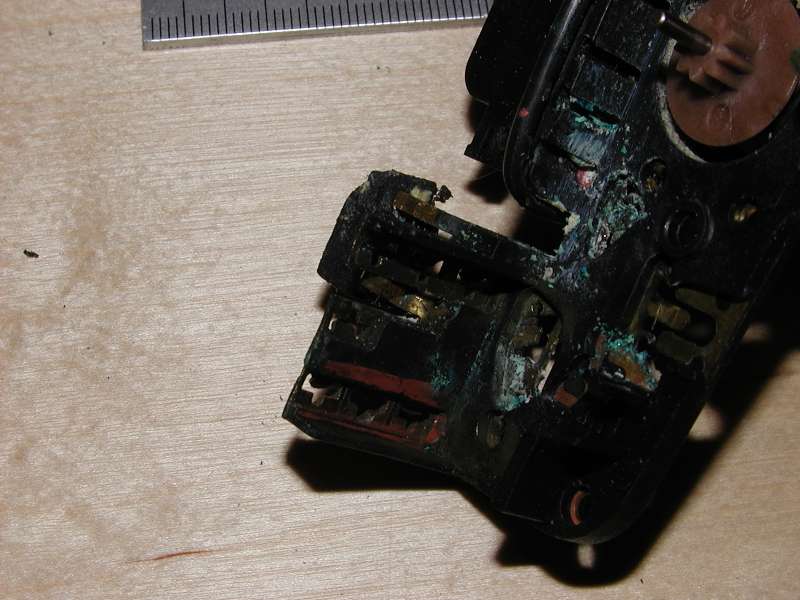

		switches location

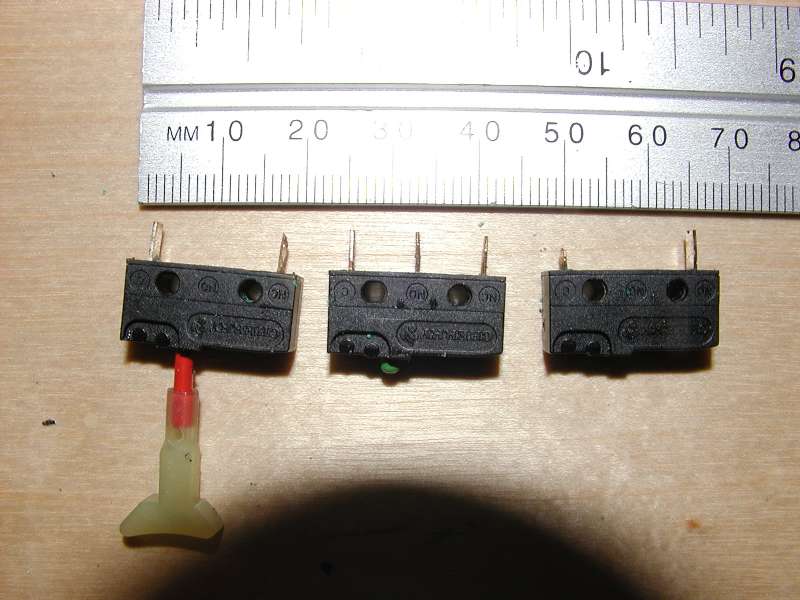

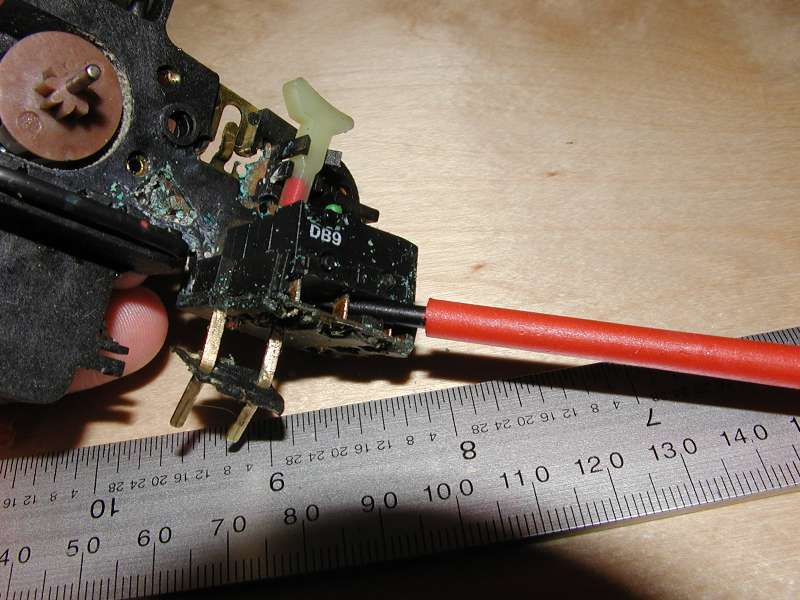

	Cherry switches DB9 PDF 1 Vielleicht passt Cherry Microschalter	3 of Cherry switches, spec PDF 1 One of with special pin. Non standard :(

		pics courtesy Will Munns
