P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |

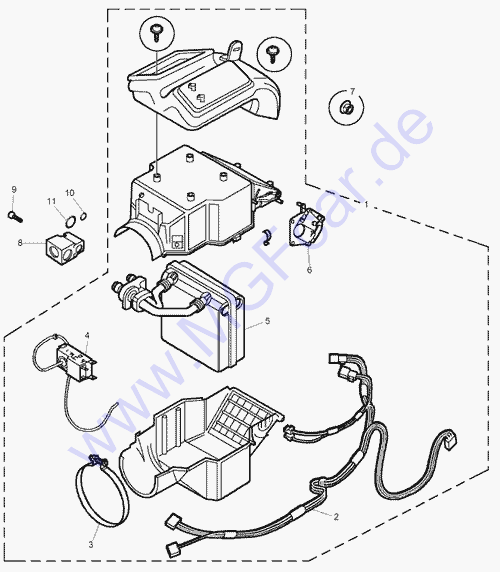

JQB101040 - Evaporator assembly
- air conditioning
- RHD -
superceeded by
JQB101090 |
|
WD024102 |
|
| 1 |
JQB101090 - Evaporator assembly
- air conditioning
- RHD - |
WD024103 |
XD511058 |
506,97 |
| 1 |
JQB101660 - Evaporator assembly
- air conditioning
- RHD - |
YD511059 |
|
443,48 |
| 1 |
JQB101050 - Evaporator assembly
- air conditioning
- LHD -
superceeded by
JQB101100 |
|
WD024102 |
|
| 1 |
JQB101100 - Evaporator assembly-air
conditioning
- LHD - |
WD024103 |
XD511058 |
470,09 |
| 1 |
JQB101670 - Evaporator assembly
- air conditioning
- LHD - |
YD511059 |
|
470,09 |
| 2 |
JGK100120 - Harness blower
- heater
- RHD - |
|
XD511058 |
40,41 |
| 2 |
JGK100250 - Harness blower
- heater
- RHD - |
YD511059 |
|
40,41 |
| 3 |
JQF100080 - Seal-joint heater/air
duct
- RHD - |
|
|
9,83 |
| 4 |
JQL100040 - Thermostat evaporator
- air conditioning
- RHD - |
|
|
79,80 |
| 5 |
JQQ100060 - Matrix-evaporator-R134a
automatic air conditioning
- RHD -
superceeded by
JQB101040
superceeded by
JQB101090
|
|
WD24102 |
270,86 |
| 5 |
JQQ100070 - Matrix
-evaporator-R134a automatic air conditioning
- LHD -
superceeded by
JQB101050
superceeded by
JQB101100 |
|
WD24102 |
270,86 |
| 6 |
JTM100020 - Motor assembly blower
- heater
- RHD - |
|
|
170,23 |
| 6 |
JTM100030 - Motor assembly blower
- heater
- LHD - |
|
|
157,85 |
| 7 |
AFU1822 - Nut
- M6
2 of
|
|
|
0,24 |
| 8 |
JQD100250 - Valve
- expansion evaporator
- air conditioning
|
|
|
105,51 |
| 9 |
FS106207 - Screw
- flanged head
- M6 x 20
|
|
|
0,31 |
| 10 |
JYX100150 - O ring
- 14mm
- evaporator to valve
|
|
|
0,26 |
| 11 |
JYX100160 - O ring
- small
- evaporator to valve
|
|
|
0,26 |
| 900 |
JQF100140 - Seal assembly
- evaporator/heater air conditioning
|
|
|
7,47 |
| 901 |
JQG100050 - Insulator
- tube
- drain evaporator-air conditioning
|
|
|
12,48 |
