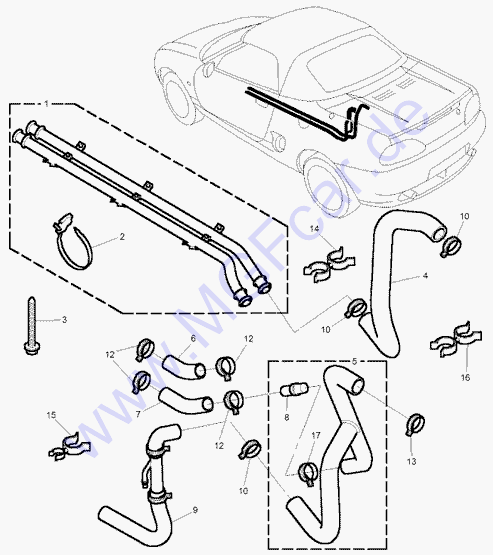

P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |
PEP102330 - Pipe assembly-cooling
system coolant
superceeded by
PEP102390
PEP102470 |
|
AD004176 |
|
| 1 |
PEP102390 - Pipe assembly-cooling system
coolant
superceeded by
PEP102470
|
AD004177 |
AD007258 |
|
| 1 |
PEP102470 - Pipe assembly-cooling system
coolant
Better use the SS type pipes from Satur, B&G or Rimmerbros
to prevent from corrosion.
PEP102470SS |
AD007259 |
|
34,30 |
| 1 |
PEP103280 - Pipe assembly-cooling system
coolant
- automatic CVT
the Steptronic ones have 5 additional brackets to support
one of the oil cooler pipes
|
|
|
30,01 |
| 2 |
YQR100750 - Clip
6 of
|
|
AD004176 |
0,49 |
| 3 |
FS108357A - Screw
underfloor pipes to body
- M8 x 35
|
|
|
0,45 |
| 4 |
PEH100820 - Hose to pipe
-coolant
- engine inlet
- Manual |
|
|
8,09 |
| 4 |
PEH101420 - Hose to pipe
- coolant
- engine inlet
- Automatic - |
|
YD520171 |
19,24 |
| 4 |
PEH000420 - Hose to pipe
- coolant
- engine inlet
- Automatic - |
YD520172 |
|
18,68 |
| 5 |
PEH000090 - Hose assembly
- engine to radiator
|
|
|
21,14 |
| 6 |
PEH100850 - Hose
- heater return coolant
manual
|
|
|
6,36 |
| 6 |
PEH101720 - Hose
- heater return coolant
- automatic CVT
|
|
|
25,62 |
| 7 |
PEH100900 - Hose
- outlet to pipe coolant
- manual
|
|
|
5,02 |
| 7 |
PEH000360 - Hose
- outlet to pipe coolant
- automatic CVT
|
|
|
5,64 |
| 8 |
PFF100040 - Adaptor
- pipe coolant
2 of
|
|
|
1,44 |
| 9 |
PEH000370 - Hose
- outlet to pipe coolant
- engine inlet
superceeded by
PEH101730 NLA use PEH000090
|
|
|
NLA |
| 10 |
PYC101380 - Clip-hose
to underfloor pipe
2 of
|
|
|
1,12 |
| 10 |
PYC101380 - Clip-hose
pump to engine pipe
|
|
|
1,12 |
| 11 |
PYC101540 - Clip-hose
heater to heater pipe
2 of
|
|
|
1,68 |
| 11 |
PYC101780 - Clip-hose
- heater return to bypass |
|
4D619886 |
1,20 |
| 11 |
PYC101540 - Clip-hose
- heater return to bypass
|
4D619887 |
|
1,68 |
| 11 |
PYC101780 - Clip-hose
- heater feed to engine outlet
|
|
4D619886 |
1,20 |
| 11 |
PYC000560 - Clip-hose
- heater feed to engine outlet |
4D619887 |
|
1,19 |
| 11 |
PYC102300 - Clip-hose
- heater hose to bypass
- automatic CVT |
|
YD522936 |
1,20 |
| 11 |
PYC102910 - Clip-hose
- heater hose to bypass
- automatic CVT
|
YD522937 |
4D619886 |
1,19 |
| 11 |
PYC101540 - Clip-hose
- heater hose to bypass
- automatic CVT |
4D619887 |
|
1,68 |
| 11 |
PYC102300 - Clip-hose
- heater feed to engine outlet
- automatic CVT
|
|
YD522936 |
1,20 |
| 11 |
PYC102910 - Clip-hose
- heater feed to engine outlet
- automatic CVT
|
YD522937 |
4D619886 |
1,19 |
| 11 |
PYC000560 - Clip-hose
- heater feed to engine outlet
- automatic CVT
|
4D619887 |
|
1,19 |
| 12 |
PYC101400A - Clip-band
- heter to hose and pipe
2 of
|
|
|
0,73 |
| 13 |
CN100459 - Clip-hose
- oulet to engine
|
|
|
1,12 |
| 13 |
PYC102320 - Clip-hose
- engine outlet to hose
|
YD523791 |
|
1,25 |
| 14 |
PYC101740 - Clip-swivel
- hose to hose
|
|
4D619956 |
1,40 |
| 14 |
PYC101740 - Clip-swivel
- hose to hose
- automatic CVT
|
4D619957 |
|
1,40 |
| 15 |
PYC101770 - Clip-swivel
- hose to heater hose
|
|
|
1,44 |
| 16 |
PYC101750 - Clip-swivel
- hose to rear selector cable
|
|
|
7,27 |
| 17 |
PYC101520 - Clip-hose
|
|
|
1,12 |
| 900 |
PEH101740 - Hose
- bypass to heater coolant
- except VVC
|
|
|
5,99 |
| 901 |
PYD000050 - Tie-cable
- hose to hose
|
|
|
1,40 |
