Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

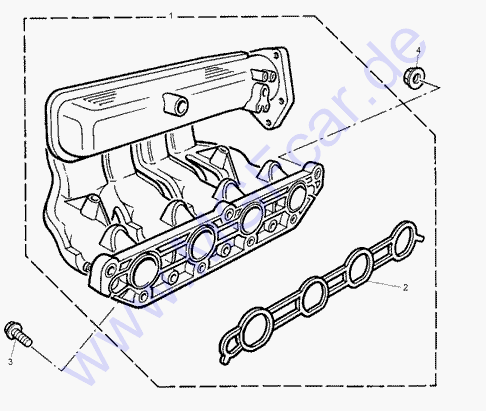

LKB107560 - Manifold assembly
- engine inlet
|
|
1D |
138,69 |
| 1 |
LKB109290 - Manifold assembly
- engine inlet
- automatic CVT
|
|
1D |
100,93 |
| 1 |
LKB109600 - Manifold assembly
- engine inlet
- automatic CVT
blanked A.I.T. sensor port
superceeded by
|
|
1D |
100,93 |
| 2 |
LKG000170 - Gasket-inlet manifold
- black coloured
superceeded by
LKJ101110
|
|
|
|
| 2 |
LKJ101110 - Gasket-inlet manifold
green coloured
|
|
1D |
5,13 |
| 3 |
FB108065 - Bolt
|
|
1D |
0,35 |
| 4 |
FN108045 - Nut-flange - M8
superceeded by
FN108041
|
|
|
0,38 |
| 4 |
FX108047 - Nut-flange - M8
- inlet manifold to cylinder head
7 of
|
|
|
0,44 |
| 902 |
TE108065M - Stud - M8 x 25
inlet manifold
7 of
|
|
|
0,42 |
| 903 |
LZN100220 - Insert-press in
|
|
|
4,38 |
|
|
|
 |
