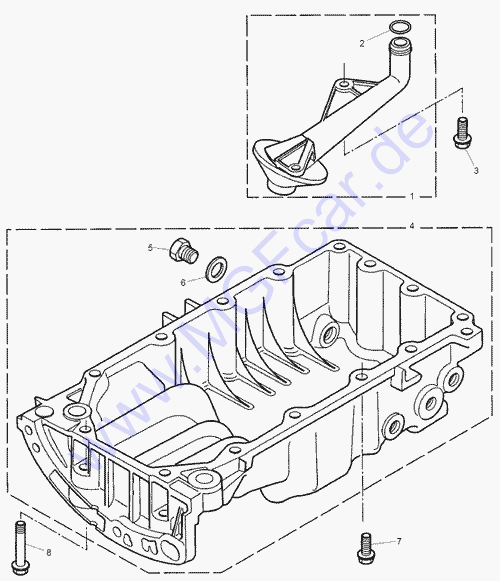

P/N, description, qty needed.
|
from |
to |
GBP |
1 |
LSP10027 - Strainer and pipe assembly
- oil
|
|
|
9,75 |
2 |
CDU2206 - O ring
- oil suction pipe seal
|
|
|
0,68 |
3 |
FS106201 - Screw-flanged head
- M6 x 20
superceeded by
FS106207 |
|
|
|
3 |
FS106207 - Screw-flanged head
- M6 x 20
2 of |
|
|
0,30 |
4 |
LSB101870 - Sump assembly-engine oil
superceeded by
LSB1020400
superceeded by
LSB102040A
superceeded by
LSB000390 |
|
|
|
4 |
LSB102040 - Sump assembly-engine oil
superceeded by
LSB102040A
superceeded by
LSB000390 |
|
|
98 |
5 |
LSF100040 - Plug
- sump assembly oil drain
thread M14 x 1,5 mm
Socket SW15 |
|
|
1,37 |
6 |
ALU1403 - Washer-sealing
- 14mm
|
|
|
0,73 |
7 |
FT108255 - Screw-flanged head
- M8 x 25
12 of |
|
|
0,95 |
8 |
FC108125 - Bolt-flanged
head
- M8 x 60
2 of |
|
|
0,95 |
903 |
LVV000108EVA - Kit-bearing ladder liquid
gasket replacement
- 25ml lube |
|
|
11,63 |
