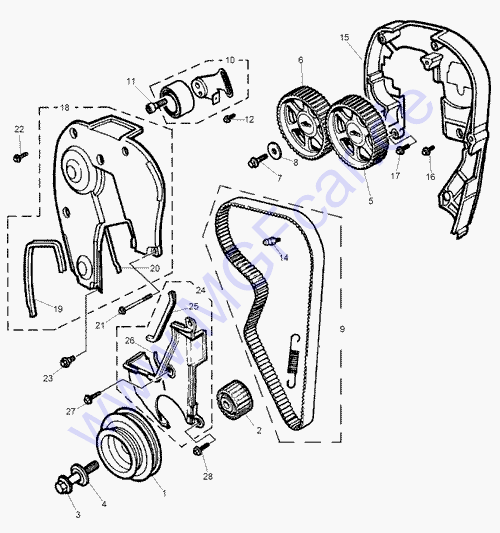

MG Cars | MGF - MG TF | Engine & Mountings | Engine 1800 | Timing Belt, Timing Belt Cover-VVC manual tensioning

Parts P/N, description, qty needed. from to GBP 1 LHG100500 - Pulley -crankshaft superceeded by LHG000010     60,40 2 LHH100480 - Gear-crankshaft timing drive     7,21 3 WAM4243 - Bolt-crankshaft pulley     1,93 4 LYF10051 - Washer     2,55 5 LHB101330 - Pulley-timing belt driven - exhaust     54,07 6 LHB101190 - Pulley-timing belt driven - inlet     16,20 7 SX110351 - Bolt (10.9! M10x??) superceeded by SX110350     0,70 8 LYF101180 - Washer superceeded by LYF000020     0,21 9 LHN100390 - Kit-timing belt - 143 teeth, 23mm wide (manual tensioning) - 143 teeth x 23mm - Lotus A11E6355S) & tensioner (OE Ref LHP10015 / CDU3558). - QH QTB526 - QH GTB9003XS/LHN100390     46,33 10 LHP10015 - Tensioner-timing belt - (manual tensioning) CDU3558     27,94 11 SS110251 - Capscrew - M10 x 25     0,69 12 FS106141 - Screw-flanged head - M6 x 14     0,38 14 WAM3885 - Bolt -timing belt tensioner pedestal     2,83 15 LJR103110 - Cover assembly -upper rear timing cover superceeded by LJR104760     10,39 15 LJR104760 - Cover assembly -upper rear timing cover     10,81 16 LYP10005 - Screw - M6 x 14     0,31 17 LYP10008 - Screw - M6 x 25     0,31 18 LJR103130 - Cover assembly -upper front timing belt superceeded by LJR104770     9,11 18 LJR104770 - Cover assembly-upper front timing belt     8,76 19 LJQ10008 - Seal     5,26 20 LJQ10003 - Seal-coolant pump     0,46 21 FB106075 - Bolt-flanged head - M6 x 35     0,83 21 FB106115 - Bolt-flanged head - M6 x 55     0,46 22 FS106165 - Screw-flanged head - M6 x 16 3 of     0,38 23 DBP1420 - Bolt-flanged head - M6 x 14     1,17 24 LJR10089 - Cover-lower front timing belt superceeded by LJR104350     8,87 24 LJR104350 - Cover-lower front timing belt     8,87 25 LJQ10007 - Seal     3,66 26 LJQ10001 - Seal     0,29 27 FS106165 - Screw-flanged head - M6 x 16     0,38 28 LYP10004 - Screw - M6 x 16 superceeded by LYG10015     0,25
