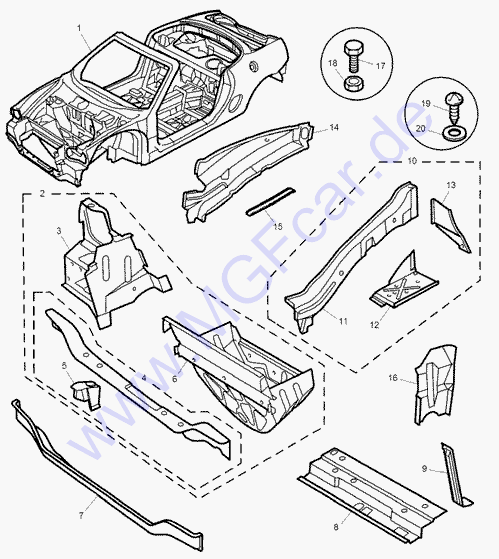

P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
AAC460010 - Body
- except Trophy
|
|
YD522573 |
4235,30 |
| 1 |
AAC460030 - Body
- except Trophy
superceded by
AAC460040
|
YD522574 |
2D600101 |
4111,94 |
| 1 |
AAC460040 - Body
- Trophy
superceded by
AAC460050
|
|
|
4111,94 |
| 1 |
AAC460050 - Body
- Trophy
|
|
|
7605,17 |
| 1 |
AAC460011 - Body
superceded by
AAC460012
|
2D600101 |
|
3879,19 |
| 2 |
ABB460020 - Bulkhead front assembly
|
|
|
233,02 |
| 3 |
ABH460030 - Headlamp mounting assembly
- LH
|
|
|
50,69 |
| 3 |
ABH460020 - Headlamp mounting assembly
- RH
|
|
|
50,69 |
| 4 |
ABU460330 - Bracket assembly
-front sidemember
- except Trophy
|
2D600101 |
|
21,14 |
| 5 |
ABU460170 - Bracket/weld nut assembly
-sidemember sub frame front
- except Trophy
- LH
|
|
YD522573 |
9,15 |
| 5 |
ABU460160 - Bracket/weld nut assembly
-sidemember sub frame front
- except Trophy
- RH
|
|
YD522573 |
9,15 |
| 6 |
ABB460030 - Bulkhead assembly
-spare wheel front
- except Trophy
|
|
YD522573 |
132,42 |
| 6 |
ABB460070 - Bulkhead assembly
-spare wheel front
|
2D600101 |
|
63,38 |
| 7 |
ABC460100 - Crossmember assembly
-lower
- except Trophy
|
|
YD522573 |
41,85 |
| 7 |
ABC460100 - Crossmember assembly
-lower
|
2D600101 |
|
41,85 |
| 8 |
ABG460100 - Platform & weld nut
assembly
-bonnet locking
- except Trophy
|
|
YD522573 |
55,91 |
| 8 |
ABG460100 - Platform & weld nut
assembly
-bonnet locking
|
2D600101 |
|
55,91 |
| 9 |
ABJ460040 - Strut assembly
-bonnet locking platform
- except Trophy
|
|
YD522573 |
7,46 |
| 9 |
ABJ460040 - Strut assembly
-bonnet locking platform
|
2D600101 |
|
7,46 |
| 10 |
ABE460060 - Sidemember assembly
-front - RH
- except Trophy
|
|
YD522573 |
142,62 |
| 10 |
ABE460070 - Sidemember assembly
-front - LH
- except Trophy
|
|
YD522573 |
142,62 |
| 10 |
ABE460180 - Sidemember assembly-front
- RH
Trophy
|
YD530689 |
|
148,95 |
| 10 |
ABE460190 - Sidemember assembly-front
- LH
Trophy
|
YD530689 |
|
148,95 |
| 10 |
ABE460200 - Sidemember assembly-front
- RH
|
2D600101 |
|
134,05 |
| 10 |
ABE460070 - Sidemember assembly-front
- LH
|
2D600101 |
|
142,62 |
| 11 |
ABE460160 - Sidemember
-front - RH
- except Trophy |
|
YD522573 |
23,12 |
| 11 |
ABE460170 - Sidemember
-front - LH
|
|
|
23,55 |
| 11 |
ABE460160 - Sidemember
-front - RH
- Trophy |
|
|
23,12 |
| 11 |
ABE460170 - Sidemember
-front - LH
- Trophy
|
|
|
23,55 |
| 11 |
ABE460160 - Sidemember
-front - RH
- Trophy |
YD530689 |
|
23,12 |
| 12 |
ABG460080 - Platform assembly
-spare wheel - RH
|
|
|
36,23 |
| 12 |
ABG460050 - Platform assembly
-spare wheel - LH
|
|
|
41,51 |
| 13 |
ABX460020 - Extension-lower front Suspension
reinforcement
- RH
|
|
|
8,26 |
| 13 |
ABX460030 - Extension-lower front Suspension
reinforcement
- LH
|
|
|
8,26 |
| 14 |
ABD460050 - Valance assembly - LH
|
|
|
116,32 |
| 14 |
ABD460040 - Valance assembly - RH
|
|
|
116,32 |
| 15 |
ABJ460030 - Strut
-spare wheel to dash
|
|
YD522573 |
6,73 |
| 16 |
AHN460020 - Closing-floor longitudinal
- RH
superceeded by
AHN460021
|
|
|
8,98 |
| 16 |
AHN460030 - Closing
-floor longitudinal - LH
superceeded by
AHN460031
|
|
|
8,98 |
| 17 |
FS106127 - Screw
-flanged head
- M6 x 12
4 of
|
|
|
0,38 |
| 18 |
FN106047 - Nut-flange
- M6
2 of
|
|
|
0,36 |
| 19 |
SH106161 - Screw
- M6 x 16
4 of
|
|
|
0,86 |
| 20 |
WA106041 - Washer-plain
4 of
|
|
|
0,38 |
| 900 |
CJM10006 - Buffer-stop
spare wheel well
|
|
|
0,85 |
