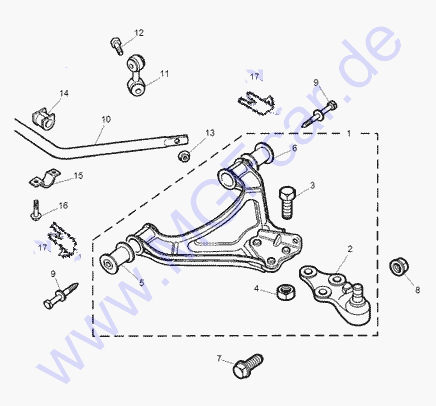

Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
RBJ101060 - Arm assembly-lower front
Suspension - RH
except Trophy
QH QSA1894S
|
|
2D600100 |
92,75 |
| 1 |
RBJ101070 - Arm assembly-lower
front Suspension - LH
except Trophy
QH QSA1893S
|
|
2D600100 |
92,75 |
| 1 |
RBJ000220 - Arm assembly-lower front
Suspension - RH
Trophy
|
|
2D600100 |
66,27 |
| 1 |
RBJ000230 - Arm assembly-lower front
Suspension - LH
Trophy
|
|
2D600100 |
66,27 |
| 1 |
RBJ000750 - Arm assembly-lower front
Suspension - LH
|
2D600101 |
|
92,75 |
| 1 |
RBJ000740 - Arm assembly-lower front
Suspension - RH
|
2D600101 |
|
92,75 |
| 2 |
RBK100410 - Joint-ball-lower front
Suspension - LH
except Trophy
GSJ497 and GSJ498
QSJ1893S and QSJ1894S
|
|
|
32,74 |
| 2 |
RBK100400 - Joint-ball-lower front
Suspension - RH
except Trophy
GSJ497 and GSJ498
QSJ1893S and QSJ1894S
|
|
|
32,74 |
| 3 |
FT108301 - Bolt
3 of
|
|
|
0,38 |
| 4 |
NY108051 - Nut
3 of
|
|
|
0,66 |
| 5 |
RBX10025 - Bush-front arm lower support
except Trophy
1 of
|
|
2D600100 |
9,67 |
| 5 |
RBX000770 - Bush-front arm lower support
2 of
|
2D600101 |
|
8,05 |
| 6 |
RBX10026 - Bush-rear arm lower support
except Trophy
1 of
superceeded by RBX000770
|
|
|
9,11 |
| 7 |
FB110101 - Bolt-flanged head - M10
x 50
|
|
2D600100 |
0,68 |
| 8 |
FX110041 - Locknut - M10
|
|
2D600100 |
0,83 |
| 9 |
RYG10048 - Bolt-nylon-patch
|
|
2D600100 |
2,13 |
| 10 |
RBL100631 - Bar-anti-roll front Suspension
|
|
2D600100 |
35,41 |
| 10 |
RBL000230 - Bar-anti-roll front Suspension
|
2D600101 |
|
40,37 |
| 11 |
RBM100111 - Link assembly anti-roll
bar - LH
QH part number QLS3246S
|
|
2D600100 |
17,65 |
| 11 |
RBM100101 - Link assembly anti-roll
bar - RH
QH part number QLS3247S
|
|
2D600100 |
17,65 |
| 12 |
FB110111 - Bolt - M10 x 55
4 of
|
|
2D600100 |
0,68 |
| 13 |
FN110041 - Nut - M10
2 of
|
|
2D600100 |
0,71 |
| 14 |
RGX100440 - Bush-roll bar mounting
2 of
|
|
2D600100 |
5,43 |
| 15 |
RBU100101 - Bracket-clamp roll bar
mounting - front
2 of
|
|
2D600100 |
0,96 |
| 16 |
KYP10002 - Screw
2 of
|
|
2D600100 |
0,37 |
| 17 |
KYF100240 - Spacer
2 of
(to be mounted to the bushes outer side of the lower
arm) |
AD000506 |
|
1,02 |
|
|
|
 |
|
