Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

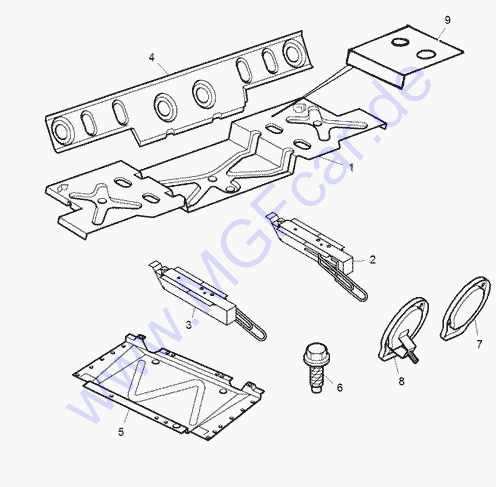

AGG460020 - Floor-luggage
|
|
2D600100 |
64,40 |
| 2 |
AFE460020 - Member longitudinal assembly
-luggage floor - RH
|
|
|
67,03 |
| 3 |
AFE460030 - Member longitudinal assembly
-luggage floor - LH
|
|
|
45,69 |
| 4 |
AFC460010 - Crossmember
-luggage floor front
|
|
|
30,95 |
| 5 |
ADR460260 - Reinforcement
-main floor centre
|
|
|
29,46 |
| 6 |
SYP10002 - Screw-dog point
22 of
|
|
WD037217 |
0,31 |
| 6 |
AYG100260 - Bolt-adhesive-patch
22 of
|
WD037218 |
|
0,79 |
| 7 |
JQY100080 - Plate-steering column aperture
blanking
|
|
|
4,88 |
| 8 |
JQY100100 - Plate assembly
- steering column air conditioning blanking
|
|
|
6,08 |
| 9 |
AFR460100 - Reinforcement-luggage floor
|
|
|
7,38 |
|
|
|
 |
