P/N, description, qty needed. |
from |
to |
GBP |

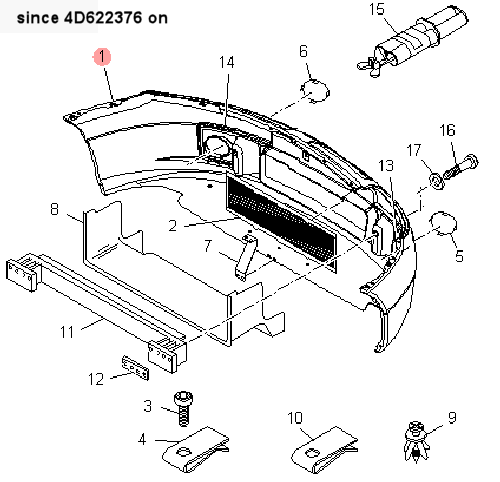

| 1 |
DPC000480LML - Cover assembly-painted
front bumper - Primer
Single part bumper with painted front section ??
|
2D600101 |
4D622375 |
211,30 |
| 1 |
DPC000770LML - Cover assembly-painted
front bumper - Primer
Bumper with black insert ??
|
4D622376 |
|
193,20 |
| 2 |
DQY000100PMD - Grille-front bumper
lower -
Black
|
2D600101 |
|
21,43 |
| 2 |
DQY000110MMM - Grille-front bumper
lower - bright
|
2D600101 |
|
37,07 |
| 3 |
DYP101150 - Screw-pan
10 of
|
2D600101 |
|
1,29 |
| 4 |
AK606075 - Nut-spring-u type
|
2D600101 |
|
0,57 |
| 5 |
DPF000200PMD - Panel-fog lamp blanking
- Black, RH
|
4D622376 |
|
4,25 |
| 5 |
DPF000160LML - Panel-fog lamp blanking
- RH
|
2D600101 |
4D622375 |
4,08 |
| 6 |
DPF000210PMD - Panel-fog lamp blanking
- Black, LH
|
4D622376 |
|
4,25 |
| 6 |
DPF000170LML - Panel-fog lamp blanking
- LH
|
2D600101 |
4D622375 |
4,08 |
| 7 |
DPG000120 - Strap-mounting-front bumper
|
2D600101 |
|
1,31 |
| 8 |
DXJ000020 - Duct-air-front bumper
- Less air conditioning |
2D600101 |
|
20,59 |
| (9) |
DCP4229 - Scrivet
- Less air conditioning
superceeded by
KYC100020
Schraubniet
use Sciffy 113108059902
or Ettinger 72.11.880
|
2D600101 |
|
1,01 |
| 10 |
DYC000220 - Clip-spring steel
- Less air conditioning |
2D600101 |
|
0,45 |
| 11 |
DPE100431 - Armature assembly-front
bumper
|
2D600101 |
|
75,56 |
| 12 |
ACZ460031 - Shim-armature mounting
- 2.0mm thick - between armature and body
|
2D600101 |
|
4,18 |
| 13 |
DPL000280 - Bracket-Front Bumper Fog
Lamp Mtg - RH
|
2D600101 |
4D622375 |
NLA |
| 13 |
DPL000180 - Bracket
-Front Bumper Fog Lamp Mtg - RH
Notice: this bracket can be mounted to older TF with adhesive
only
|
4D622376 |
|
|
| 14 |
DPL000290 - Bracket-Front Bumper Fog
Lamp Mtg - LH
|
2D600101 |
4D622375 |
NLA |
| 14 |
DPL000190 - Bracket-Front Bumper Fog
Lamp Mtg - LH
Notice: this bracket can get mounted to older TF with
adhesive only
|
4D622376 |
|
|
| (15) |
DYM000020 - Cartridge-Adhesive
|
2D600101 |
4D622375 |
7,28 |
| 16 |
ALR6871 - Bolt -
M10 x 25
|
|
|
0,64 |
| (17) |
DYF100780 Washer-plain-thick
- bumper to armature
superceeded by RoHS compliant
DYF000200 |
|
5D639633 |
0,32 |
| 901 |
DYP101510 - Screw-flanged head
- M6 x 14
- fog lamp to bracket
|
4D 622376 |
|
0,47 |
