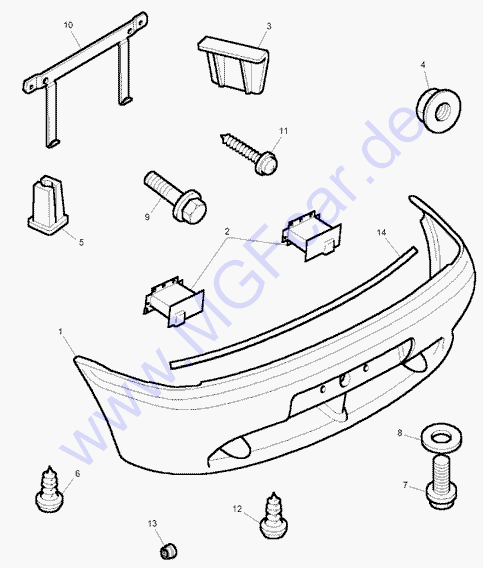

Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
DQC101150LML - Cover assembly
-painted rear bumper
- Primer
|
|
2D600100 |
191,53 |
| 2 |
DQG100630 - Bracket
-rear bumper mounting
- LH
|
|
|
23,11 |
| 2 |
DQG100620 - Bracket
-rear bumper mounting
- RH
|
|
|
22,22 |
| 3 |
DXH100010 - Spacer
-rear bumper side
2 of
|
|
|
0,74 |
| 4 |
FN108047 - Nut-flange
- M8
|
|
|
0,36 |
| 5 |
OYH003426EVA - Nut-lokut
2 of
|
|
|
|
| 6 |
DYP10035 - Screw
-self tapping AB
2 of
|
|
|
0,93 |
| 7 |
SH110207 - Screw
- M10 x 20
2 of
|
|
|
0,39 |
| 8 |
WJ110007 - Washer
- bumper to body
- M10
2 of
|
|
|
0,31 |
| 9 |
FB108091 - Bolt
- M8 x 45
8 of
|
|
|
0,83 |
| 10 |
DRM100080 - Bracket
-licence plate backplate mounting
(most useless ;-)
|
|
|
35,77 |
| 11 |
XYP10005 - Screw-point
2 of
|
|
|
0,38 |
| 12 |
FS106257 - Screw-flanged head
- M6 x 25
2 of
|
|
|
0,38 |
| 13 |
ZKC2228 - Nut
2 of
|
|
|
0,47 |
| 14 |
DZB100220 - Seal
|
|
|
1,97 |
|
|
|
 |
