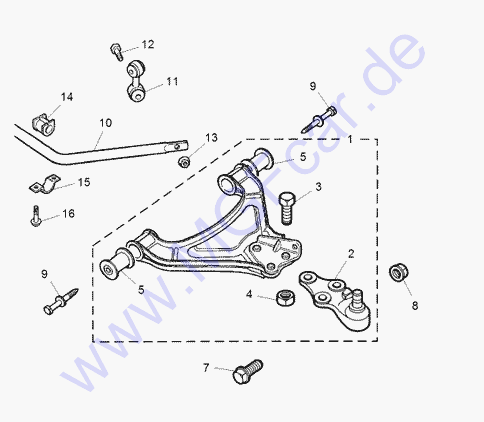

Parts |
 |
P/N, description, qty needed.
|
from VIN |
to VIN |
GBP
|
| 1 |
RBJ000750 - Arm assembly
-lower front Suspension - LH
|
2D600101 |
|
92,75 |
| 1 |
500000525 - Arm assembly
-lower front Suspension - LH
|
LE85 85th Anniversary |
|
92,75 |
| 1 |
RBJ000740 - Arm assembly
-lower front Suspension - RH
|
2D600101 |
|
92,75 |
| 1 |
500000517 - Arm assembly
-lower front Suspension - RH
|
LE85 85th Anniversary |
|
92,75 |
| 2 |
RBK100410 - Joint-ball
-lower front Suspension
- LH
GSJ497 and GSJ498
QSJ1893S and QSJ1894S
|
|
|
32,74 |
| 2 |
RBK100400 - Joint-ball
-lower front Suspension
- RH
GSJ497 and GSJ498
QSJ1893S and QSJ1894S
|
|
|
32,74 |
| 3 |
FT108301 - Bolt
|
|
|
0,39 |
| 4 |
NY108051 - Nut
|
|
|
0,68 |
| 5 |
RBX000770 - Bush-front arm lower support
|
|
|
9,39 |
| 7 |
FB110101 - Bolt-flanged head
- M10 x 50
|
|
|
0,70 |
| 8 |
FX110041 - Locknut
- M10
|
|
|
0,86 |
| 9 |
RYG10048 - Bolt-nylon-patch
|
|
|
2,20 |
| 10 |
RBL000230 - Bar-anti-roll front Suspension
|
2D600101 |
3D617816 |
40,37 |
| 10 |
RBL000231 - Bar-anti-roll front Suspension
|
3D617817 |
5D640464 |
31,58 |
| 10 |
RBL000232 - Bar
-anti -roll front Suspension
|
5D640461 |
|
31,58 |
| 10 |
RBL000280 - Bar
-anti -roll front Suspension
|
??? |
|
31,58 |
| 10 |
500000503 - Bar
-anti -roll front Suspension
|
LE85 85th Anniversary |
|
31,58 |
| 11 |
RBM100111 - Link assembly anti-roll
bar - LH
QH part number QLS3246S
|
|
3D617816 |
17,65 |
| 11 |
RBM100101 - Link assembly anti-roll
bar - RH
QH part number QLS3247S
|
|
3D617816 |
17,65 |
| 11 |
RBM000170 - Link assembly anti-roll
bar
|
3D617817 |
|
17,58 |
| 11 |
RBM000171 - Link assembly
anti-roll bar
|
|
|
12,70 |
| 11 |
500000516 - Link assembly anti-roll bar
|
LE85 85th Anniversary |
|
17,58 |
| 12 |
FB110111 - Bolt
- M10 x 55
|
|
|
0,70 |
| 13 |
FN110041 - Nut
- M10
|
|
|
0,73 |
| 14 |
RGX100440 - Bush-roll bar mounting
|
|
5D640434 |
5,64 |
| 14 |
RGX100441 - Bush
-roll bar mounting
|
5D640434 |
|
5,64 |
| 15 |
RBU100101 - Bracket-clamp roll bar
mounting - front
|
|
|
0,99 |
| 16 |
KYP10002 - Screw
|
|
|
0,38 |
| 17 |
500000574 - Spacer
|
LE85 85th Anniversary |
|
0,38 |
| 18 |
RPY000080 - Washer
|
LE85 85th Anniversary |
|
3 |
| 19 |
FB108137 - Bolt flanged head |
LE85 85th Anniversary |
|
|
| 20 |
500000540 Bracket - LH, mounting support
|
LE85 85th Anniversary |
|
|
| 20 |
500000509 Bracket - RH, mounting support
|
LE85 85th Anniversary |
|
|
|
|
|
 |
|
