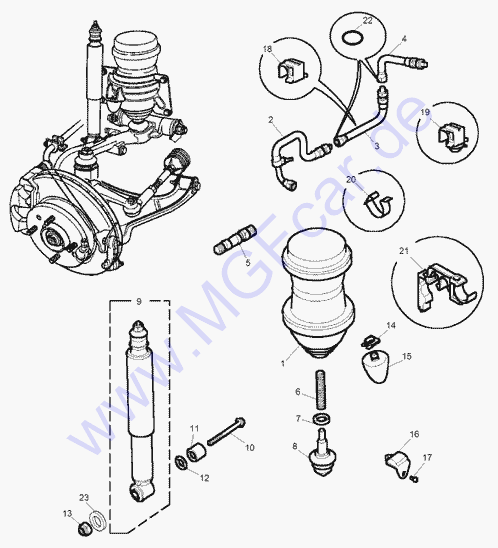

Parts |
|
P/N, description, qty needed.
|
from |
to |
GBP |
1 |
RNK100070 - Hydragas unit-damped front
- except Trophy
|
|
2D600100 |
131,45 |
1 |
RNK000010 - Hydragas unit-damped front
- Trophy |
YD525704 |
2D600100 |
131,45 |
2 |
RNP100190 - Pipe assembly-interconnect
front to rear - LH, front
- except Trophy
|
|
2D600100 |
43,37 |
2 |
RNP000070 - Pipe assembly-interconnect
front to rear - LH, front
- Trophy |
YD525704 |
2D600100 |
43,37 |
2 |
RNP100180 - Pipe assembly-interconnect
front to rear - RH, front
- except Trophy
|
|
2D600100 |
43,37 |
2 |
RNP000060 - Pipe assembly-interconnect
front to rear - RH, front
- Trophy
|
YD525704 |
2D600100 |
43,37 |
3 |
RNP100210 - Pipe assembly-interconnect
front to rear - LH, intermediate
|
|
2D600100 |
43,37 |
3 |
RNP100200 - Pipe assembly-interconnect
front to rear - RH, intermediate
|
|
2D600100 |
43,37 |
4 |
RNP100162 - Pipe assembly-interconnect
front to rear - RH, rear
- except Trophy
|
|
2D600100 |
35,26 |
4 |
RNP100172 - Pipe assembly-interconnect
front to rear - LH, rear
- except Trophy
|
|
2D600100 |
35,26 |
4 |
RNP100370 - Pipe assembly-interconnect
front to rear - LH, rear
- except Trophy
|
YD517619 |
2D600100 |
32,67 |
4 |
RNP000110 - Pipe assembly-interconnect
front to rear - LH, rear
- Trophy
|
YD525704 |
2D600100 |
32,96 |
4 |
RNP000100 - Pipe assembly-interconnect
front to rear - RH, rear
- Trophy
|
YD525704 |
2D600100 |
32,96 |
5 |
13H1705 - Valve assembly hydragas
|
|
2D600100 |
5,61 |
6 |
NAM9013 - Spring-coil
|
|
2D600100 |
0,31 |
7 |
RPL100080 - Spacer - 2.3mm
|
|
2D600100 |
0,74 |
7 |
NAM3432 - Spacer - 3.6mm
|
|
2D600100 |
0,68 |
8 |
RHF100070 - Joint-front & rear
Suspension knuckle
|
|
2D600100 |
20,16 |
9 |
RNB000260 - Damper assembly front
Alternative Bilstein 24-025287 ( BE5-2528 )
or KYP Damper 343416
or TRW JGT411T
|
|
2D600100 |
61,90 |
10 |
FB110221 - Bolt
|
|
2D600100 |
1,34 |
11 |
RNG10001 - Spacer
obsolete. Measures D=19mm, H=16mm d=10.5mm
|
|
2D600100 |
0,73 |
12 |
NAM1290 - Washer-cup
- between damper bush and upper arm
|
|
2D600100 |
0,40 |
13 |
GHF233 - Locknut
|
|
2D600100 |
NLA |
14 |
RBZ10001 - Clip-spring steel
front/rear damper bump stop
|
|
2D600100 |
0,31 |
15 |
NAM9226 - Stop-front & rear damper
bump
|
|
2D600100 |
7,80 |
16 |
2A4267 - Stop-front/rear Suspension
rebound
|
|
2D600100 |
6,63 |
17 |
13H2776 - Screw
|
|
2D600100 |
|
18 |
NAM9223 - Retainer
hydragas pipe to body
|
|
2D600100 |
0,85 |
19 |
PRC6525A - Clip
|
|
2D600100 |
0,35 |
20 |
ADU8705 - Clip-spring steel
|
|
2D600100 |
0,31 |
21 |
SYC100632 - Clip
hydrolastic pipe/brake pipes
superceded by SYC100820
|
|
AD002882 |
1,31 |
21 |
SYC100820 - Clip
hydrolastic pipe/brake pipes
|
AD002883 |
2D600100 |
1,15 |
22 |
RYX100220 - O ring
hydragas pipe union
|
|
2D600100 |
1,75 |
23 |
RYF100430 - Washer-cup
- between damper bush and nut
|
XD507465 |
2D600100 |
5,67 |
900 |
GZS1486
VDS000030
Hydrolastic fluid |
|
|
|
|
|
|
|
