Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

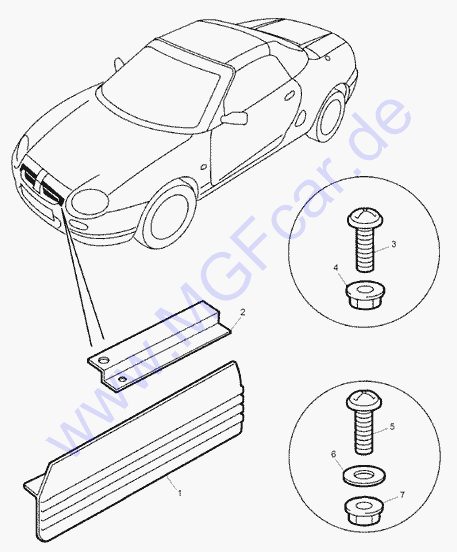

KGY100090 - Dam-front subframe air
superceeded by
KGY000020
|
|
3D617574 |
|
| 1 |
KGY000020 - Dam-front subframe air
|
3D617575 |
|
10,04 |
| 2 |
KGY100060 - Bracket-front subframe
|
|
3D617574 |
9,01 |
| 3 |
FS106121P - Screw - patch lock
|
|
3D617574 |
|
| 4 |
FN106041 - Nut-flange - M6
superceeded by
FN106047
|
|
3D617574 |
|
| 5 |
FS106161 - Screw-flanged head - M6
x 16
superceeded by
FS106167
|
|
3D617574 |
|
| 5 |
WYG10012 - Screw-flanged head - M6
x 35
|
3D617575 |
|
0,82 |
| 6 |
WJ110007 - Washer
|
|
|
0,30 |
| 7 |
NV110041 - Nut-flange - M10
|
|
|
0,42 |
|
|
|
 |
