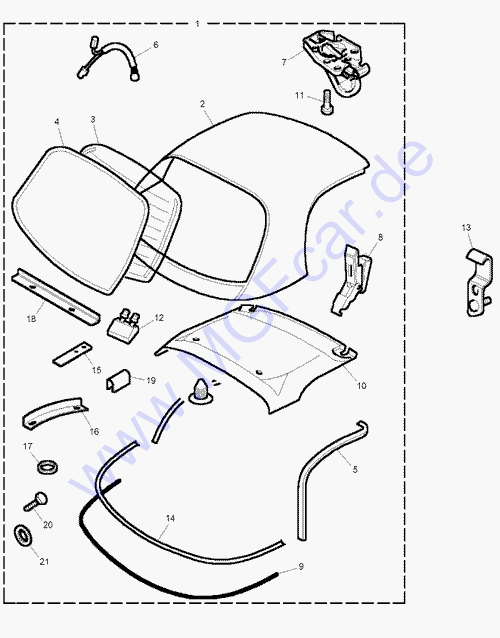

P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
DXU000060LML - Hardtop assembly - Primer
|
YD531765 |
|
1327,50 |
| 1 |
DXU000060LQW - Hardtop assembly - Anthracite
Superceeded by DXU000060LML
|
YD531765 |
NLA |
|
| 1 |
DXU000060HQM - Hardtop assembly - Aquamarine
Green
80th Anniversary
|
NLA |
|
1497 |
| 1 |
DXU000060PDA - Hardtop assembly - Black
|
NLA |
WD027767 |
|
| 1 |
DXU100100PDA - Hardtop assembly - Black/Mist
Superceeded by
DXU100100PDA DXU100160PDA DXU000080PDA DXU000060LML
|
WD027768 |
WD032470 |
NLA |
| 1 |
DXU100160PDA - Hardtop assembly - Black/Mist
DXU000080PDA DXU000060LML
|
WD032471 |
|
NLA |
| 1 |
DXU000060HFF - Hardtop assembly - British
Racing Green 3
|
YD531765 |
NLA |
1497 |
| 1 |
DXU000060GDH - Hardtop assembly - Calypso
Gold
|
|
|
NLA |
| 1 |
DXU000060NDJ - Hardtop assembly - Dover
White
|
|
|
NLA |
| 1 |
DXU000060HFN - Hardtop assembly -
Le Mans Green
|
YD531765 |
|
1497 |
| 1 |
DXU000060CBT - Hardtop assembly - Nightfire
Red 3
|
|
|
NLA |
| 1 |
DXU000060PBT - Hardtop assembly - Pearl
Black
|
|
|
NLA |
| 1 |
DXU000060PMF - Hardtop assembly - Raven
Black
|
|
|
NLA |
| 1 |
DXU000060JFM - Hardtop assembly - Royal
Blue
|
|
|
NLA |
| 1 |
DXU000060CMU - Hardtop assembly - Solar
Red
|
YD531765 |
|
1497 |
| 1 |
DXU000060MBB - Hardtop assembly - Starlight
Silver
|
|
|
NLA |
| 1 |
DXU000060JFV - Hardtop assembly - Trophy
Blue
|
|
|
NLA |
| 1 |
DXU000060FAR - Hardtop assembly - Trophy
Yellow
|
YD531765 |
|
1497 |
| 1 |
DXU000060LEF - Hardtop assembly - X
Power Grey
|
|
|
NLA |
| 2 |
DXU100020PMA - Hardtop assembly-moulding
- Black
|
|
WD032470 |
|
| 2 |
DXU100140PMA - Hardtop assembly-moulding
- Black
|
WD032471 |
|
928 |
| 3 |
CQB101190 - Glass
- Green backlight
|
|
|
170,89 |
| 3 |
CQB101190 - Glass
- Green backlight
(assume lead free)
|
YD531765 |
|
170,89 |
| 4 |
CDB100180 - Weatherstrip-backlight
NLA
superceeded by
CDB100190
|
|
WD027767 |
|
| 4 |
CDB100190 - Weatherstrip-backlight
|
|
|
43 |
| 5 |
DSF101060PMD - Seal assembly-hardtop
- Black, RH, side
superceeded by
CDB101280PMD
|
|
WD027767 |
29,10 |
| 5 |
DSF101070PMD - Seal assembly-hardtop
- Black, LH, side
superceeded by
CDB101290PMD
|
|
WD027767 |
28,03 |
| 5 |
DSF101280PMD - Seal assembly-hardtop
- Black, RH, side
|
WD027768
&
WD032471 |
WD032470 |
29,39 |
| 5 |
DSF101290PMD - Seal assembly-hardtop
- Black, LH, side
|
WD027768
&
WD032471
|
WD032470 |
29,39 |
| 5 |
DSF000060PMD - Seal assembly-hardtop
- Black, RH, side
|
YD531765 |
|
46,58 |
| 5 |
DSF000070PMD - Seal assembly-hardtop
- Black, LH, side
|
YD531765 |
|
46,58 |
| 6 |
YMT100030 - Harness extension
|
|
|
40,85 |
| 7 |
DXW100110PMA - Catch assembly
-front header
- Black, LH
superceeded by
DXW100290PMA
|
|
WD027767 |
39 |
| 7 |
DXW100290PMA - Catch assembly
- front header
- Black, LH
|
|
|
43,93 |
| 7 |
DXW100100PMA - Catch assembly
-front header
- Black, RH
superceeded by
DXW100280PMA
|
|
WD027767 |
39 |
| 7 |
DXW100280PMA - Catch assembly
-front header
- Black, RH
|
|
|
43,93 |
| 8 |
DXW100040PMA - Catch assembly-rear
hoodwell - Black
|
|
WD027767 |
43,29 |
| 8 |
DXW100200PMA - Catch assembly-rear
hoodwell - Black
|
|
|
42,34 |
| 9 |
DSJ100420PMD - Finisher-hardtop lower
edge - Black
superceeded by DSJ100490PMD Finisher-
+ DSJ100500PMD moulding
|
|
WD027767 |
14,13 |
| 9 |
DSJ100490PMD - Finisher-hardtop lower
edge - Black
|
|
|
19,83 |
| 10 |
EDB102630LUM - Headlining assembly-roof
trim - Mist
|
|
|
158 |
| 10 |
EDB000400LUM - Headlining assembly-roof
trim
- Mist
|
YD531765 |
|
158 |
| 11 |
SB108204 - Screw-hexagon socket
- M8
6 of
|
|
|
0,48 |
| 12 |
DJU100010 - Block-hardtop spacer
|
|
YD531765 |
|
| 13 |
DUN100200
Plate assembly-hardtop B post mounting - RH - NLA
Superceeded by DUN100340
|
|
AD016120 |
|
| 13 |
DUN100210
Plate assembly-hardtop B post mounting - LH - NLA
Superceeded by DUN100350
|
|
AD016120 |
|
| 13 |
DUN100340
Plate assembly-hardtop B post mounting - RH -
|
AD016121 |
|
2,44 |
| 13 |
DUN100350
Plate assembly-hardtop B post mounting - LH -
|
AD016121 |
|
2,44 |
| 14 |
DSF101050PMD - Seal assembly-hardtop
- Black, rear
superceeded by
DSF101140PMD
|
|
WD032470 |
30,35 |
| 14 |
DSF101300PMD - Seal assembly-hardtop
- Black, rear
|
WD032471 |
|
24,26 |
| 15 |
DSZ100170 - Spacer-hardtop B post
2 of
|
WD032471 |
|
7 |
| 16 |
DSZ100150 - Spacer-hardtop B post
2 of
|
WD027768 |
|
7,01 |
| 17 |
EAM6543 - Washer-fibre
4 of
|
WD027768 |
|
0,29 |
| 18 |
DSZ100160 - Spacer-hardtop cantrail
2 of
|
WD027768 |
|
7,72 |
| 19 |
DSJ100500PMD - Finisher-hardtop moulding
- Black
2 of
|
|
WD032470 |
17,65 |
| 20 |
SH105251 - Bolt - M5
6 of
|
YD531765 |
|
0,39 |
| 21 |
WF105001 - Washer-starlock
2 of
|
WD027768 |
|
0,31 |
| 900 |
DYC101460 - Clip
2 of
|
|
WD032470 |
0,99 |
| 901 |
VUB101340
wall mount brackets |
|
|
|
