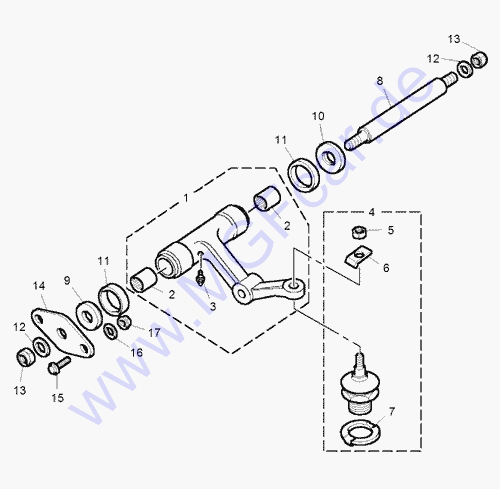

MG Cars | MGF - MG TF | Axles, Suspension, Drive Shafts, Wheels | Front Suspension | Front Upper Arm - MG TF

Parts
P/N, description, qty needed. from to
GBP
1 RBJ000270 - Arm assembly-upper front Suspension - LH
superceeded by
RBJ000850
  3D616122
1 RBJ000850 - Arm assembly-upper front Suspension - LH
3D616123   58,90
1 RBJ000260 - Arm assembly-upper front Suspension - RH
superceeded by
RBJ000840
  3D616122
1 RBJ000840 - Arm assembly-upper front Suspension - RH
3D616123   58,90
2 2A3497 - Bearing-needle roller
    1,51
3 LN10081 - Nipple-grease
    0,39
4 RBK000100 - Joint-ball-upper front Suspension (low version)

Cone 13mm
Thread: M34x1,5
(1 13/16" nut size) 46mm

looks like MGF part No. RBG000020 but isn't ! Its app. 5mm higher
superceeded by RBK000101
    16,06
5 RYH105610 - Nut
M12 x 1,25
    0,36
6 KYF100240 - Spacer
    1,31
7 NAM2470 - Washer-lock


0,37

8 RBR000020 - Shaft-upper support arm
    40,23
9 FAM7789 - Collar
    2,63
10 2A7324 - Washer-thrust - outer
  3D616122 3,75
10 RDB000010 - Washer-thrust - outer
3D616123   3,22
11 2A7327 - Seal
    0,18
11 RYX000030 - Seal
    0,08
12 FAM9267 - Washer-sealing - outer
    4,17
13 NV608041 - Nut
    1,09
14 2A4327 - Plate
    6,56
15 strong>FS106167 - Screw-flanged head
- M6 x 16
    0,38
16 WA112081
- Washer-plain
- M12
    0,36
17 FX106041 - Nut
- M6
    0,39
[ back ]
[ ]
[ ]
notice: parts prices are historic. Edition app. 2003. Today you pay about double and more for some of the rare parts
