P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |

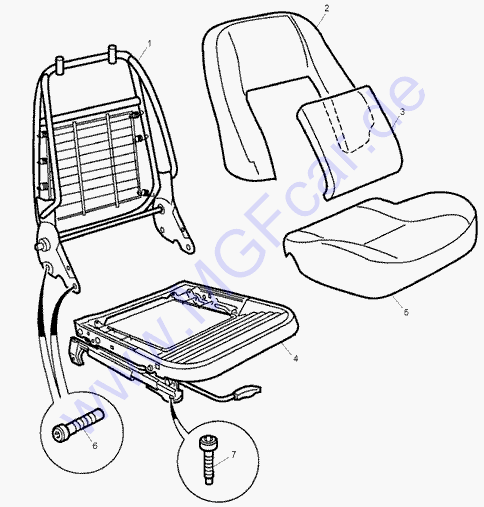

HFA103820 - Frame-front seat squab
- RH
|
|
XD511058 |
88,76 |
| 1 |
HFA103830 - Frame-front seat squab
- LH
|
|
XD511058 |
88,76 |
| 1 |
HFA105220 - Frame-front seat squab
- RH
|
YD511059
LE500 |
|
82,31 |
| 1 |
HFA105230 - Frame-front seat squab
- LH
|
YD511059
LE500 |
|
82,31 |
| 2 |
HGA100720 - Overlay-front seat squab
|
|
XD511058 |
23,70 |
| 2 |
HGA101060 - Overlay-front seat squab
- one piece
|
YD511059
LE500 |
|
13,49 |
| 3 |
HGA100730 - Overlay-front seat squab
centre
|
|
XD511058 |
13,98 |
| 4 |
HFB101360 - Frame assembly-manual front
seat cushion - RH
superceeded by
HFB102240
|
|
XD511058 |
107,88 |
| 4 |
HFB101370 - Frame assembly-manual front
seat cushion - LH
superceeded by
HFB102250
|
|
XD511058 |
111,98 |
| 4 |
HFB102240 - Frame assembly-manual front
seat cushion - RH
|
YD511059
LE500 |
|
120,88 |
| 4 |
HFB102250 - Frame assembly-manual front
seat cushion - LH
|
YD511059
LE500 |
|
119,88 |
| 5 |
HGB100640 - Overlay-front seat cushion
|
|
|
34,14 |
| 5 |
HGB101050 - Overlay-front seat cushion
|
YD511059
LE500 |
|
40,62 |
| 6 |
HYG10011 - Bolt-powerlok
superceeded by
HYG00030
|
|
|
0,48 |
| 6 |
HYG000030 - Bolt-powerlok
superceeded by
HYG100430
|
|
|
|
| 6 |
HYG100430 - Bolt-powerlok
8 of
|
|
|
0,49 |
| 7 |
DAM8413 - Screw-pan - M10 x 35
|
|
|
|
