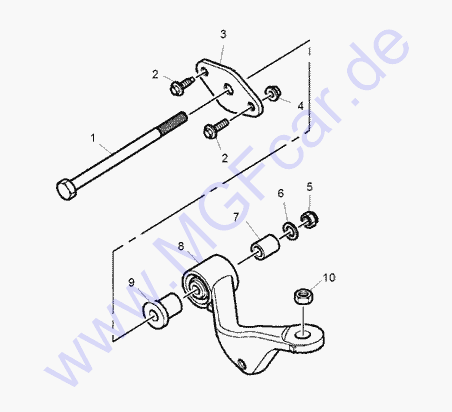

Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP
|
| 1 |
BH112321 - Bolt
- M12 x 160
|
2D600101 |
|
1,17 |
| 2 |
FS106161 - Screw-flanged head
- M6 x 16
superceeded by
FS106167
|
2D600101 |
|
0,23 |
| 3 |
2A4327 - Plate
|
2D600101 |
|
6,56 |
| 4 |
FX106041 - Nut - M6
|
2D600101 |
|
0,39 |
| 5 |
NY112041 - Locknut
- upper arm pivot
|
2D600101 |
|
0,79 |
| 6 |
WA112081 - Washer-plain - M12
|
2D600101 |
|
0,38 |
| 7 |
RLM000020 - Spacer
|
2D600101 |
4D638639 |
3,06 |
| 7 |
RLM000020 - Spacer
|
4D638640 |
|
3,06 |
| 8 |
RGD000650 - Link assembly
- LH
superceeded by
RGD000930
|
2D600101 |
3D616122 |
57,00 |
| 8 |
RGD000930 - Link assembly - LH
|
3D616123 |
|
57,00 |
| 8 |
500000336 - Link assembly - LH
|
SAIC MG TF |
|
57,00 |
| 8 |
RGD000640 - Link assembly
- RH
superceeded by
RDG000920
|
2D600101 |
3D616122 |
57,00 |
| 8 |
RGD000920 - Link assembly - RH
|
3D616123 |
|
57,00 |
| 8 |
500000336 - Link assembly - RH |
SAIC MG TF |
|
|
| 9 |
RLM000010 - Spacer
upper arm pivot
superceeded by
RLM000011
|
2D600101 |
4D638639 |
6,02 |
| 9 |
RLM000011 - Spacer
upper arm pivot
|
2D600101 |
4D638639 |
6,02 |
| 10 |
RYH105610 - Nut
upper balljoint
|
2D600101 |
|
0,36 |
|
|
|
 |
|
