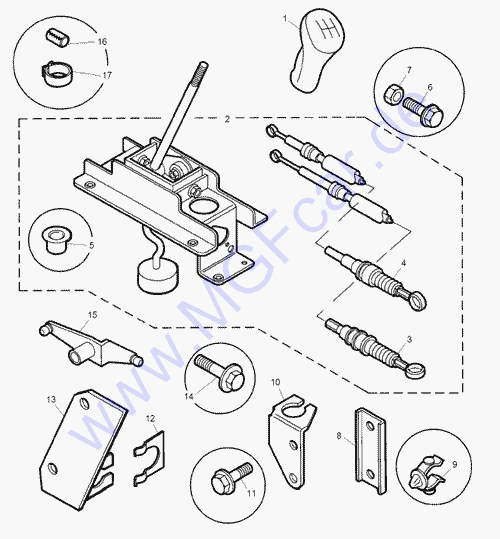

P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
UKJ100710MDC - Knob assembly-change
manual transmission - aluminum, bright
|
|
|
|
| 1 |
UKJ000030WCV - Knob assembly-change
manual transmission - Black/Alloy |
|
|
|
| 2 |
UKD000090 - Mechanism assembly-gearchange
manual transmission
|
|
|
|
| 2 |
UKD000160 - Mechanism assembly-gearchange
manual transmission
|
|
|
|
| 3 |
ULS100060 - Cable assembly-crossgate
(long) gear change-manual transmission
Crossgate cable, 190cm long, upper
Update 10/2011: ULS100060 NLA
ULS100061 - Cable assembly-selector (long)
|
|
|
86 |
| 4 |
ULS100070 - Cable assembly-selector
(short)
Gear change-manual transmission, gear change 147.5 cm
short (lower)
*How
to change*
Update 10/2011: ULS100070 NLA
ULS100071 - Cable assembly-selector (short)
|
|
|
90 |
| 4 |
ULS000010 - Cable assembly-selector
gear change-manual transmission, gear change
app 139 cm long
(fit to older only when other parts get changed aswell)
ask Mike S.
|
600101 |
|
86 |
| 5 |
PZN10003 - Insert-plain
|
|
|
|
| 6 |
FS106207 - Screw-flanged head - M6
x 20
|
|
|
|
| 7 |
FN106047 - Nut-flange - M6
|
|
|
|
| 8 |
UKU100400 - Bracket-cable abutment-gear
change manual transmission
|
|
|
|
| 9 |
PYC10020 - Clip
|
|
|
|
| 10 |
UKU100380 - Bracket-cable abutment-gear
change manual transmission
|
|
|
|
| 11 |
TYP10002 - Screw - M12, 30mm
|
|
|
|
| 12 |
UYC10006 - Clip-spring steel
|
|
|
|
| 13 |
UKU100390 - Bracket-cable abutment-gear
change manual transmission
|
|
|
|
| 14 |
SH110201 - Screw - M10
|
|
|
|
| 15 |
UKE100610 - Lever assembly bell crank |
|
|
|
| 16 |
PA116221 - Pin-roll |
|
|
|
| 17 |
ULK10002 - Retainer |
|
|
|
