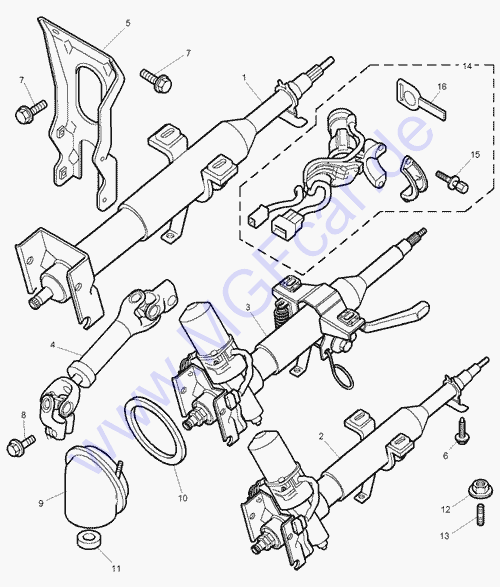

P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
QMB100910 - Column assembly-non electrical
power assisted steering
|
|
|
177,06 |
| 2 |
QMB100870 - Column assembly-with electrical
power assisted steering
superceeded by
QMB101570 Column assembly-with
electrical power assisted steering
QMN100181 Shaft-lower-collapse steering column RHD
superceeded by
(QMN100182 Shaft-lower-collapse steering
column)
QMB101570 Column assembly-with
electrical power assisted steering
QMN100191 Shaft-lower-collapse steering column LHD
superceeded by
(QMN100192 Shaft-lower-collapse steering
column)
|
|
WD040302 |
823,11 |
| 2 |
QMB101570 - Column assembly-with electrical
power assisted steering
|
WD040303 |
XD511058 |
628,13 |
| 3 |
QMB102270PMP - Column assembly-with
electrical power assisted steering - Black
|
YD511059 |
|
628,37 |
| 4 |
QMN100300 - Shaft-lower-collapse steering
column
- RHD - |
|
WD040302 |
208,80 |
| 4 |
QMN100181 - Shaft-lower-collapse steering
column
- RHD -
superceeded by
QMN100182 |
WD040303 |
XD511058 |
166,83 |
| 4 |
QMN100182 - Shaft-lower-collapse steering
column
- RHD - |
YD511059 |
|
178,38 |
| 4 |
QMN100310 - Shaft-lower-collapse steering
column
- LHD - |
|
WD040302 |
231,24 |
| 4 |
QMN100191 - Shaft-lower-collapse steering
column
- LHD -
superceeded by
QMN100192 |
WD040303 |
XD511058 |
167,58 |
| 4 |
QMN100192 - Shaft-lower-collapse steering
column
- LHD - |
YD511059 |
|
173,18 |
| 5 |
QMU100550 - Bracket-mounting-lower
steering column
|
|
|
17,47 |
| 6 |
YYG10005A - Bolt - column-to body-upper
|
|
|
0,70 |
| 7 |
KYP10002 - Screw - bracket to body
|
|
|
0,38 |
| 7 |
KYP10002 - Screw - - column to bracket
|
|
|
0,38 |
| 8 |
QYG10016 - Bolt-nylon-patch
- intermediate shaft upper and lower
|
|
|
0,68 |
| 9 |
QNB10024 - Cover-sealing steering column
- RHD - |
|
AD007103 |
3,04 |
| 9 |
QNB10025 - Cover-sealing steering column
- LHD - |
|
AD007103 |
3,03 |
| 9 |
QNB100420 - Cover-sealing steering
column
- RHD - |
AD007104 |
|
3,07 |
| 9 |
QNB100430 - Cover-sealing steering
column
- LHD - |
AD007104 |
|
4,30 |
| 10 |
QMH10006 - Seal-cover steering joint
superceeded by
QMH100090
|
AD007104 |
|
3,85 |
| 10 |
QMH100090 - Seal-cover steering joint
|
|
AD007105 |
6,93 |
| 11 |
NAM8829 - Gasket-valve steering
|
|
|
1,45 |
| 12 |
FN106047 - Nut-flange - M6
4 of
|
|
|
0,36 |
| 13 |
TE106045 - Stud
- cover to body
|
|
|
0,26 |
| 14 |
QRF100641 - Lock assembly-steering
column - non-specific key number, illuminated
- RHD -
superceeded by
QRF101080 |
|
|
84,77 |
| 14 |
QRF101080 - Lock assembly-steering
column - non-specific key number, illuminated
- RHD - |
|
2D600100 |
92,93 |
| 14 |
QRF100651 - Lock assembly-steering
column - non-specific key number, illuminated
- LHD -
superceeded by
QRF101090 |
|
|
84,93 |
| 14 |
QRF101090 - Lock assembly-steering
column - non-specific key number, illuminated
- LHD - |
|
2D600100 |
89,59 |
| 14 |
QRF100641H - Lock assembly-steering
column - specific key number, illuminated
- See PIB No.4 or No.5 for ordering processes
- RHD -
superceeded by
QRF101080H |
|
|
91,06 |
| 14 |
QRF100651H - Lock assembly-steering
column - specific key number, illuminated
- See PIB No.4 or No.5 for ordering processes
- LHD -
superceeded by
QRF101090H
|
|
|
91,06 |
| 14 |
QRF101080H - Lock assembly-steering
column - specific key number, illuminated
- See PIB No.4 or No.5 for ordering processes
- RHD -
|
|
2D600100 |
108,17 |
| 14 |
QRF101090H - Lock assembly-steering
column - specific key number, illuminated
- See PIB No.4 or No.5 for ordering processes
- LHD - |
|
2D600100 |
100,29 |
| 15 |
QRH10002 - Bolt-shear-lock steering
column
superceeded by
QRH10001
2 of |
|
|
0,72 |
| 16 |

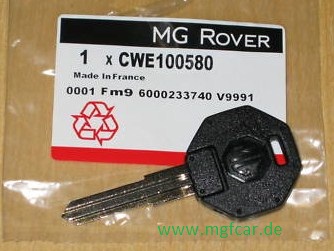

CWE100580 - Key blank (picture)
|
|
|
5,64 |
| |
EPAS ECU see at *RELAYS* |
|
|
|
