P/N, description, qty needed.
|
from |
to |
GBP |
| 1 |

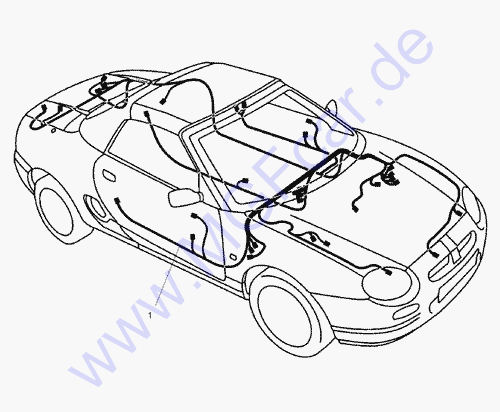

YMC124224 - Harness main
- LHD
- manual steering
- except ABS |
|
AD16435 |
481 |
| 1 |
YMC124234 - Harness main
- LHD
- power steering
- ABS
- except HMSL |
|
AD16435 |
481 |
| 1 |
YMC124225 - Harness main
- LHD -
Air conditioning
EPAS,
-except ABS
- HMSL |
AD16435 |
WD30081 |
423 |
| 1 |
YMC124235 - Harness main
- LHD -
Air conditioning
- ABS,
- EPAS
- except HMSL |
AD16436 |
WD30081 |
460,4 |
| 1 |
YMC124226 - Harness main
- LHD -
EPAS, except ABS
- HMSL
superceeded by YMC124227 |
WD30082 |
XD501287 |
449,25 |
| 1 |
YMC124227 - Harness main
- LHD
- EPAS,
- except ABS
- HMSL |
XD501288 |
XD511058 |
464 |
| 1 |
YMC124236 - Harness main
- LHD -
EPAS, ABS
superceeded by YMC124237 |
WD30082 |
XD501219 |
471,52 |
| 1 |
YMC124237 - Harness main
- LHD -
- EPAS,
- ABS
- except HMSL |
XD501220 |
XD511058 |
507,54 |
| 1 |
YMC132680 - Harness main
- LHD -
Air conditioning OR Limited Edition in Brooklands Green
EPAS, ABS, HMSL
superceeded by YMC132681 |
|
XD511058 |
459,84 |
| 1 |
YMC130500 - Harness main
- LHD -
Air conditioning OR Limited Edition in Brooklands Green
EPAS, HLBL, except ABS
superceeded by YMC130501 |
|
XD511058 |
438 |
| 1 |
YMC145740 - Harness main
- LHD -
except ABS
superceeded by YMC145930 |
YD511059 |
YD514325 |
399 |
| 1 |
YMC145730 - Harness main
- LHD -
Air conditioning
ABS
superceeded by YMC145920 |
YD511059 |
YD514325 |
423 |
| 1 |
YMC145750 - Harness main
- LHD -
except ABS
superceeded by YMC145940 |
YD511059 |
YD514325 |
423 |
| 1 |
YMC145720 - Harness main
Air conditioning
- LHD -
except ABS
superceeded by YMC145910 |
YD511059 |
YD514325 |
423 |
| 1 |
YMC145930 - Harness main
- LHD
- except ABS |
YD514326 |
1D |
423 |
| 1 |
YMC145920 - Harness main
- LHD -
Air conditioning
ABS |
YD514326 |
1D |
438 |
| 1 |
YMC145940 - Harness main
- LHD
- ABS |
YD514326 |
1D |
438 |
| 1 |
YMC145910 - Harness main
- LHD
- Air conditioning
- except ABS |
YD514326 |
1D |
438 |
| 1 |
YMC147250 - Harness main
- LHD
- Air conditioning
- except ABS |
YD522573 |
|
423 |
| 1 |
YMC145760 - Harness main
- LHD -
Air conditioning
CVT Automatic
except ABS
superceeded by YMC145950 |
YD511059 |
YD514325 |
455 |
| 1 |
YMC145770 - Harness main
- LHD - -
CVT Automatic
ABS
superceeded by YMC145960 |
YD511059 |
YD514325 |
423 |
| 1 |
YMC145780 - Harness main
- LHD - Air conditioning
CVT Automatic
ABS
superceeded by YMC145970 |
YD511059 |
YD514325 |
467 |
| 1 |
YMC145950 - Harness main
- LHD - Air conditioning - CVT- ABS |
YD514326 |
YD522573 |
471 |
| 1 |
YMC145960 - Harness main
- LHD - less Air conditioning - CVT- ABS |
YD514326 |
YD522573 |
438 |
| 1 |
YMC145970 - Harness main
- LHD - Air conditioning - CVT - ABS |
YD514326 |
YD522573 |
467 |
| 1 |
YMC158420 - Harness main
- LHD - Air conditioning
- except ABS
superceeded by YMC007410 |
YD522574 |
|
460 |
| 1 |
YMC147260 - Harness main
- LHD - Air conditioning - ABS |
YD522574 |
|
438 |
| 1 |
YMC158430 - Harness main
- LHD
- Air conditioning
superceeded by YMC007420 |
YD522574 |
|
460 |
| 1 |
YMC147290 - Harness main
- LHD - Air conditioning - CVT - ABS |
YD522574 |
|
455 |
| 1 |
YMC158440 - Harness main
- LHD - Air conditioning - CVT - ABS
superceeded by YMC007450 |
YD522574 |
|
460 |
| 1 |
YMC007450 - Harness main
- LHD - Air conditioning - CVT - ABS |
YD522574 |
|
444 |
| 1 |
YMC147300 - Harness main
- LHD - less Air conditioning - CVT - ABS |
YD522574 |
|
423 |
| 1 |
YMC158450 - Harness main
- LHD - less Air conditioning - CVT - ABS
superceeded by YMC007460 |
YD522574 |
|
460 |
| 1 |
YMC007460 - Harness main
- LHD - less Air conditioning - CVT - ABS |
YD522574 |
|
444 |
| 1 |
YMC158460 - Harness main
- LHD - Air conditioning - CVT - ABS
superceeded by YMC007470 |
YD522574 |
|
460 |
| 1 |
YMC007470 - Harness main
- LHD -
CVT Automatic
Air conditioning
ABS |
YD522574 |
|
460 |
| 1 |
YMC004160 - Harness main
- LHD - 1600 ccm - less air con - except ABS
superceeded by YMC007480 |
YD525607 |
|
0 |
| 1 |
YMC007480 - Harness main
- LHD - 1600 ccm - less air con - except ABS |
YD525607 |
|
444 |
| 1 |
YMC005080 - Harness main
- LHD - 1600 ccm - less air con - ABS
superceeded by YMC007490 |
YD525607 |
|
0 |
| 1 |
YMC007490 - Harness main
- LHD - 1600 ccm - less air con - ABS |
YD525607 |
|
444 |
| 1 |
YMC005090 - Harness main
- LHD
- 1600 ccm
- except ABS
superceeded by YMC007500 |
YD525607 |
|
0 |
| 1 |
YMC007500 - Harness main
- LHD - 1600 ccm - air con - except ABS |
YD525607 |
|
444 |
| 1 |
YMC005100 - Harness main
- LHD
- 1600 ccm
- Air con
- ABS
superceeded by YMC007510 |
YD525607 |
|
0 |
| 1 |
YMC007510 - Harness main
- LHD
- 1600 ccm
- Air con
- ABS
|
YD525607 |
|
460 |
| 1 |
YMC008240 - Harness main
- LHD -
- less Air Con
- except ABS |
YD530689 |
2D600100 |
444,83 |
| 1 |
YMC008250 - Harness main
- LHD
- Air Con
- except ABS |
YD530689 |
2D600100 |
1234,09 |
