EPC

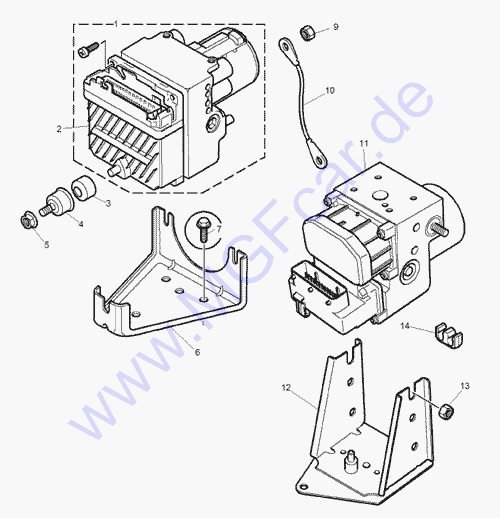

MG Cars | MGF - MG TF | Brakes | Brake System | Anti Lock Brake Modulator

Parts
P/N, description, qty needed. from to
GBP
1 SRB100550 - Modulator antilock brakes
BOSCH
0 265 215 005

  XD511058 1136,1
2 SRD100180 - Electric control unit antilock brakes
YD511059   644,10
3 SWW100010 - Bush-rubber-modulator antilock brakes
3 of
  XD511058 0,83
4 DCP7878 - Washer-bell-support antilock brakes
3 of
  XD511058 1,28
5 FN106047 - Nut-flange - M6
3 of
  XD511058 0,35
6 SRU101100 - Bracket-modulator antilock brakes
  XD511058 7,34
7 KYP10002 - Screw - modulator bracket to body
3 of
    0,37
9 FN105041 - Nut - earth lead
superceeded by
FN105047
  XD511058

0,37

10 YTB100740 - Earth-modulator antilock brakes
    7,40
11 SRB101590 - Modulator antilock brakes - complete with ECU
BOSCH
0 265 215 470

YD511059   700,52
12 SRU102100 - Bracket-modulator antilock brakes
YD511059   7,06
13 FN108047 - Nut-flange - M8
superceeded by
FN108041
2 of
YD511059   0,35
14 AAU7803A - Clip- brake pipe to modulator
- LHD -
YD511059   0,81
[ back ]
[ Guestbook ]
[ s ]
notice: parts prices are historic. Edition app. 2003. Today you pay about double and more for some of the rare parts
