EPC

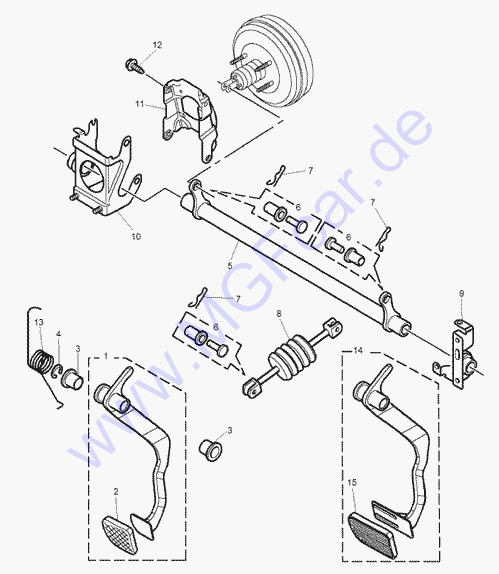

MG Cars | MGF - MG TF | Brakes | Brake System | Brake Pedal

Parts
P/N, description, qty needed. from to
GBP
1 SKB102220PMA - Pedal assembly-brake
- RHD -
  YD514325 34,23
1 SKB102231PMA - Pedal assembly-brake
- LHD -
  YD514325 32,23
1 SKB104400PMA - Pedal assembly-brake
- RHD -
YD514326
1 SKB104410PMA - Pedal assembly-brake
- LHD -
YD514326
2 DBP7047 - Pad-lever-pedal
- Manual
    3,75
3 NAM6875 - Bush
clutch/brake pedal


0,38

4 FAM3903 - Circlip
clutch/brake pedal shaft
    0,3
5 SKK100100 - Cross tube assembly-brake brake
    19,77
6 NAM8540 - Pin assembly-clevis
    1,58
7 EDP7864 - Clip-spring steel
brake pedal operating rod clevis pin
    1,05
8 SKM100050 - Connecting rod assembly brake
    31,32
9 SKU101161 - Bracket assembly-cross tube mounting (with bearing)
- RHD -
    8,51
9 SKU101171 - Bracket assembly-cross tube mounting (with bearing)
- LHD -
    32,09
10 SKU101121 - Bracket assembly-cross tube mounting (with bearing)
- RHD -
    14,16
10 SKU101131 - Bracket assembly-cross tube mounting (with bearing)
- LHD -
    32,09
11 SKU100971 - Bracket-servo mounting
    11,31
12 BYP10001 - Bolt-washer
servo bracket to cross tube bracket
4 of
    0,38
13 SZR100020 - Spring-coil
brake pedal pivot shaft
XD500459   1,02
14 SKB104540PMA - Pedal assembly-brake
- RHD - Automatic -
    32,90
14 SKB104550PMA - Pedal assembly-brake
- LHD -Automatic -
    32,90
15 DBP7056 - Pad-lever-pedal
- Automatic
    2,27
[ back ]
[ Guestbook ]
[ s ]
notice: parts prices are historic. Edition app. 2003. Today you pay about double and more for some of the rare parts
