MG Cars | MGF - MG TF | Brakes | Rear Brakes and Hubs | Rear Hub-MG TF

Parts
P/N, description, qty needed. from to
GBP
1

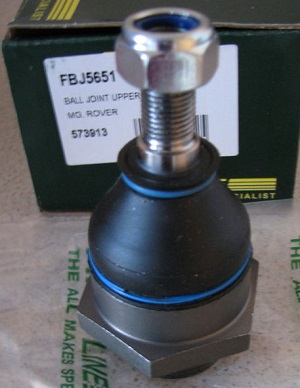

RBK000090 - Joint-ball-upper Suspension
- unique MG TF part, high version

available also from China as FBJ5651 (First Line)
Cone 13mm
Thread: M34x1,5
1 13/16" nut size (46mm)

2D600101   21,16
2 NAM2470 - Washer-lock
2D600101   0,36
3 RLH000330 - Hub rear - LH
2D600101   72,38
3 RLH000320 - Hub rear - RH
2D600101   72,38
4/5 RFM000050 - Kit-hub bearing - front (or rear)
- QH QWB661
- Lockheed BK405
- Unipart GHK1366
    46,93
6 RUB000150 - Flange assembly-drive
2D600101   66,73
7 FAM8419- Stud
    3,05
8 SDB100460 - Disc-solid brake
240 x 10mm
(Min 9mm)
EBC D849
MINTEX MDC1077
    54,26
9 SF106161 - Screw countersunk
    0,48
10 EJP7738 - Nut-stake - R/H thread
32mm (1 ¼") /210Nm
    1,36

RBK000090

[ back ]
[ ]
[ ]
notice: parts prices are historic. Edition app. 2003. Today you pay about double and more for some of the rare parts
