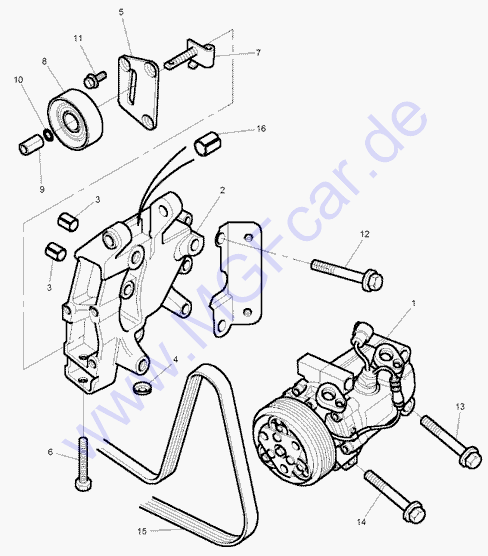

Parts |
 |
P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |
JPB100740 - Compressor assembly air
conditioning
|
|
|
NLA |
| 1 |
JPB100860 - Compressor assembly air
conditioning
- manual |
|
|
950,68 |
| 1 |
JPB000060 - Compressor assembly air
conditioning
- Automatic |
YD519374 |
|
950,68 |
| 2 |
JPD100580 - Bracket-mounting
-compressor & alternator air conditioning
|
|
|
152,34 |
| 3 |
CDU1792 - Dowel-ring
2 of
|
|
|
0,99 |
| 4 |
BRC9037 - Retainer
|
|
|
0,31 |
| 5 |
PQE100130 - Plate-tensioner mounting
ancillary drive
|
|
|
9,74 |
| 6 |
PQF100040 - Screw-tensioning ancillary
drive
|
|
|
5,11 |
| 7 |
PQL100070 - Spindle-tensioner ancillary
drive
|
|
|
4,81 |
| 8 |
PQR10028 - Pulley-tensioner ancillary
drive
Dia. 65,0 mm x 26,0 mm
CDU 2049
CDU 3380
Bilstein #08632
|
|
|
23,92 |
| 9 |
WAM3719 - Nut-elongated - M8
|
|
|
0,75 |
| 10 |
WA108051 - Washer - M8, plain
|
|
|
0,36 |
| 11 |
FS108161 - Screw-flanged head
- M8 x 16
3 of
|
|
|
0,38 |
| 12 |
FB110161 - Bolt -
M10 x 80
5 of
|
|
|
0,83 |
| 13 |
FB110201 - Bolt -
M10 x 100
2 of
|
|
|
1,09 |
| 14 |
FB110181 - Bolt -
M10 x 90
|
|
|
0,75 |
| 15 |
PQS101180 - Belt-polyvee alternator
Bosch 5 PK 1200
5PK1193
5PK1200 (orig)
5PK1205
5PK1210
|
|
|
13,14 |
| 16 |
YKP100060 - Bush-sliding alternator
mounting bracket
|
|
|
2,32 |
|
|
|
 |
