MGF
/ TF horn

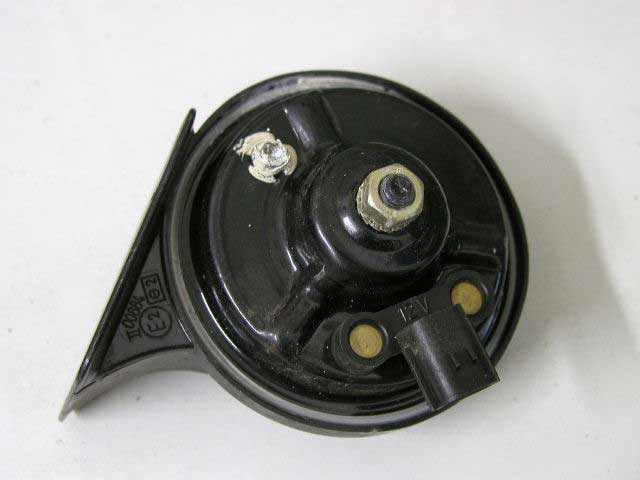

Two of them in the bonnet
(One only with the MGTF). One high sounding and another deeper.
If there is one failing then it needs replacement. See it from inside
below.
YEB100780 Horn Low note is always installed
YEB100770 Horn High note is at MGF/TF until VIN 606594 only :)
| |
An der
Unterseite eine Justageschraube (Torx) versteckt hinter weissem
Kitt. Die ist zur Justage des Kontaktabstandes an dem Türklingel
ähnlichem Unterbrecher. |
On the
bottom is an adjustment bolt hidden behind white mastix. (Torx
head screw)
It is to adjust the contact distance of the 'door bell' like interuption
contact. |
| |

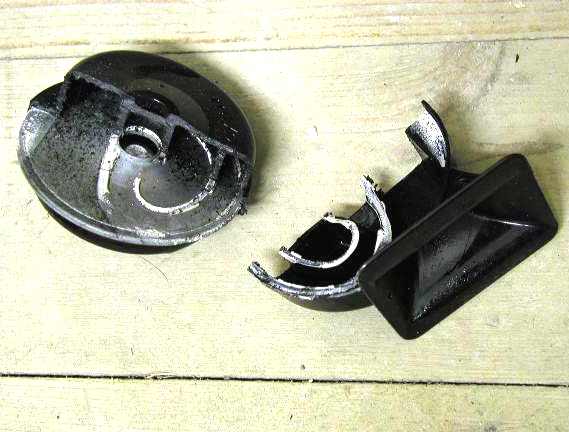

Das Oberteil
halbiert |
half cutted
upper case . |
| |
|
|
| |

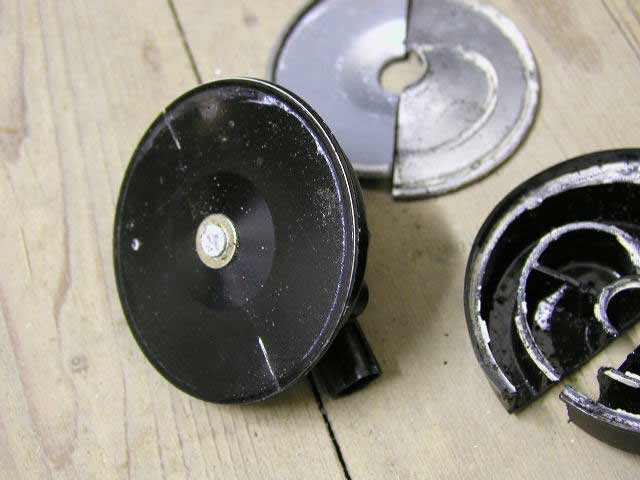

Resonator
ab |
removed
resonator |
| |

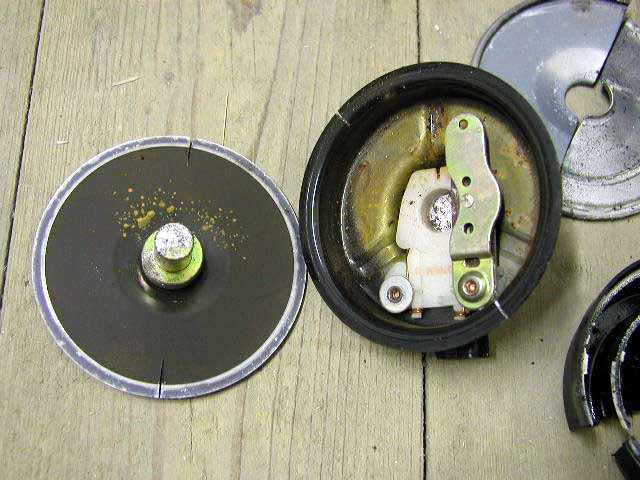

Membran
entfernt |
Membrane
removed |
| |
Membran
mit Anker |
Membrane
with steel part (moves in the coil up and down) |
| |

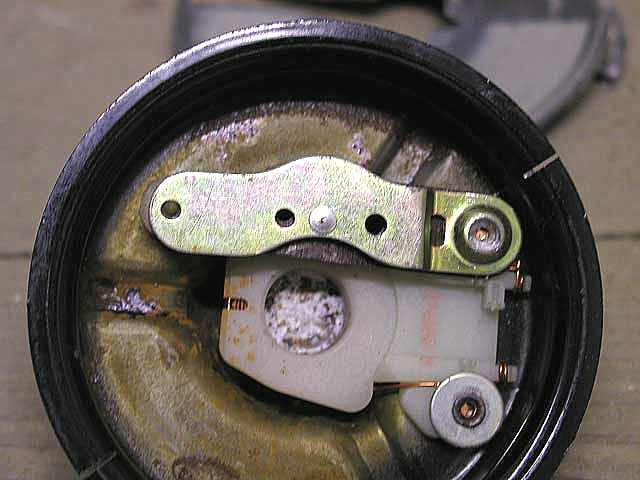

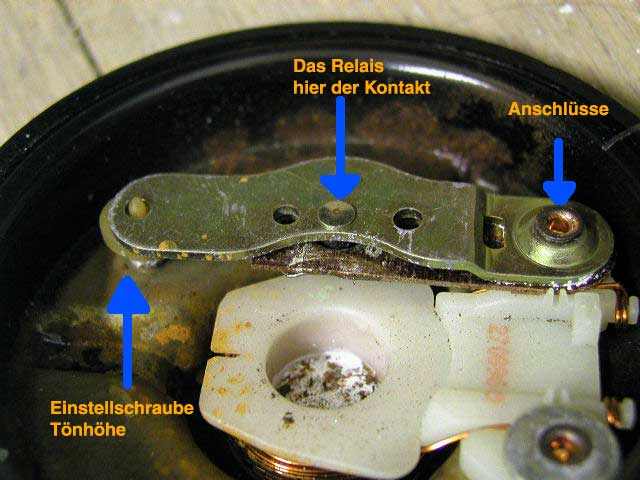

Unterbrecherkontakt
wie bei einer alten Türklingel.
Links die Einstellschraube
Mittig der Kontakt
Rechts der Festpunkt der Blattfeder |
Interruptor
contact (relay) like at a door bell.
- LH the adjustment screw
- Centre the contact
- RH the fixture of the contact blade
The white plastic part is the coil |
| |

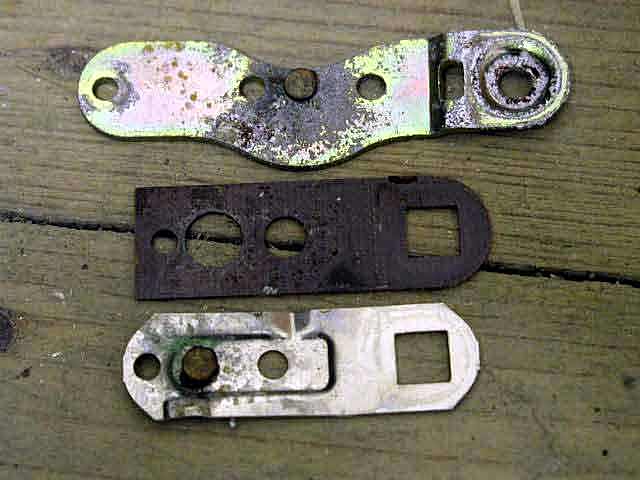

Niet ausgebohrt |
Rivet
drilled off and ... |
| |
Kontakt
platte entfernt. |
... the
fixed contact removed
Insulation plate visible. |
| |
der untere
bewegte Kontakt |
Lower
'moving' contact |
| |
Ziemlich
vergammelt ;) |
Lot of
corrosion |
| |
Die
Spule |
The
coil |
