MGF inlet manifold (not VVC)
from app. VIN 504633 (end of 1999) upwards the newer green coloured
The old one was black coloured and often failed with leaks to the head... leading to the HGF

Ansaugkrümmerdichtung ab etwa VIN 504633 (MPI) GUG704094MG
neue Dichtung ist Grün, die alte Dichtung war schwarz

[Click to enlarge image]
[Click to enlarge image]
[Click to enlarge image]
[Click to enlarge image]

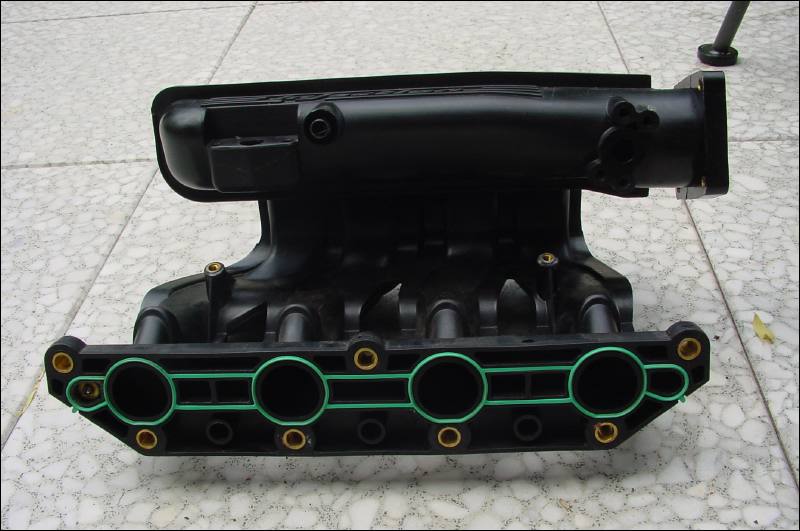

1.8i plastic manifold for 120bhp engine with mounted newer green coloured gasket throttle body flange RH hose connector for expansion tank flow back from the head through the jiggle valve gasket side with jiggle valve on the left.
[Click to enlarge image]
[Click to enlarge image]
[Click to enlarge image]
[Click to enlarge image]
The damn jiggle valve. Prone to get sticky after drain of coolant. See the derivates from dry coolant !!

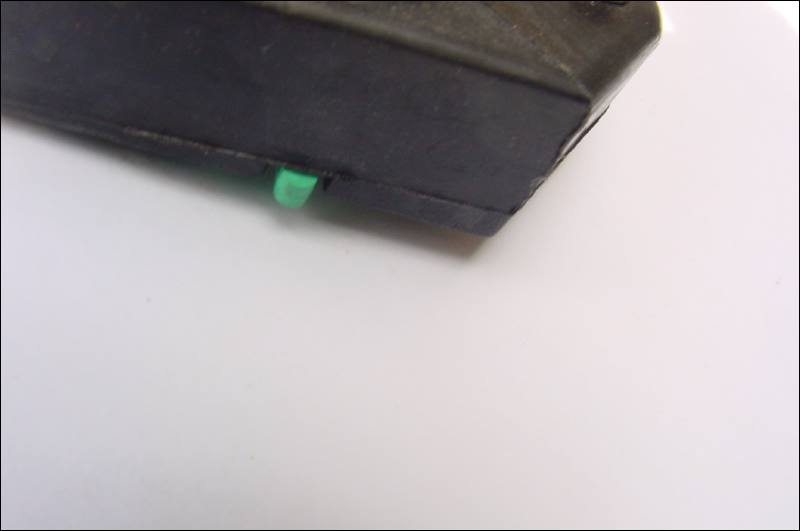

the visible green mark of the newer gasket
LH location near the throttle body
injector places
[Click to enlarge image]

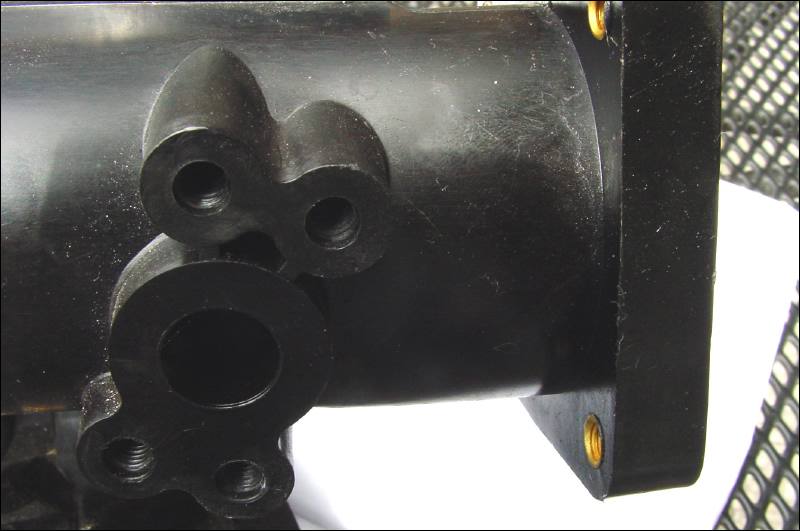

location for idle air control valve IACV (stepper motor)

german only ;)
german only ;)
