MGF
shiny chrome exhaust finisher |
the
bulk of TT MK2 and the MK1 proto on the right |
the
bulk of TT MK2 stainless steel exhausts |
|
|
|
|
TT
MK2 at Neils car |
TT
MK2 at Neils car |
Scarlets
alignement problem just after straight forward fitting.
Needs some rework due to the _bent_ back of Scarlet from the earlkier
accident |
Scarlets
Phoenix Exhaust in comparision to the TT MK2 |
|
|
|
|
special
marking 4 me, due some special reasons ;) |
|
The
original Proto
of Trevor Taylor sports exhaust |
pictures
courtesy Neil Willets and Andrew Phillips. Jan. 2006
|
|
It's
on |

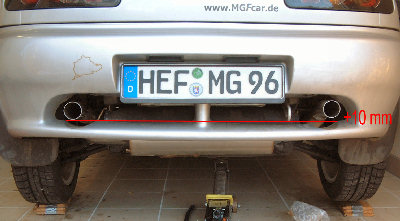

height is 10mm different
- bend rh inwards will bring it down aswell by lets say 3mils
-may be a spacer of 6 mils to the RH does the rest |
|

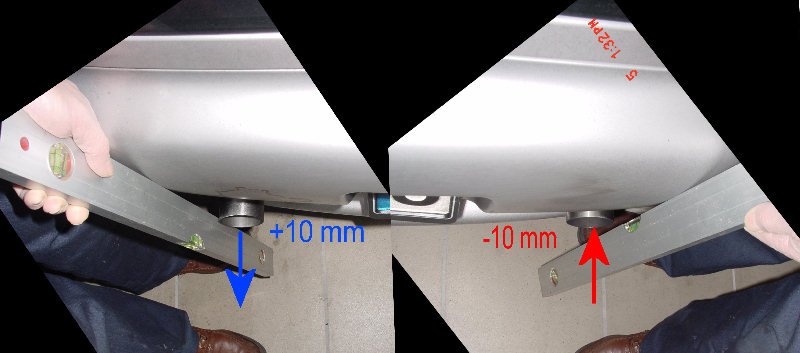

depth is 20mm different

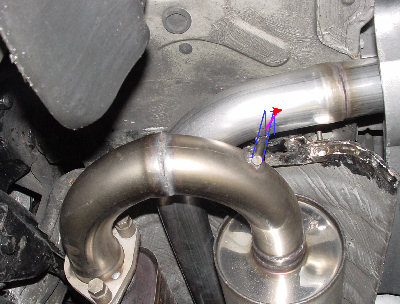

looks like I'll finally cut the left hand tail pipe by 10 to 15mm |
![](bend_lh_DSC01040_t.JPG) |
|

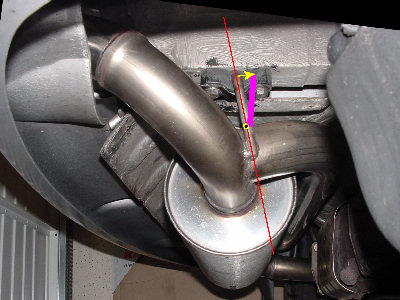

looks impossible to get 10 mils backwards ? |
|
![](bend_rh_DSC01032_t.JPG) |
|
will do this by 5 to 10 mils.
- the straight bracket end could get bent 'upwards aswell by lets say
3 mils |
|
|
|
|
|
![](bend0_DSC01041_t.JPG) |

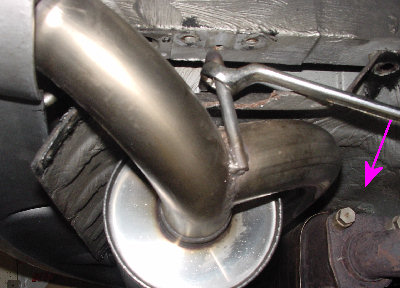

Stage 1
the plan is to bend this RH bracket backwards by 10 mils
cut the heat shield like SF did |
|
|
![](bend_hot_DSC01043_t.JPG) |

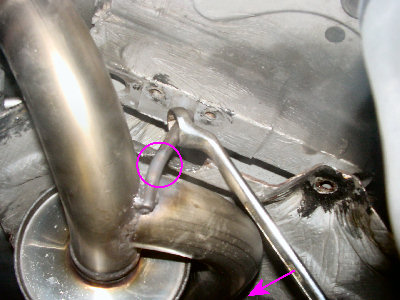

Used a gas flame to allow smooth bend (see circle mark)
(Halfords like with max 1950°C) |
|
|
Spacer:
59mm x 22mm with two dia. 8.5mm drills
![](spacer.gif)
drill distance centre to centre 49mm
use M8 x 40 to 45mm bolts instead of the short M8x35mm bolts |

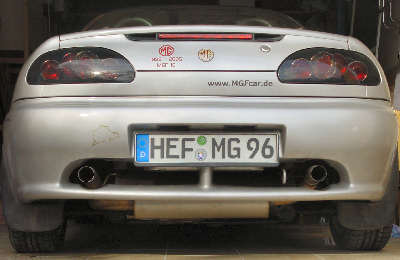

Stage 2
Tailpipes now flush to the rear bumper
No success with the height.
I'll make a 6mm spacer.
(6 mils cause I have the material) |
|
|
![](rear_DSC01088_t.JPG)
![](top_DSC01089_t.JPG)
|
Stage 3
Spacer works :) |
|
|

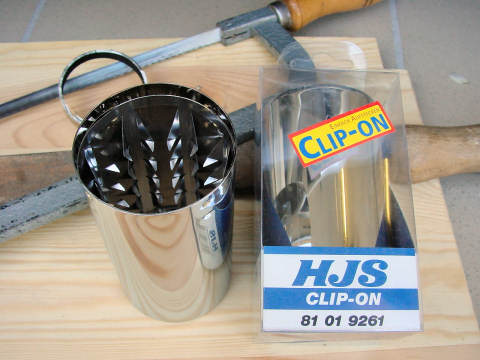

![](HJS_50_54.5_81019261_DSC01294_1.JPG) |
|
|
![](DSC01293_1.JPG) |
|
|
![](DSC01299_1.JPG) |
|
|
![](DSC01296_1.JPG) |
