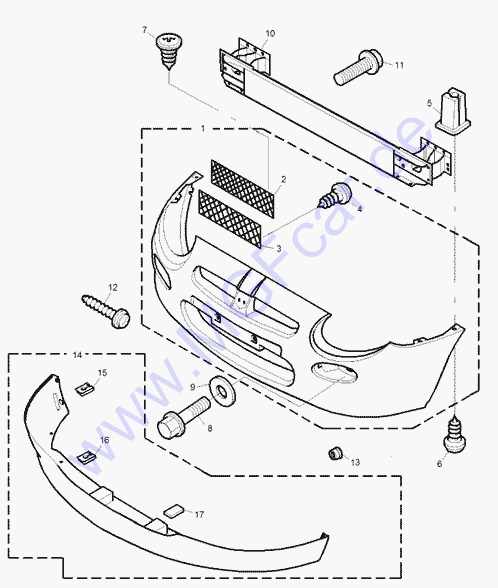

Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
DPC101450LML - Cover assembly
-painted front bumper
- Primer
|
|
2D600100 |
198,61 |
| 2 |
DQY100200PMD - Grille
-front bumper upper
- Black
|
|
2D600100 |
22,38 |
| 2 |
DQY100390MMM - Grille
-front bumper upper
- bright
|
|
XD511058 |
29,66 |
| 2 |
DQY100500MMM - Grille
-front bumper upper
- Chrome
|
XD511059 |
|
72,02 |
| 3 |
DQY100210PMD - Grille
-front bumper lower
- Black
|
|
2D600100 |
23,20 |
| 3 |
DQY100400MMM - Grille
-front bumper lower
- bright
|
|
XD511058 |
44,33 |
| 3 |
DQY100510MMM - Grille
-front bumper lower
- Chrome
|
XD511059 |
|
87,01 |
| 4 |
DYP101150 - Screw-pan
15 of
|
|
|
1,29 |
| 5 |
OYH003426EVA - Nut-lokut
3 of
|
|
|
|
| 6 |
DYP10035 - Screw
-self tapping AB
9 of
|
|
|
0,93 |
| 7 |
DYP10035 - Screw-self tapping AB
5 of
|
|
|
0,93 |
| 8 |
SH110207 - Screw
2 of
|
|
|
0,39 |
| 9 |
WJ110007 - Washer
2 of
|
|
|
0,31 |
| 10 |
DPE100430 - Armature assembly - front
bumper
Discontinued
Use DPE100431
from The MGTF and cut off the both not needed brackets
for the MGTF bumber
|
|
|
77,77 |
| 11 |
FS108207 - Screw
armature to body
- flanged head
- M8 x 20
4 of
|
|
|
0,39 |
| 12 |
FS106257 - Screw
-flanged head
- M6 x 25
2 of
(number plate to bumper
|
|
|
0,38 |
| 13 |
ZKC2228 - Nut
Australia
2 of
|
|
|
0,47 |
| 14 |
DFB000010LML - Spoiler assembly
-front bumper centre
- Trophy
|
YD525704 |
2D600100 |
215,32 |
| 15 |
DYQ000060 - Rivet
-bifurcated
- Trophy
4 of
|
YD525704 |
2D600100 |
1,27 |
| 16 |
DYQ000070 - Rivet
-bifurcated
- Trophy
2 of
|
YD525704 |
2D600100 |
1,27 |
| 17 |
DPJ000060 - Foam
- front bumper infill
- Trophy
2 of
|
|
2D600100 |
39,63 |
| 900 |
AB606049 - Screw-self tapping - stainless
steel
15 of
|
|
|
0,22 |
| 901 |
WA104009 - Washer-plain
- stainless steel.
|
|
|
0,22 |
|
|
|
 |
