P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

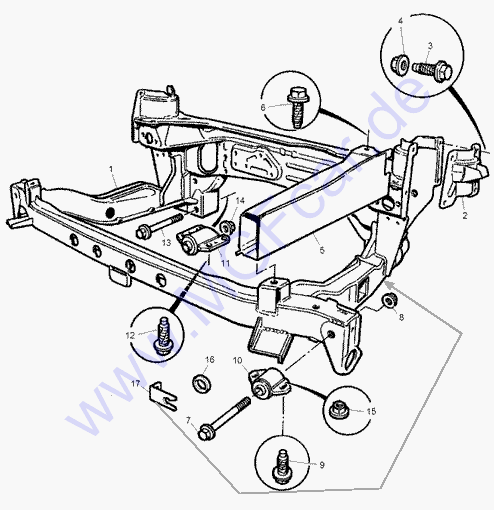

KGB100480 - Subframe assembly-front
Suspension
superceeded by
KGB100481
superceeded by
KGB100890
superceeded by
KGB100891
|
|
AD009637 |
339,37 |
| 1 |
KGB100481 - Subframe assembly-front
Suspension
superceeded by
KGB100890
superceeded by
KGB100891
|
AD009638 |
XD500640 |
382,41 |
| 1 |
KGB100890 - Subframe assembly-front
Suspension
superceeded by
KGB100891
|
XD500641 |
XD511058 |
382,41 |
| 1 |
KGB100891 - Subframe assembly-front
Suspension
|
YD511059 |
|
428,31 |
| 1 |
KGB000160 - Subframe assembly-front
Suspension
|
2D600101 |
|
500,29 |
| 2 |
KGM10008 - Plate-front subframe tower
clamping - RH
for standard cars with 6.0 X 15 road wheels
|
|
|
8,15 |
| 2 |
KGM10009 - Plate-front subframe tower
clamping - LH
for standard cars with 6.0 X 15 road wheels
|
|
|
10,91 |
| 2 |
KGM100210 - Plate-front subframe tower
clamping - LH
for cars with 7.0 X 16 road wheels
(weld bump stop)
|
|
|
8,25 |
| 2 |
KGM100200 - Plate-front subframe tower
clamping - RH
for cars with 7.0 X 16 road wheels
(weld bump stop)
|
|
|
8,25 |
| 3 |
KYP10002 - Screw
|
|
|
0,38 |
| 4 |
FN108041 - Nut-flange - M8
|
|
|
0,65 |
| 5 |
KGK100510 - Longitudinal-front subframe
upper - LH
|
|
|
59,38 |
| 5 |
KGK100500 - Longitudinal-front subframe
upper - RH
|
|
|
57,68 |
| 6 |
KYP10009 - Screw-dog point-patch
|
|
|
0,47 |
| 7 |
FB114291 - Bolt-flanged head
- M14 x ??
|
|
WD026658 |
2,25 |
| 7 |
FB114291M - Bolt-flanged head
except Trophy OR front mount to front subframe
superceeded by
KYG000260 |
WD026659 |
|
2,25 |
| 7 |
KYG000110 - Bolt-flanged head
1600 ccm - M14 x ??
Trophy OR front mount to front subframe |
|
|
1,01 |
| 8 |
FN114041 - Nut-flange - M14
|
|
|
0,61 |
| 9 |
YYG10005A - Bolt
|
|
|
|
| 10 |
NAM4131 - Mounting-front subframe rubber
superceeded by
FAM9525 (FOR MGF USE 2OFF FAM 9525 AND 2OFF KGE10015)
superceeded by
KGE100150 Mounting-front
subframe rear rubber
|
|
WD026658 |
36,44 |
| 10 |
FAM9525 - Mounting-front subframe rubber
- except Trophy
|
WD026659 |
2D600100 |
15,82 |
| 10 |
KGE000060 - Mounting-front subframe
rubber
Trophy
superceeded by
KGE000110
|
2D600101 |
2D600100
|
38,17 |
| 10 |
KGE000110 - Mounting-front subframe
rubber
Trophy
|
2D600101 |
2D600100
|
12,73 |
| 11 |
KGE10001 - Mounting-front subframe
rear rubber
|
|
WD26658 |
12,73 |
| 11 |
KGE000150 - Mounting-front subframe
rear rubber
(except Trophy)
|
WD26659 |
2D600100 |
33,27 |
| 11 |
KGE000070 - Mounting-front subframe
rear rubber
(Trophy)
superceeded by
KGE000071
|
Trophy &
MGTF since 2D600101 |
Trophy to 2D600100
MGTF to
2D607723 |
50,60 |
| 11 |
KGE000071 - Mounting-front subframe
rear rubber
|
Trophy &
MGTF since 2D607724 |
Trophy to 2D600100
& MGTF
|
50,60 |
| 12 |
KYP10004 - Screw
|
|
|
0,73 |
| 13 |
FB114317M - Bolt-flanged head
1800 ccm -
- except Trophy OR rear mount to front subframe |
|
|
2,22 |
| 13 |
KYG000110 - Bolt-flanged head
1600 ccm -
- Trophy OR rear mount to front subframe |
|
|
1,01 |
| 14 |
FN114041 - Nut-flange - M14
|
|
|
0,61 |
| 15 |
FN108041 - Nut-flange - M8
|
|
|
0,65 |
| 16 |
KYF100220 - Spacer
snubber
|
|
|
1,13 |
| 17 |
KYF100240 - Spacer
2 of
(to be mounted to the bushes outer side of the lower
arm) >>> see
here <<<
|
AD000506 |
|
1,02 |
| 900 |
KGE000060 - Mounting-front subframe
rubber
superceeded by
KGE000110
|
|
2D600100 |
38,17 |
| 900 |
KGE000110 - Mounting-front subframe
rubber
|
|
2D600100 |
38,17 |
| 901 |
KGE000070 - Mounting-front subframe
rear rubber
superceeded by
KGE000071
|
2D600101 |
|
50,60 |
| 902 |
KYG000110 - Bolt-flanged head
|
|
|
1,01 |
| 903 |
KGZ000050 - Brace-front subframe -
LH
|
2D600101 |
3D618325 |
41,93 |
| 903 |
KGZ000070 - Brace-front subframe -
LH
|
3D618326 |
|
22,05 |
| 903 |
KGZ000040 - Brace-front subframe -
RH
|
2D600101 |
3D618325 |
22,13 |
| 903 |
KGZ000060 - Brace-front subframe -
RH
|
3D618326 |
|
22,05 |
