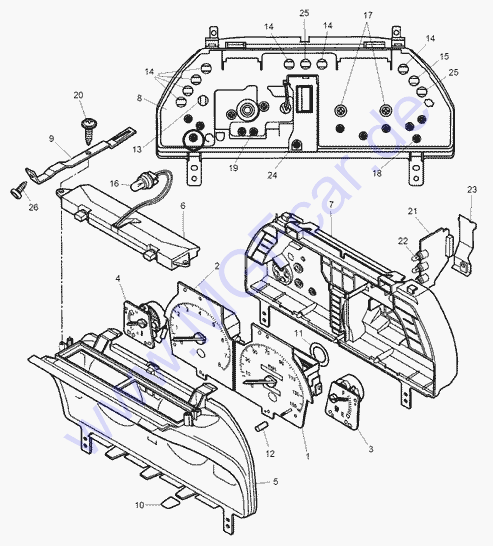

Parts |
 |
P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |
YBC101130 - Speedometer assembly -
KMH - LHD - |
|
XD511058 |
239,13 |
| 1 |
YBC101120 - Speedometer assembly -
MPH - RHD - |
|
|
259,91 |
| 2 |
YAE100470 - Tachometer |
|
|
87,13 |
| 2 |
YAE100480 - Tachometer - VVC - |
|
|
90,79 |
| 3 |
YAD100500 - Gauge-fuel
|
|
|
85,51 |
| 4 |
YAD100510 - Gauge-temperature
|
|
|
85,51 |
| 5 |
YAQ100370PMP - Cowl assembly instrument
pack - Black
|
|
|
24,48 |
| 5 |
YAQ100360PMP - Cowl assembly instrument
pack - Black - VVC - |
|
|
28,03 |
| 6 |
YAS100440 - Case assembly-illuminated
instrument pack
|
|
|
20,96 |
| 7 |
YAS100450 - Case assembly instrument
pack
|
|
|
20,21 |
| 8 |
YAH100410 - Printed circuit board instrument
pack (with bulb check)
|
|
|
10,25 |
| 9 |
YAU100070 - Bracket-instrument pack
- LH
|
|
|
1,33 |
| 9 |
YAU100060 - Bracket-instrument pack
- RH
|
|
|
1,33 |
| 10 |
EJP1052 - Pad-facia anti squeak
|
|
|
0,28 |
| 11 |
YBG10002 - Washer-foam
|
|
|
0,59 |
| 12 |
EJP1051 - Knob trip reset
|
|
|
1,11 |
| 13 |
YAJ100230 - Bulb & holder assembly
|
|
|
2,57 |
| 14 |
EJP1180 - Bulb & holder assembly
- 14V 1.4W
10 of
|
|
|
1,84 |
| 15 |
CDU3270 - Bulb & holder assembly
- Blue, 14V 2W
|
|
|
2,69 |
| 16 |
YAJ100260 - Bulb & holder assembly
|
|
|
2,57 |
| 17 |
EJP1077 - Screw-washer - M4 x 12
|
|
|
0,30 |
| 18 |
YYP10001 - Screw-machine - 16mm, M3
|
|
|
0,68 |
| 19 |
EJP1078 - Screw-washer - M3 x 10
|
|
|
0,26 |
| 20 |
YYP10004 - Screw - M4
|
|
|
0,28 |
| 21 |
YAH100420 - Printed circuit board instrument
pack - KMH - LHD - |
|
|
18,89 |
| 21 |
YAH100620 - Printed circuit board instrument
pack - KMH - LHD - VVC - |
|
|
19,61 |
| 21 |
YAH100540 - Printed circuit board instrument
pack - MPH - RHD -
|
|
|
20,38 |
| 21 |
YAH100610 - Printed circuit board instrument
pack - MPH - RHD - VVC |
|
|
20,66 |
| 22 |
YAJ100250 - Bulb & holder assembly
|
|
|
2,61 |
| 23 |
FBB10001 - Cover-instrument pack
|
|
|
0,37 |
| 24 |
EJP1079 - Screw-self tapping - 4 x
12
|
|
|
0,37 |
| 25 |
CDU3269 - Bulb & holder assembly
- Grey, 14V 1.12W
|
|
|
2,38 |
| 26 |
AC608044 - Screw-self tapping - upper
|
|
|
0,3 |
|
|
|
 |
