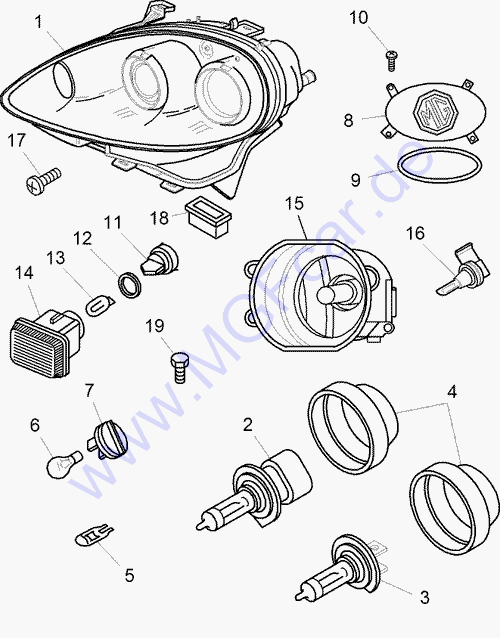

Parts |
 |
P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |
XBC002510 - Headlamp assembly-front
lighting - LH
- RHD - |
|
|
117,80 |
| 1 |
XBC002530 - Headlamp assembly-front
lighting - LH
- LHD - |
|
|
117,80 |
| 1 |
XBC002500 - Headlamp assembly-front
lighting - RH
- RHD - |
|
|
117,80 |
| 1 |
XBC002520 - Headlamp assembly-front
lighting - RH
- LHD - |
|
|
117,80 |
| 2 |
XZQ000140 - Bulb-headlamp - HB3A-60
Watt
Main Beam
|
|
|
23,22 |
| 2 |
XZQ000160 - Bulb-headlamp-H1-55 Watt
- main beam
|
|
|
4,52 |
| 3 |
XZQ000170 - Bulb-headlamp
dip beam
superceeded by
XZQ000210
|
|
|
12,99 |
| 3 |
XZQ000210 - Bulb-headlamp
dip beam
|
|
|
12,99 |
| 4 |
XBV000130 - Headlamp Bulb Cover
4 of
|
|
|
2,94 |
| 5 |
AFU4481 - Bulb
-501-w10/5-5 Watt - Clear.
|
|
|
0,63 |
| 6 |
XZQ100190 - Bulb
-344 21 Watt - Yellow.., direction indicator
|
|
|
2,42 |
| 7 |
XBP100240 - Holder-front lighting bulb
|
|
|
5,26 |
| 8 |
XBV000140 - Sidelight Bulb Cover RH
|
|
|
2,40 |
| 8 |
XBV000150 - Sidelight Bulb Cover LH
|
|
|
2,40 |
| 9 |
XBZ000010 - Sidelight Cover Gasket
|
|
|
6,87 |
| 10 |
DYP10036 - Screw-flanged head
4 of
|
|
|
0,36 |
| 11 |
DCP8004 - Holder-side repeater bulb
|
|
|
1,93 |
| 12 |
AFU3112 - O ring
|
|
|
0,35 |
| 13 |
XZQ100210 - Bulb
-382-p25/1-21 Watt - Orange
|
YD511059 |
|
2,80 |
| 14 |
XGB000060A - Lamp-auxiliary lighting
side repeater - Clear.
|
|
|
8,18 |
| 15 |
XBJ105510 - Lamp assembly-front lighting
fog - LH
|
|
|
31,40 |
| 15 |
XBJ105500 - Lamp assembly-front lighting
fog - RH
|
|
|
31,40 |
| 16 |
XLQ000110 - Bulb Halogen H11 55W
fog lamp
|
|
|
20,30 |
| 17 |
DYP10046 - Screw
|
|
|
0,32 |
| 18 |
ADU4029 - Grommet
|
|
|
0,25 |
| 19 |
SE106105 - Screw-flanged head
- M6 x 14
- fog lamp to bracket
|
2D600101 |
4D622375 |
0,38 |
| 19 |
DYP101510 - Screw-flanged head
- M6 x 14
- fog lamp to bracket
|
4D622376 |
|
0,36 |
| 20 |
JZV1183 - Screw
- M5 x 16
(NOT ILLUSTRATED)
|
|
|
0,29 |
| 21 |
EYH100300 - Nut-spring-flat
(NOT ILLUSTRATED)
|
|
|
1,41 |
|
|
|
 |
