P/N, description, qty needed. |
from VIN |
to VIN |
GBP
|
| 1 |

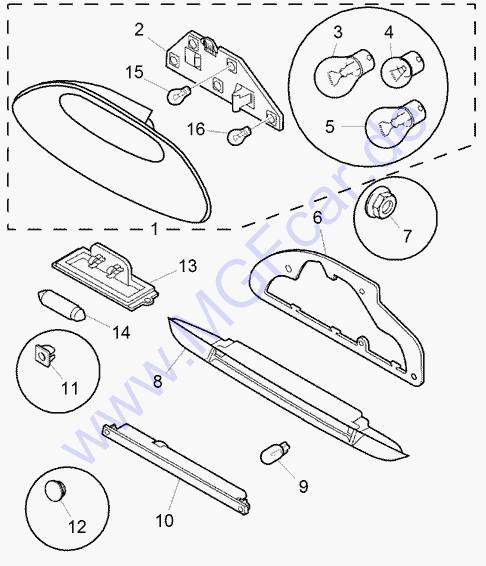

XFB100990 - Lamp assembly-rear - LH
superceeded by
XFB101610
|
|
|
64,28 |
| 1 |
XFB101610 - Lamp assembly-rear - LH
- grey
|
|
2D600100 |
70,67 |
| 1 |
XFB000550 - Lamp assembly-rear - LH
- white
|
2D600101 |
|
76,11 |
| 1 |
XFB100980 - Lamp assembly-rear - RH
superceeded by
XFB101600
|
|
|
61,87 |
| 1 |
XFB101600 - Lamp assembly-rear - RH
- grey
|
|
2D600100 |
70,67 |
| 1 |
XFB000540 - Lamp assembly-rear - RH
- white
|
2D600101 |
|
76,11 |
| 2 |
XFM100190 - Holder-rear
lamp bulb - LH |
|
|
12,37 |
| 2 |
XFM100180 - Holder-rear lamp bulb -
RH
|
|
|
12,37 |
| 3 |
XFT100020 - Bulb
-382-p25/1-21 Watt - Clear.
Brake Light
|
|
|
0,53 |
| 4 |
XFT100030 - Bulb
-207-r19/55 Watt
tail light
|
|
|
0,59 |
| 5 |
XZQ100190 - Bulb
-344 21 Watt - Yellow..,
direction indicator
|
|
|
2,42 |
| 6 |
XFH100330 - Gasket-rear lamp assembly
- 6.0mm.
superceeded by
XFH100440
|
|
|
6,77 |
| 6 |
XFH100440 - Gasket-rear lamp assembly
- 7.5mm
|
|
|
7,59 |
| 7 |
ALU1580 - Nut-flange - 5.0mm
|
|
|
0,14 |
| 8 |
XFG100230 - Lamp-rear high mounted
stop
|
|
2D600100 |
36,39 |
| 8 |
XFG000050 - Lamp-rear high mounted
stop - LED Type
|
2D600101
LE500 |
|
71,84 |
| 9 |
XZQ100200 - Bulb
-wedge illumination
high mounted stop lamp
|
|
2D600100 |
1,88 |
| 10 |
CKE100820 - Seal-trunk lid
|
|
|
33,82 |
| 11 |
BNP4106 - Grommet
|
|
|
1,24 |
| 12 |
14A7031 - Plug-blanking.
Except: High mounted stop lamp
|
|
|
0,16 |
| 13 |
XFC100290PMT - Lamp-rear licence plate
- Black
superceeded by
XFC000200
|
|
|
8,13 |
| 13 |
XFC000200 - Lamp-rear licence plate
MG TF
|
|
|
18,97 |
| 14 |
RTC3633 - Bulb
-239-c11-5 Watt
|
|
|
0,78 |
| 15 |
XFT100020 - Bulb
-382-p25/1-21 Watt - Clear.
Reversing Light
|
|
|
0,53 |
| 16 |
XFT100020 - Bulb
-382-p25/1-21 Watt - Clear.
Rear Fog Light
|
|
|
0,53 |
| 999 |
ZUA000640 - kit rear light cover MG TF (fits
also the aftermarket clusters)
consists of SAIC p/n
400000492 Cover-rear lamp access RH
400000493 Cover-rear lamp access LH
|
|
|
17
|
