Parts |
| # |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

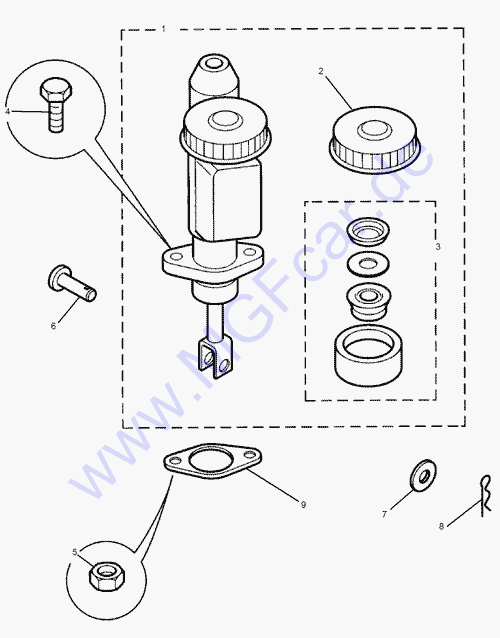

STC100083- Master cylinder clutch
|
|
1D522314 |
77,34 |
| 1 |
STC100083 - Master cylinder clutch
|
1D522315 |
|
77,34 |
| 2 |
AAU8240 - Cap assembly-tank clutch |
|
|
5,89 |
| 3 |
STY000010 - Kit-repair clutch master
cylinder
superceeded by
STY000020
|
|
|
6,20 |
| 4 |
LYG10040- Screw
- M8x 25mm,
- clutch master cylinder to mounting plate OR Refer to
MG Technical Bulletin (Body) 0023
|
XD500390 |
|
0,28 |
| 4 |
FS108257 - Screw
- M8 x 25
- clutch master cylinder to mounting plate (Refer to MG
Technical Bulletin (Body) 0023 )
|
|
|
0,39 |
| 5 |
FN108047 - Nut-flange
- M8
- clutch master cylinder to mounting plate
superceeded by
FN108041
|
|
|
0,36 |
| 6 |
PC108241 - Pin-clevis/pivot
- clutch pedal to master cylinder
|
|
|
0,31 |
| 7 |
WA108051 - Washer
- M8, plain
- clutch pedal to master cylinder
|
|
|
0,36 |
| 8 |
EDP7864- Clip-spring steel
- clutch master cylinder rod clevis pin
|
|
|
1,09 |
| 9 |
NAM1394 - Washer-sealing
- clutch master cylinder to mounting plate |
|
|
0,31 |
|
|
|
 |
