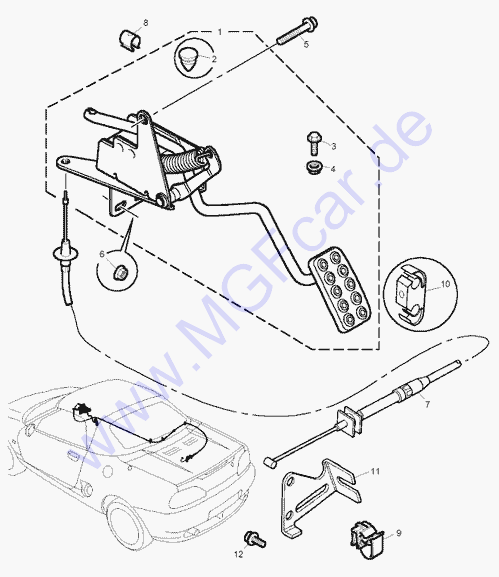

MG Cars | MGF - MG TF | Fuel, Exhaust and Emission System | Fuel & Emissions | Accelerator Pedal Assembly-RHD

Parts
# P/N, description, qty needed. from to
GBP
1 SAB101162PMP - Pedal & bracket assembly accelerator
- RHD -

2 DCP3214 - Pad-lever-pedal
- RHD -

3 FS108161 - Screw-flanged head
- M8 x 16
- RHD -

4 FN108041 - Nut-flange - M8
- RHD -

5 FB108127 - Bolt-flanged head - M8
- RHD -

6 FN106041 - Nut-flange - M6
- RHD -

6 FN106047 - Nut-flange - M6
- RHD -

7 SBB103143 - Cable assembly accelerator
- RHD -

7 SBB000280 - Cable assembly accelerator
- RHD -

8 DCP7342 - Clip
- RHD -

9 SYC100440 - Clip
- RHD -

10 SYC100600 - Clip-cable
- RHD -

11 SBU100610 - Bracket-cable accelerator

12 FS106125 - Screw-flanged head
- M6 x 12

[ back ]
[ ]
[ ]
notice: parts prices are historic. Edition app. 2003. Today you pay about double and more for some of the rare parts
