P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

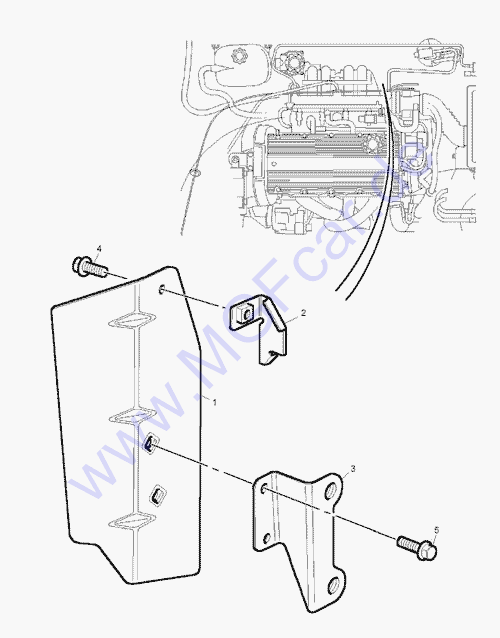

WEB101230 - Heatshield
-coolant hose
|
|
|
|
| 1 |
WEB102380 - Heatshield
-coolant hose
|
|
|
|
| 2 |
WEU100120 - Bracket-heatshield exhaust
system
- upper
|
|
|
|
| 3 |
WEU100140 - Bracket
-heatshield exhaust system
- lower
|
|
|
|
| 3 |
WEU100170 - Bracket
-heatshield exhaust system
- lower
|
|
|
|
| 4 |
FS106207 - Screw-flanged head
- M6 x 20
|
|
|
|
| 5 |
FS106167 - Screw-flanged head
- M6 x 16
|
|
|
|
| 5 |
FS106167 - Screw-flanged head
- M6 x 16
|
|
|
|
| 5 |
FS106307 - Screw-flanged head
- M6 x 30
|
|
|
|
| 901 |
LWQ100570 - Heatshield-exhaust manifold
3 screws
|
YD522573 |
|
24,60 |
| 901 |
LWQ105600 - Heatshield
-exhaust manifold
- LH
|
|
|
|
| 901 |
LWQ105610 - Heatshield
-exhaust manifold
- RH
|
|
|
|
| 901 |
LWQ105620 - Heatshield-exhaust manifold
- upper
- CVT Automatic
|
|
|
29 |
| 902 |
FN108047 - Nut-flange
- M8
|
|
|
|
| 902 |
FN108041 - Nut-flange
- M8
|
|
|
|
| 903 |
AFP663 - Screw-washer
|
|
|
|
| 904 |
TE108101 - Stud
- M8 x 50
|
|
|
|
| 905 |
WYF100300 - Spacer
|
|
|
|
| 905 |
WYF000040 - Spacer
|
|
|
|
