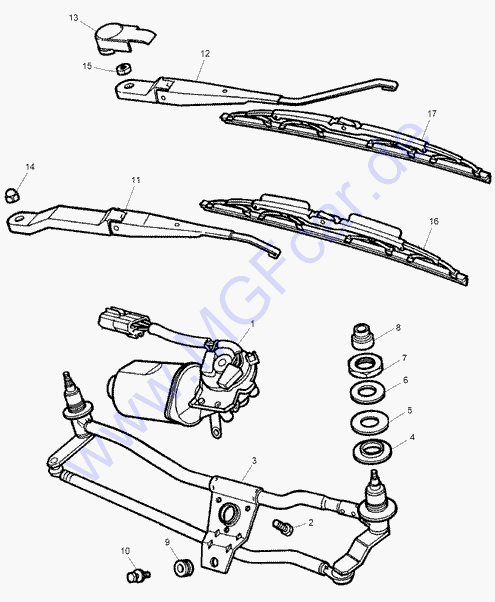

Parts |
 |
P/N, description,
qty needed. |
from |
to |
GBP
|
| 1 |
DLB000260 - Motor &
bracket assembly-windscreen wiper
|
|
YD514325 |
140,40 |
| 1 |
DLB000270 - Motor &
bracket assembly-windscreen wiper
changed connector |
YD514326 |
|
150,80 |
| xx |
special spare,
not MG listed
ball bearing for
wiper motor / gearbox
(Number 608 (DIN 625-1))
Di 8 mm , Da 22 mm, B 7 mm
(see drawing at the bottom of this site)
click
how to change
|
|
|
|
| 1A |
Not an alternative to the MGF wiper motor:
Do not use LandRover p/n DLB10153
as replacement cause they swapped live and ground connection
between Landy and MG |
|
|
|
| 2 |
EYG100160 - Bolt - 18mm
|
|
|
3,10 |
| 3 |
DKD100450 - Mechanism-windscreen
wiper
- RHD - |
|
|
75,40 |
| 3 |
DKD100440 - Mechanism-windscreen
wiper
- LHD - |
|
|
76,92 |
| 4 |
DKK100060 - Mounting-rubber
|
|
|
3,5 |
| 5 |
DYF100510 - Washer-sealing
joint wiper linkage
|
|
|
7,87 |
| 6 |
DYF100500 - Washer-plain
|
|
|
7,53 |
| 7 |
DYH100710 - Nut-hexagonal-thin
|
|
|
7,53 |
| 8 |
DLD100100 - Seal-wiper
linkage joint
1 only !! |
|
|
3,47 |
| 9 |
DLW100040 - Mounting-wiper
motor link rubber
|
|
|
5,17 |
| 10 |
DYP10015 - Bolt-washer
|
|
|
0,39 |
| 11 |
DKB102030 - Arm-driver
windscreen wiper
- RHD - Except: Australia |
|
|
21,15 |
| 11 |
DKB102540 - Arm-driver
windscreen wiper
- RHD - Australia |
|
|
21,46 |
| 11 |
DKB102050 - Arm-driver
windscreen wiper
- LHD - |
|
|
21,15 |
| 12 |
DKB102040 - Arm-passenger
windscreen wiper
- RHD - Except: Australia |
|
|
21,15 |
| 12 |
DKB102550 - Arm-passenger
windscreen wiper
- RHD - Australia |
|
|
24,46 |
| 12 |
DKB102060 - Arm-passenger
windscreen wiper
- LHD - |
|
|
21,15 |
| 13 |
DCP4918 - Cap-windscreen
wiper spindle
|
|
|
1,64 |
| 14 |
DYH100780 - Nut-domed
|
|
|
2,18 |
| 15 |
NT108041 - Nut
|
|
|
0,37 |
| 16 |
DKC000190 - Blade-driver windscreen
wiper
RHD - Except: Australia
- 510mm
Aerotwin AR500S , (2 x 500mm)
Aerotwin AR503S (500 +475)
|
|
|
11,08 |
| 16 |
DKC100840 - Blade-driver
windscreen wiper
- RHD - Australia
- 510mm |
|
|
12,93 |
| 16 |
DKC100670 - Blade-driver
windscreen wiper
- LHD -
- 510mm |
|
|
11,60 |
| 17 |
DKC100660 - Blade-passenger
windscreen wiper
- Except: Australia
- 510mm
AeroTwin AR500S
|
|
|
11,08 |
| 17 |
DKC100850 - Blade-passenger
windscreen wiper
RHD - Australia
- 510mm |
|
|
12,93 |
| 18 |

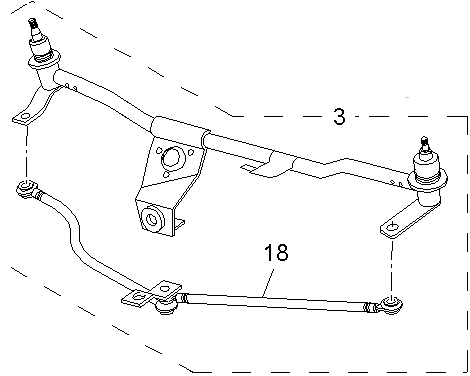

DKT000010 Kit - windscreen
wiper linkage
Original with plastic end fittings
|
|
|
15,26 |
| 18 |
DKT000010SLP
Kit - windscreen wiper linkage
(metal end fittings)
Rimmer Bros
+44 (0)1522 563344 or mgrover@rimmerbros.co.uk |
|
|
53,16 |
|
|
|
  |
