Carl´s magic pump

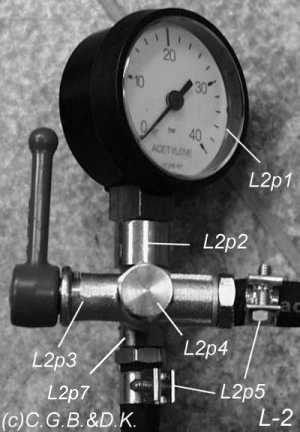

L2 Group Valve and Gauge

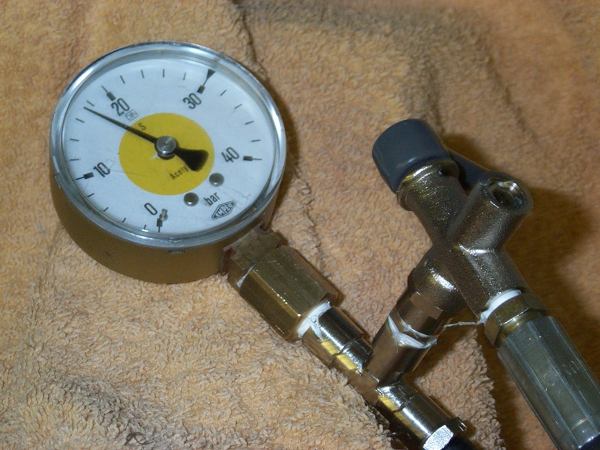

Version Carl Version Dieter

No.	description	acc.	material
	Single Parts L-2	1	.
L2p1	pressure gauge 40bar..Outer Diameter 63 mm	1	Acetylene manometer or any else standard pressure gauge range 0 ... 40 Bar. G1/4 inch, (costs app. 5 GBP)
L2p2	adaption joint to manometer 1/4' to 1/8'	1	threaded outer 1/8 inch (inner thread matching to gauge to fit on “T”- joint.)
L2p3	tap with handle	1	(3-way tap will also be OK but one outlet blinded (L2p4) and not used as in my prototype.) tap 1/8 inch manufacturer 'Legris' (cost app 15 GBP)
L2p4	blind screw 1/8 inch	1	1/8 inch matching to t-joint
L2p5	hose clamp	2	diameter 11 mm for hydraulic hose
L2p6	Pipe connector joint	2	1/8 inch connection to hydraulic hose
L2p7	“T” – joint. (3x 1/8 inch thread) + double threaded nippel 1/8-1/8 inch	1

Go to [Building] [Using] [L-0 Pump Unit] [L-1] [L-2] [L-3] [L-4]
(c) Carl G.B. 19.11.99 edited by Dieter Koennecke and spell checked by Tony Smith
