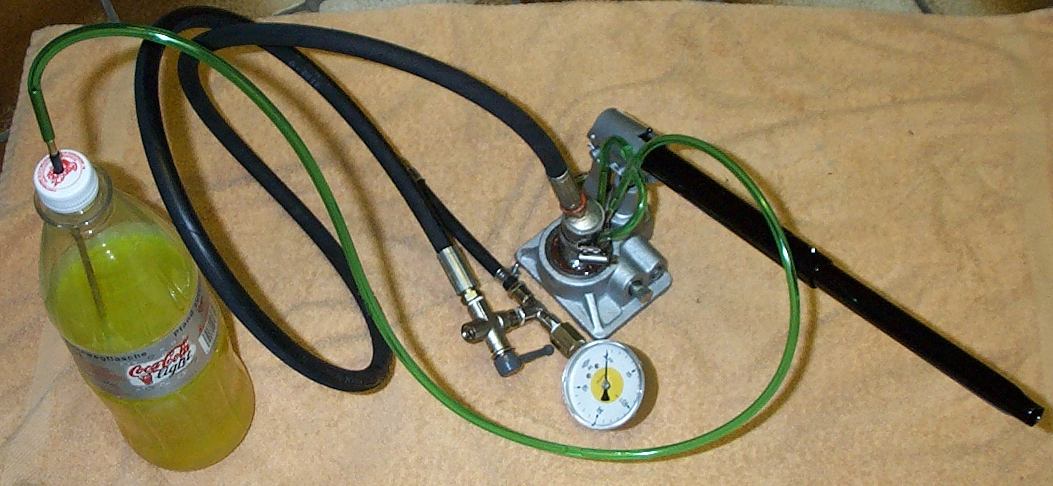

Carl´s magic pump

Documents and Parts List

No.	description	acc.	material

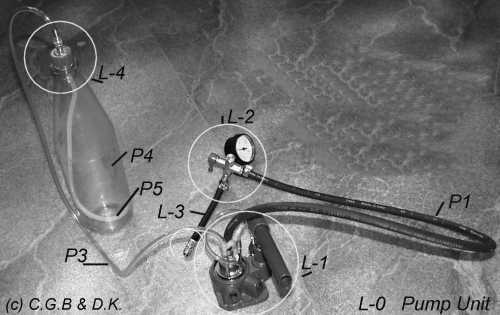

L-O	Pump Unit group	1	this page
L-1	Pump group	1
L-2	Valve/Gauge group	1
L-3	connection hose	1
L-4	Tank Cap group	1
	Single Parts L-0	1
P1	Pump hose - .....	1	Armed hydraulic hose to fit on connections. purchased ready fitted with 1/8' outer threaded connectors or self made, may be some work on a lathe necessary on connectionns to make fit on small inner diameter of hose. Hydraulic pressure pipe, diameter 5 mm, both ends with 1/8 inch outer thread joints or, Polyamid hose of inner diameter 3mm, outer diameter 5mm (pressure range 33 Bar)
P3	suction hose	1.5 m	plastic hose clear , diameter 5 mm i.e. from aquarius shop
P4	Tank, Coca Cola bottle 2 l (empty) ;-)	1
P5	sump tank hose	0.3 m	plastic hose clear diameter 5 mm
xx	Hydralastic liquid	1 l	“Green liquid “ from your friendly garage man. (!) MG Part No. GZS1486 VDS000030 (app 3 GBP/litre) got 1 litre used liquid and filtered it in a Melitta-filter.
	Instructions	.
I-1	Building Instructions for this pump	1
I-2	Using Instructions for hight adjustment	1
