MGF impact with stone on the road

pilot error of the driver ;-)
Guilty for this damage was a stone, looking out of a bumpy road. Find below the pictures of
a temporary unusual repair of the unusual broken gear ball joint.
This is hard stuff. Don't try to copy, but learn how the gear selection works.

how to refill	how to dismantle	how to replace	images of a cable repair job
	snapped cable replacement		how to cut down the gear stick

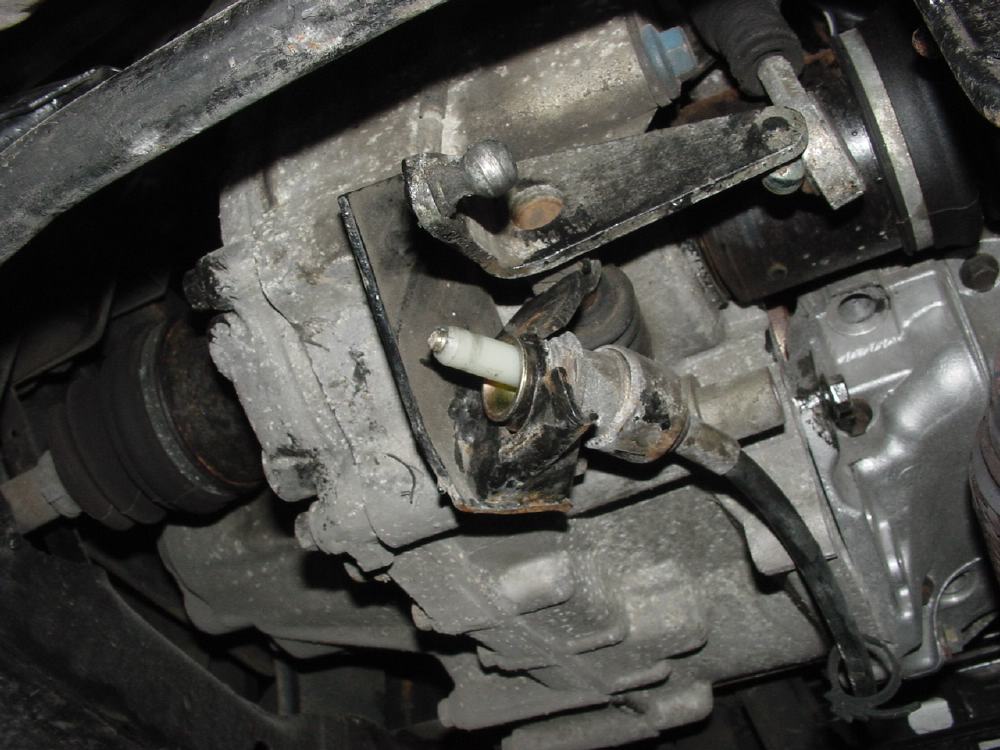

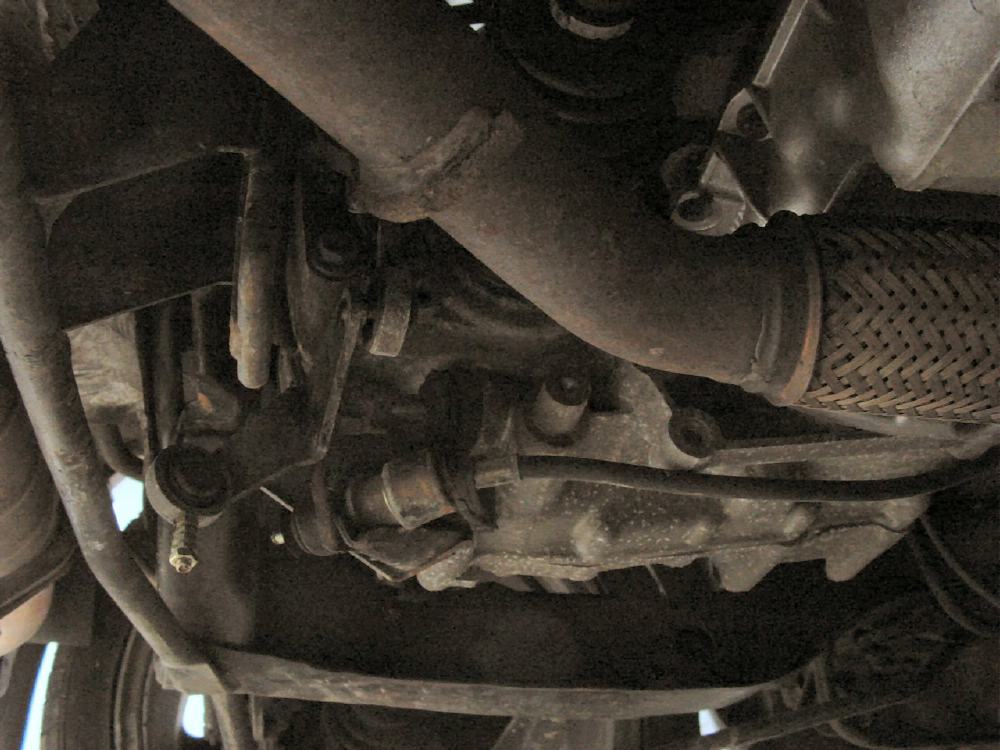

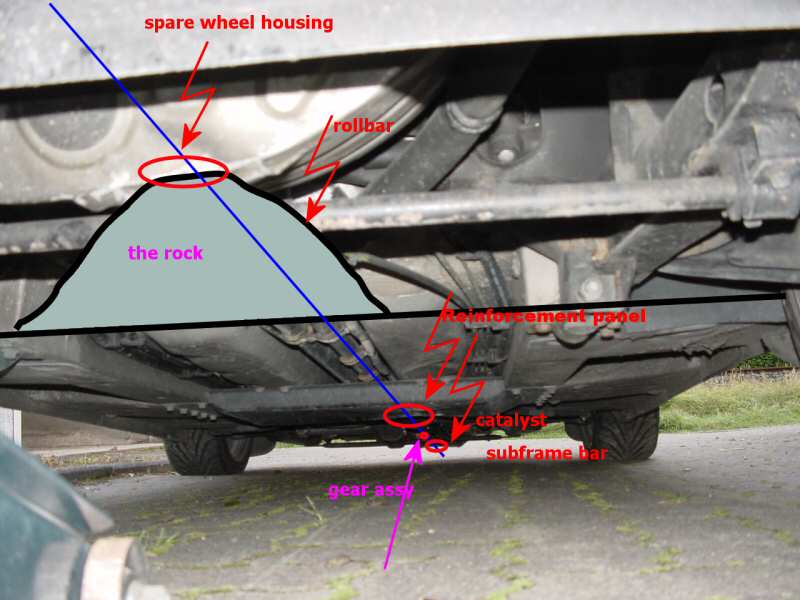

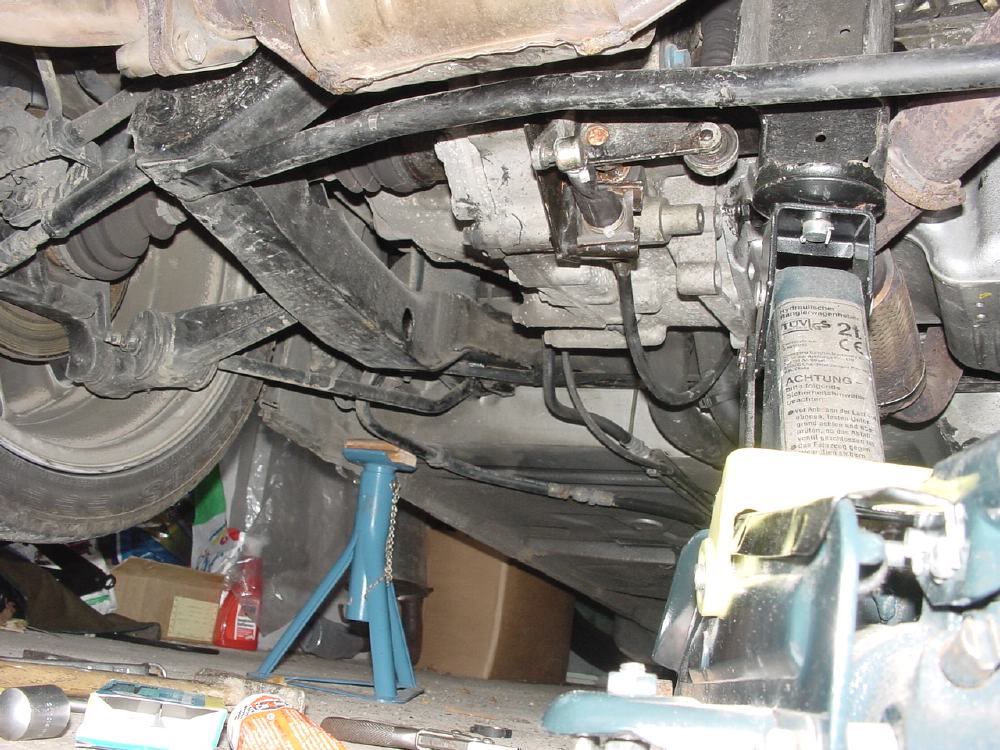

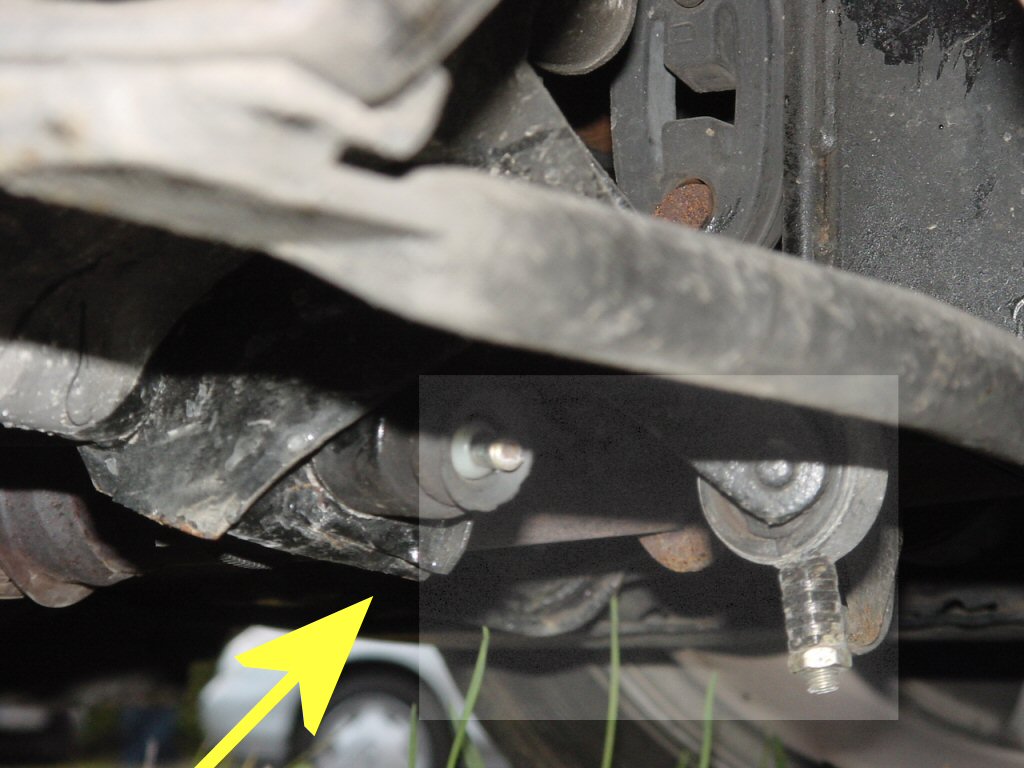

First spot on the damage. The way over the rock.	Errr.... thread joint broken	axle stand for secure works	in this case put not under the usual location subframe bearing, but under body work. Added some piece of timber.

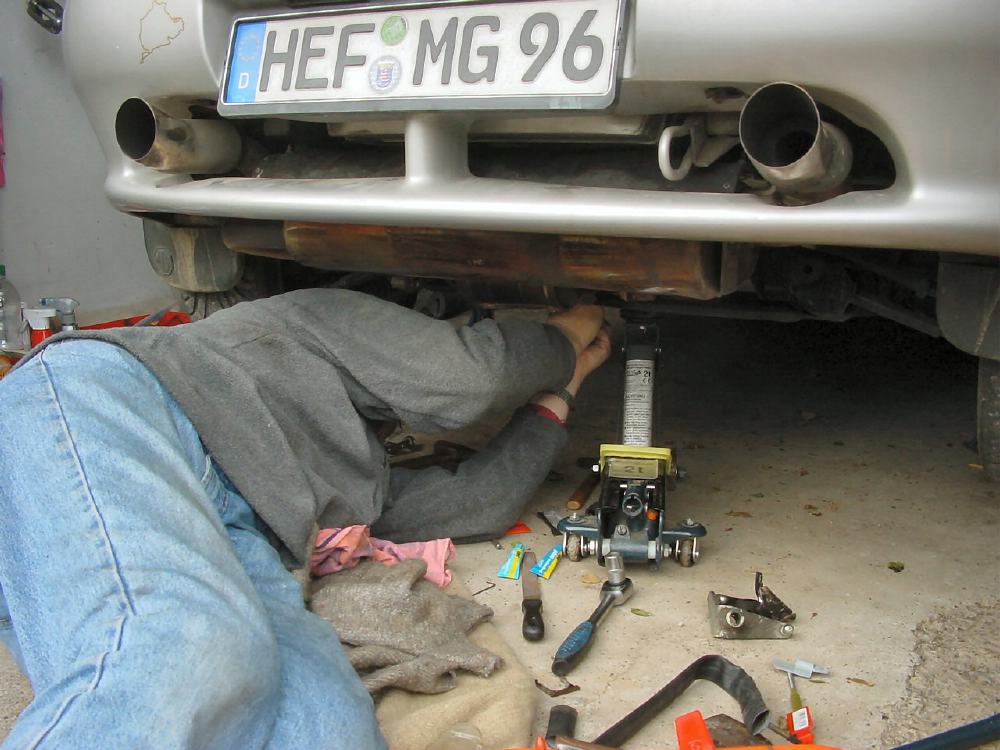

worker	crunshed bracket side view	crunshed bracket in total view	bent cable socket

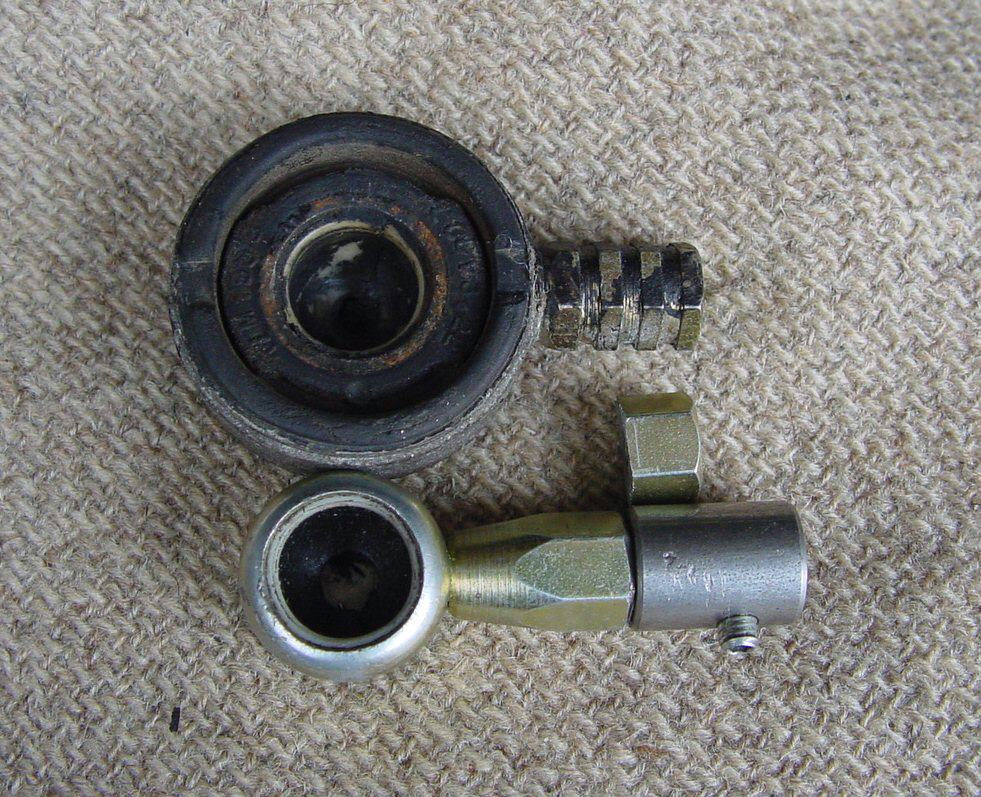

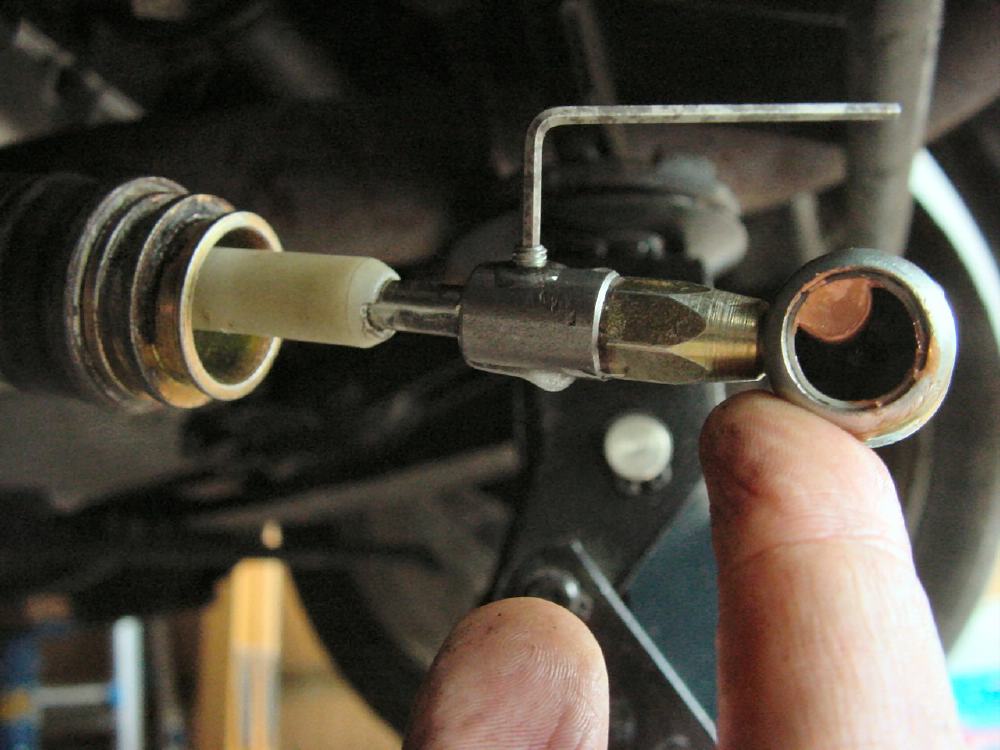

crumpled	DIY adaptor	DIY adaptor	strange directions ;-)

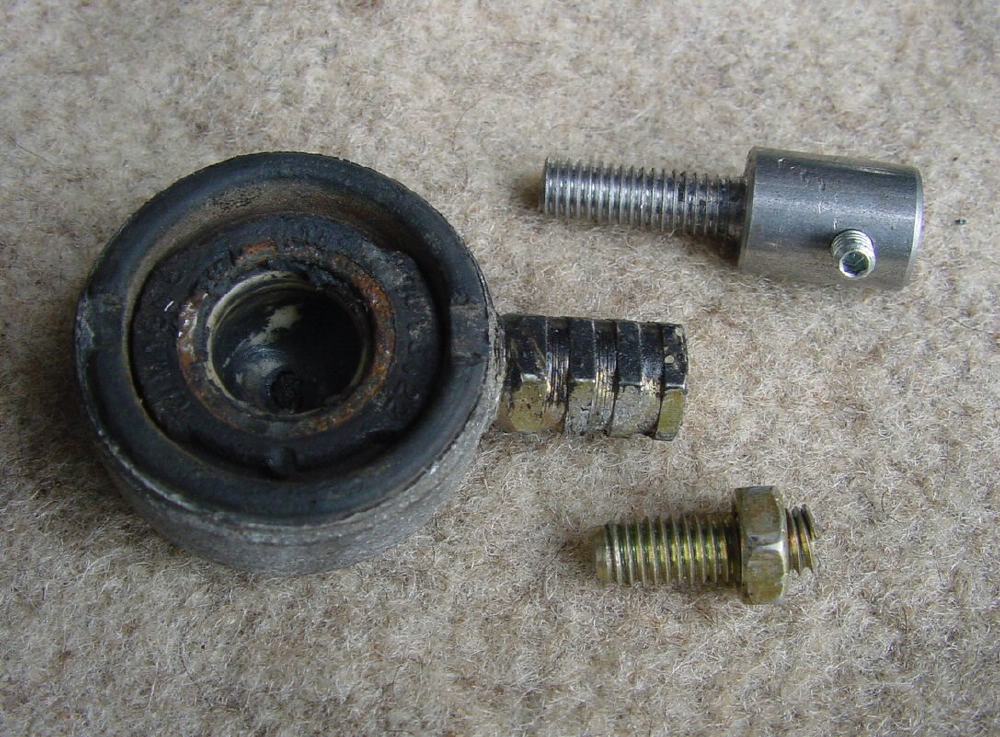

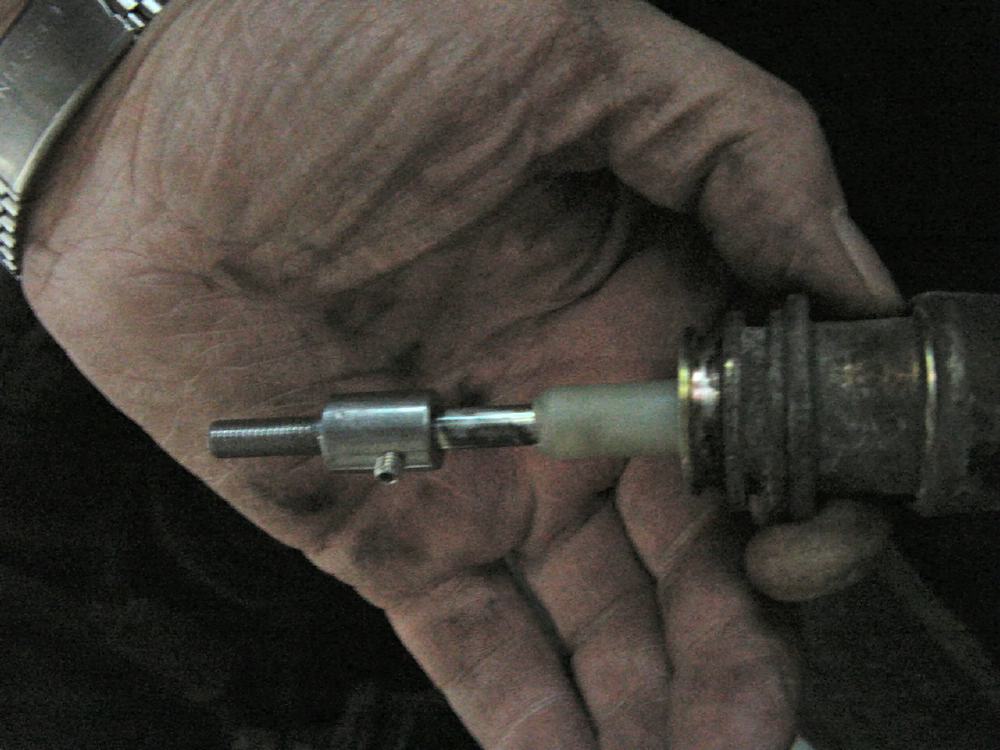

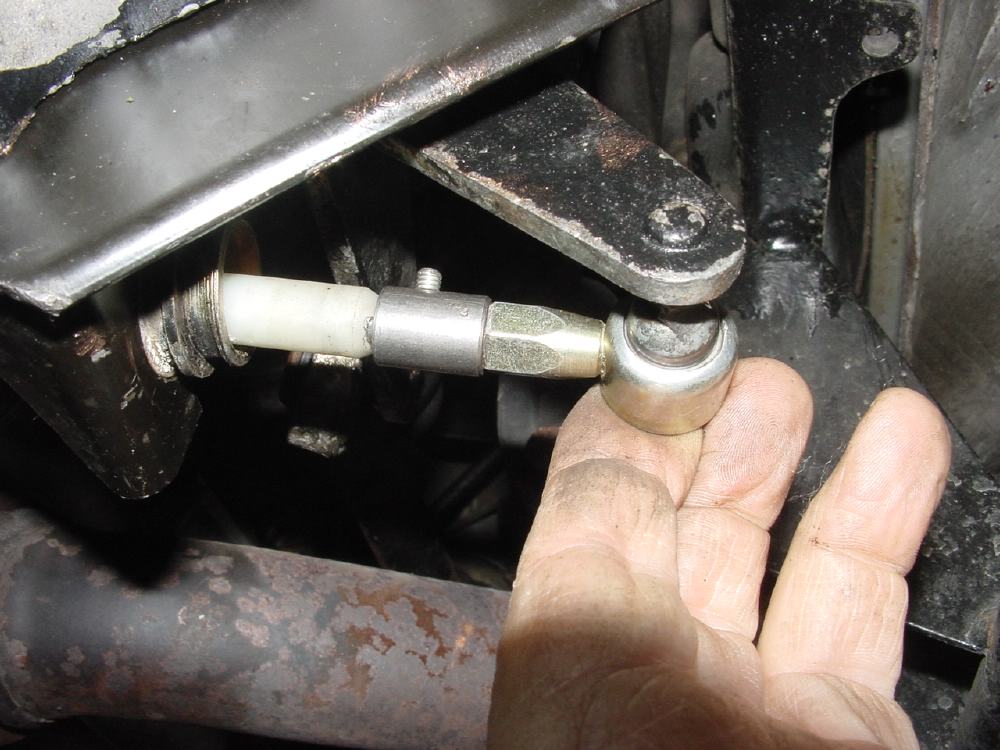

idea to reconnect	new thread to cable end	black bracket 17mm head bolts (gear shaft seal shown)	clip off, roll pin out

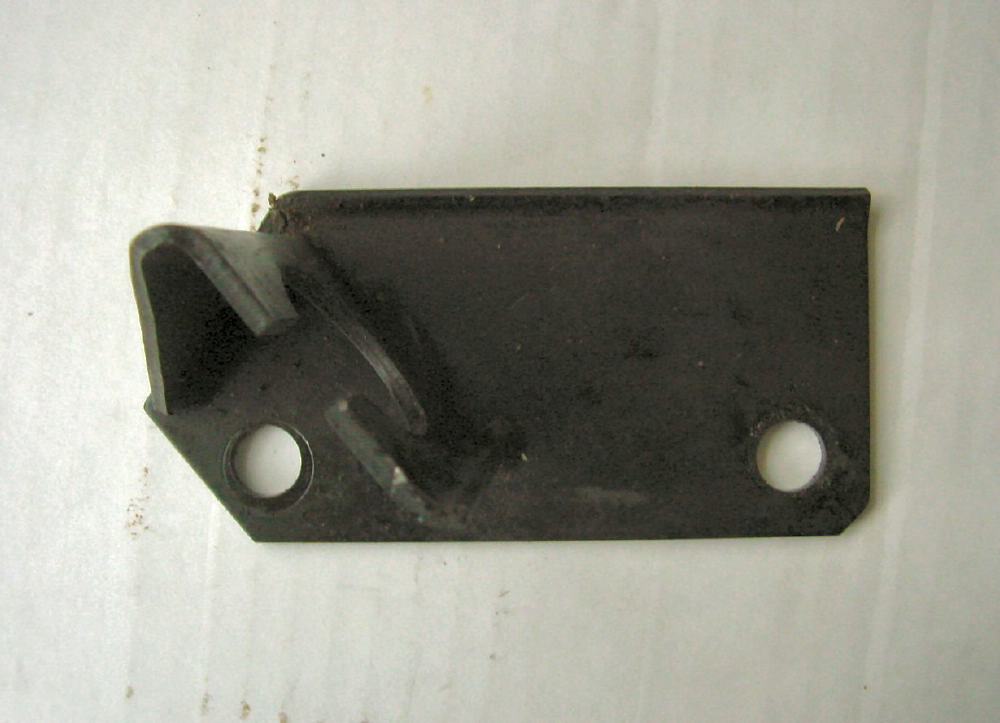

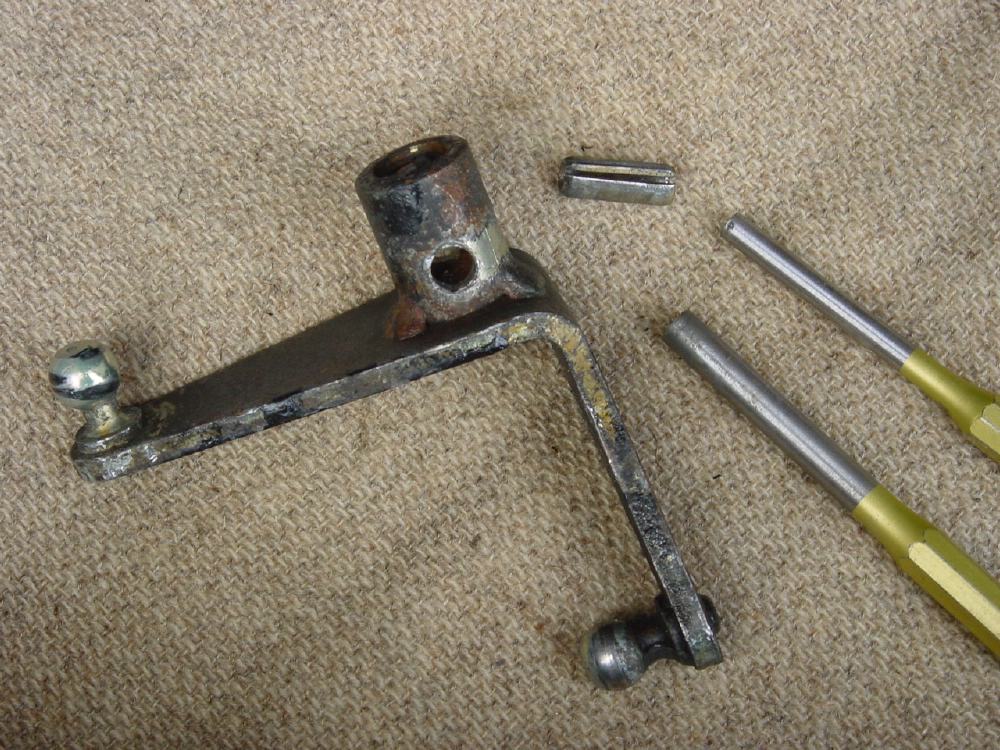

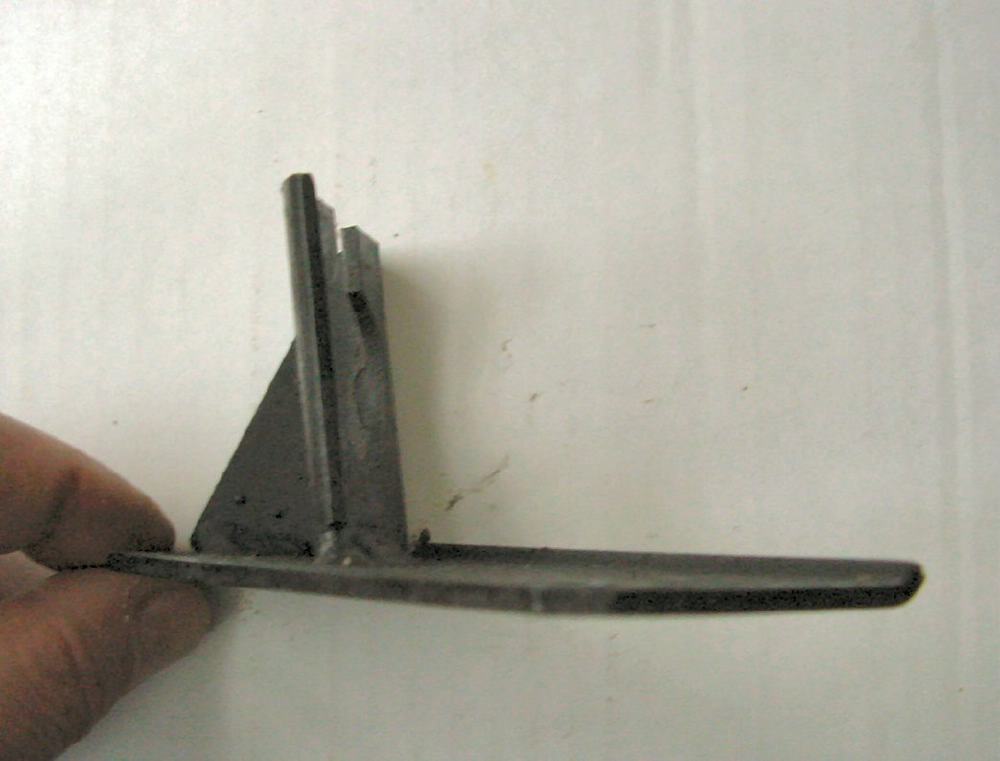

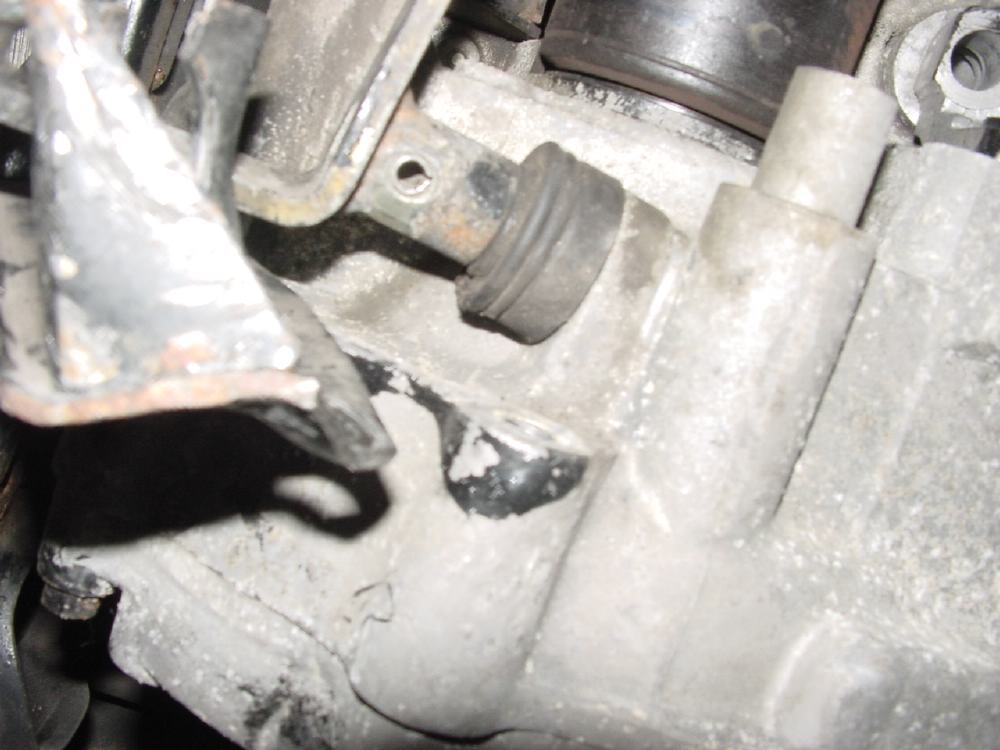

rolled pin live	UKE100610 bell crank 8mm drill	UKU100390 bracket	UKU100390 cambered cable slot

DSC04191	DSC04258	8mm pin drift	8mm pin drift

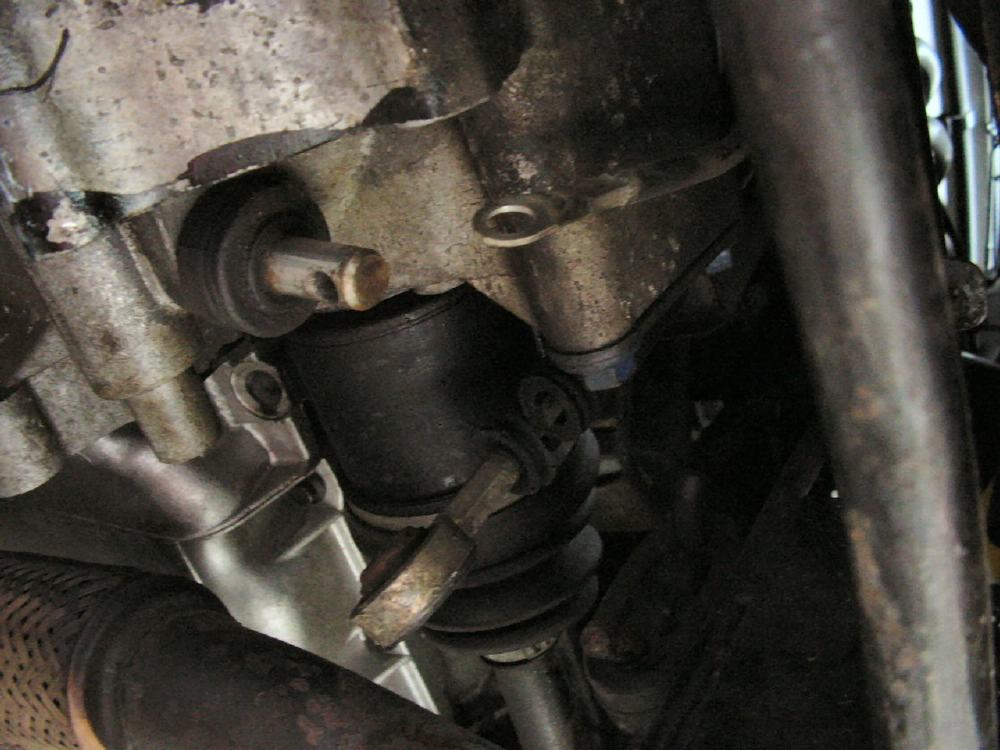

bell crank off. Notice ground cable	6mm and 8mm pin drive PA116221	new bracket 17mm head bolts	bolt on

looks to long	cut by 6mm and used the other	looks better	file slot for grab screw

nice slot	third gear. Strange, ehy ?	second	first

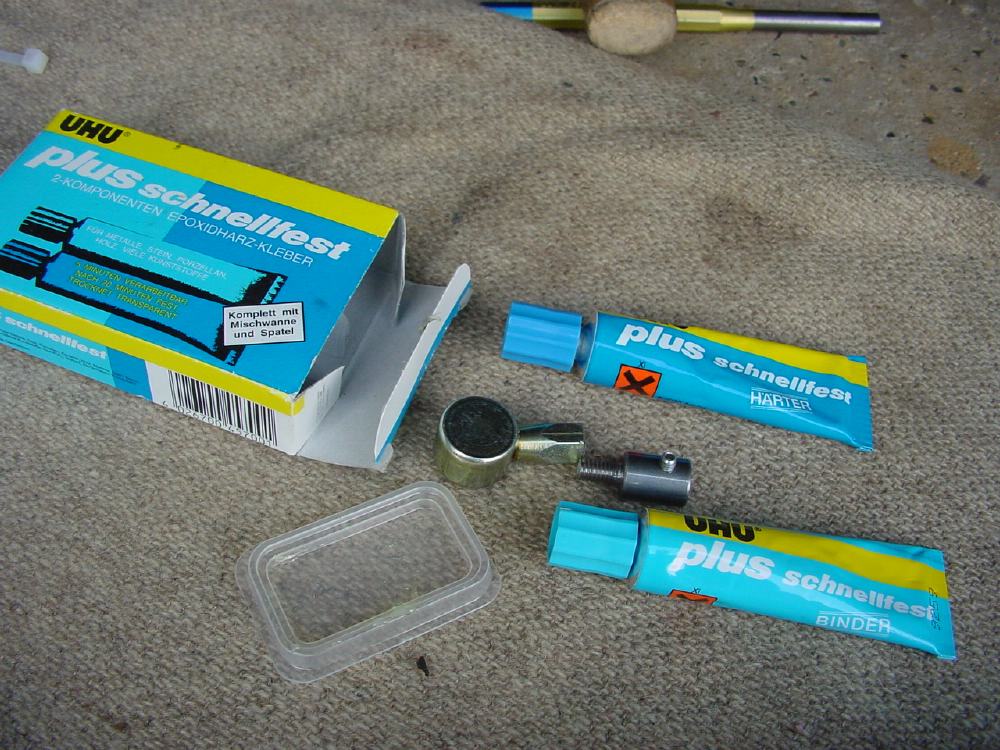

neutral	2 comp. adhesive	put on	check

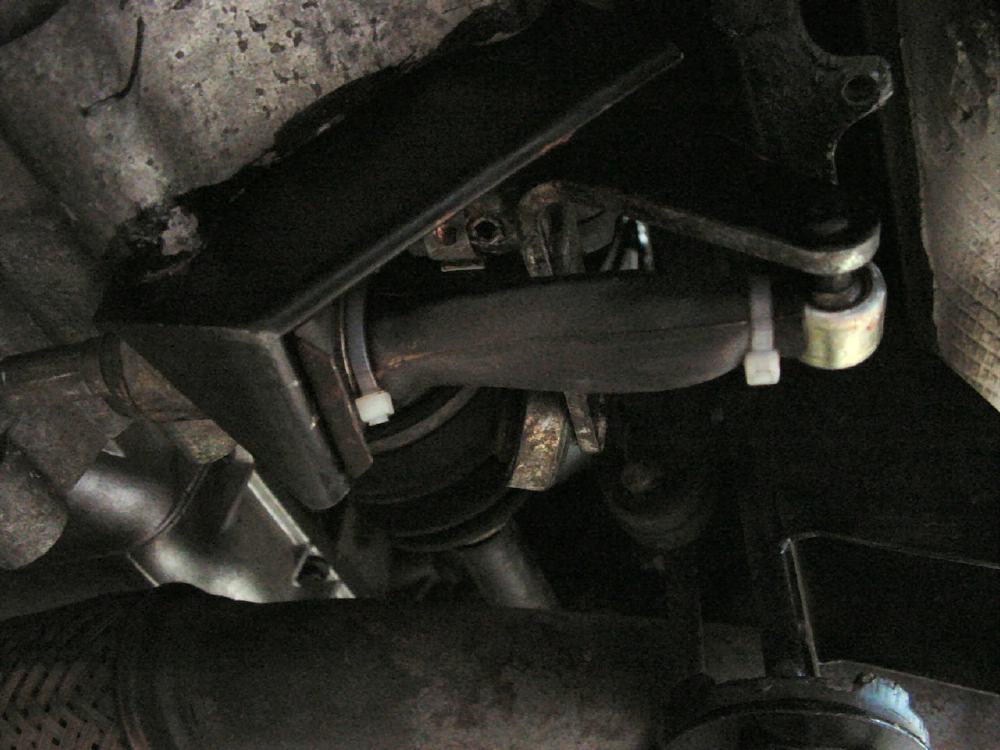

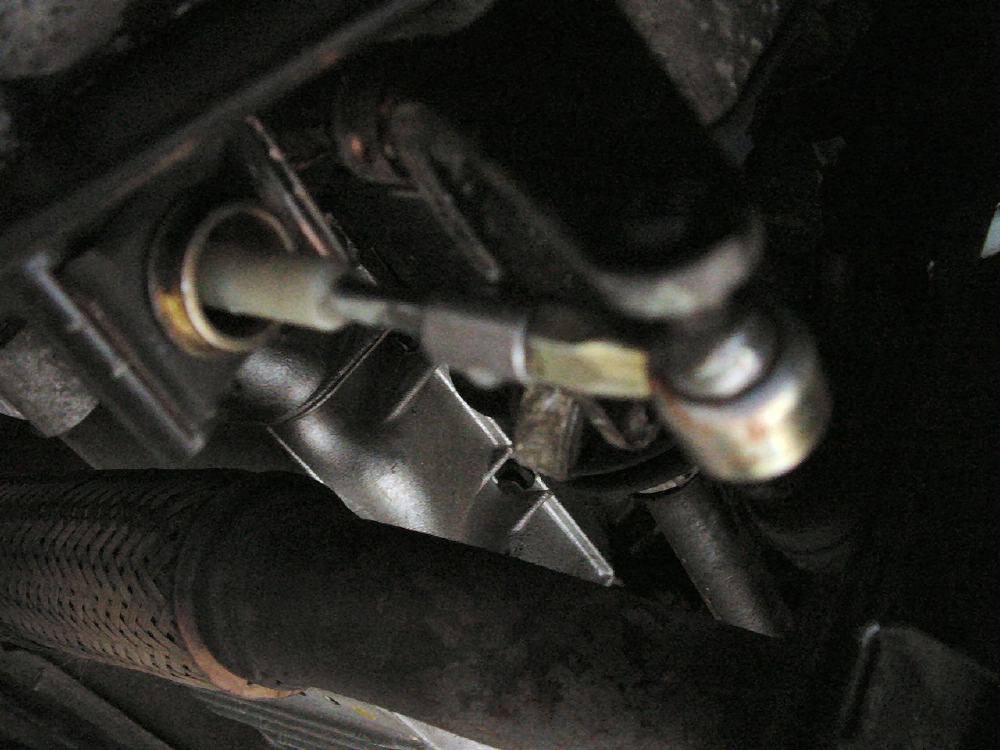

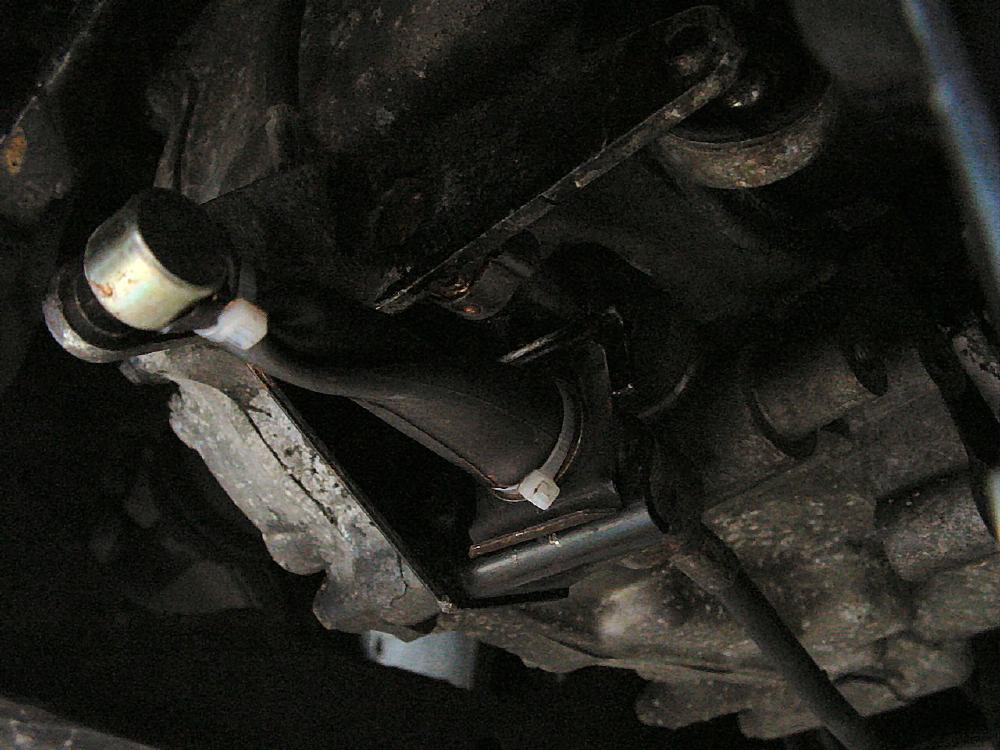

DSC04285	lovely :(	bicycle hose cut and cable ties	bicycle hose and cable ties

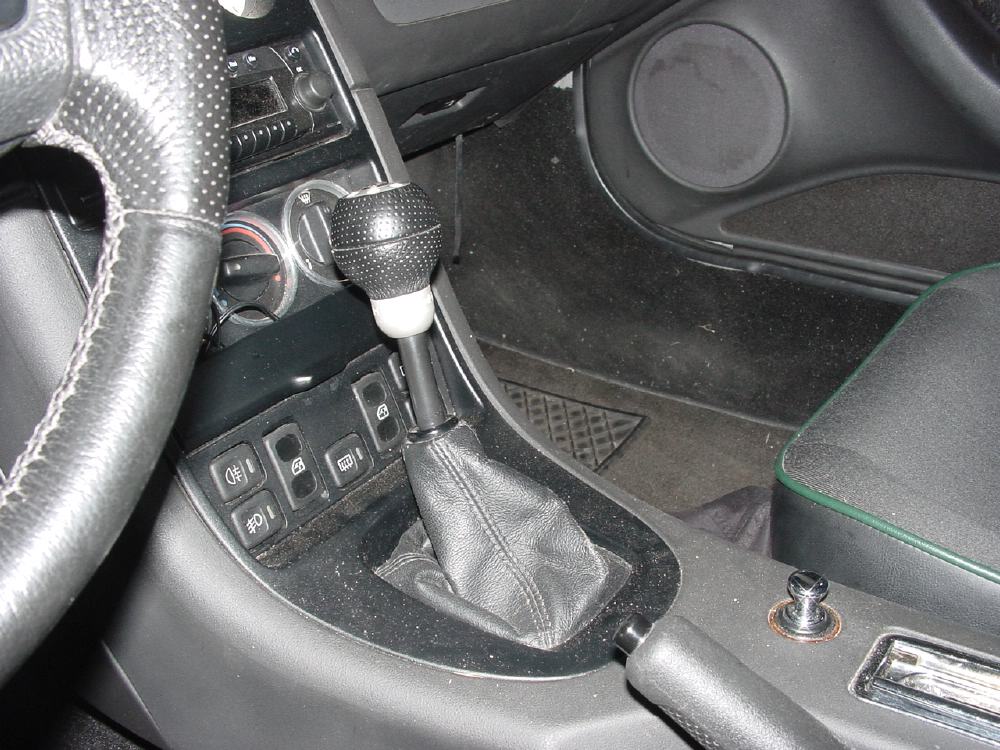

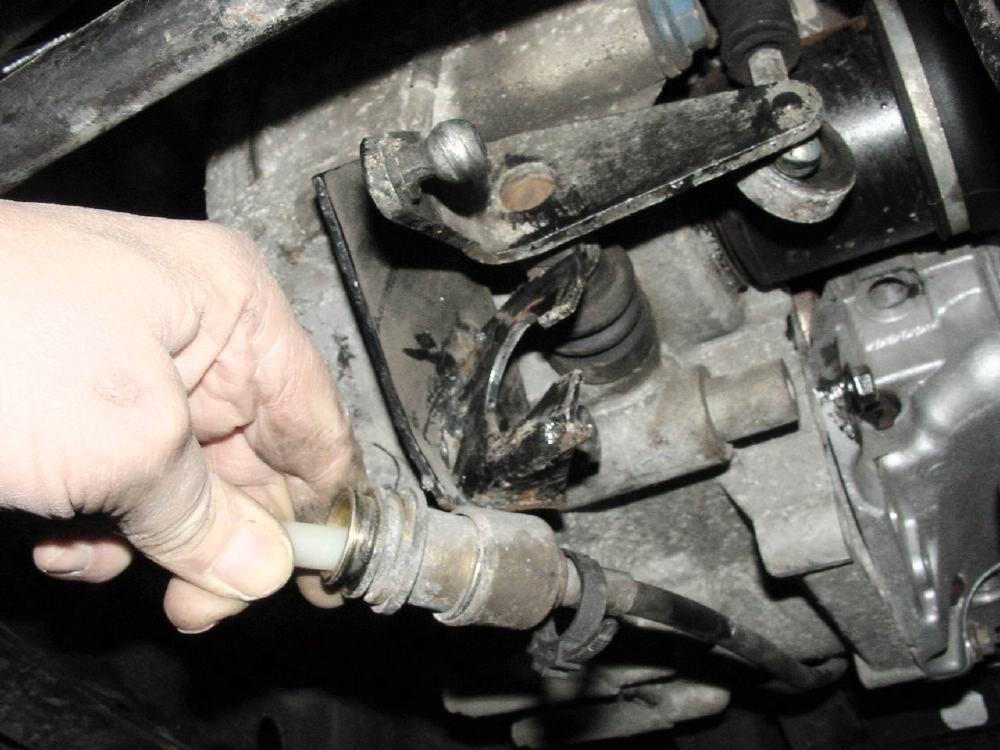

total view	bent

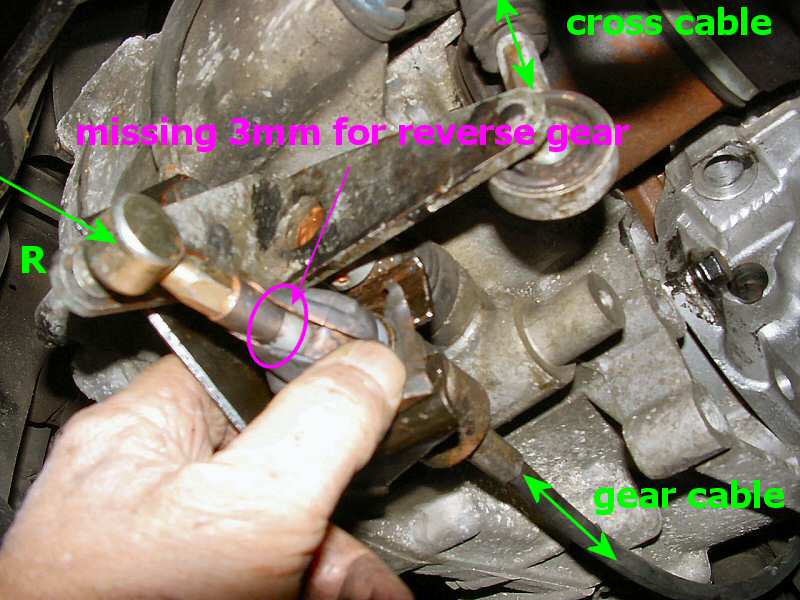

	finally after the first test found the reverse gear getting in badly. There's missing some mm for the pulling of the gear cable	take the hacksaw and cut :) Should have done that already before mounting the bicycle hose gaitor.

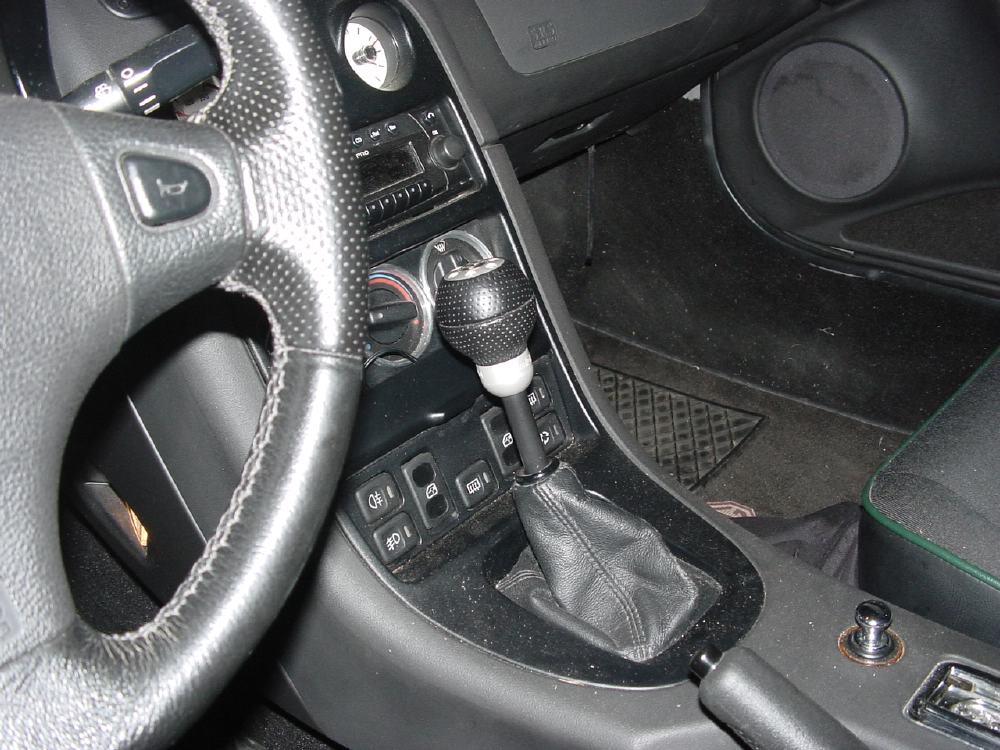

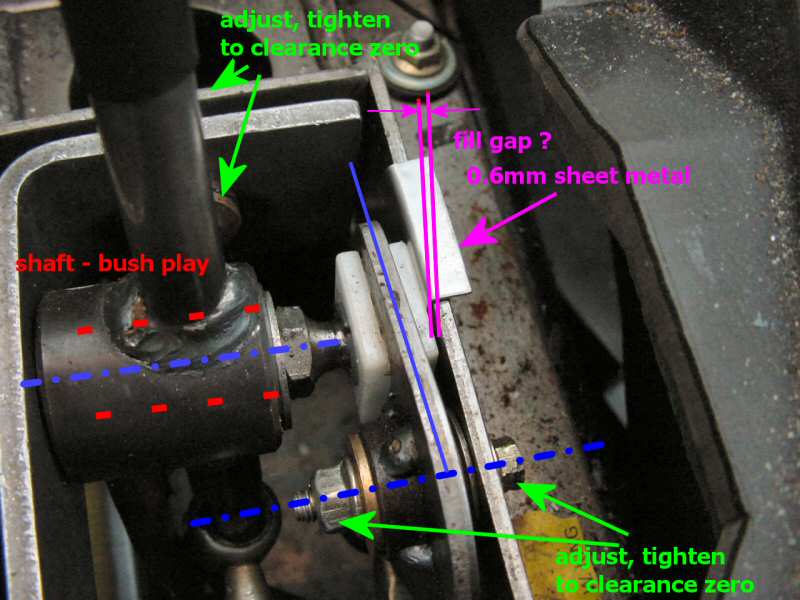

	rattle stick MPG 5 Meg no clearance MPG 5 Meg
		the gap	the fixture

	below the pics from an earlier cable change job

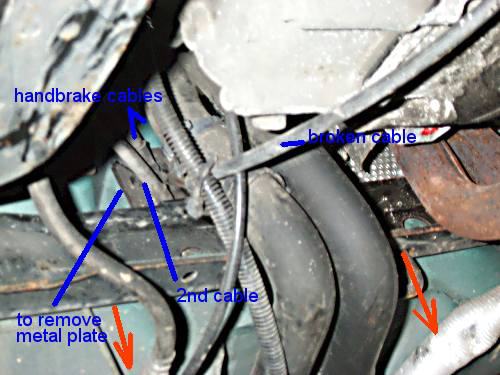

		location where the cable cracks usually	slot plate

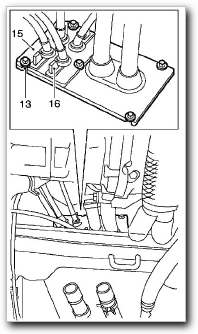

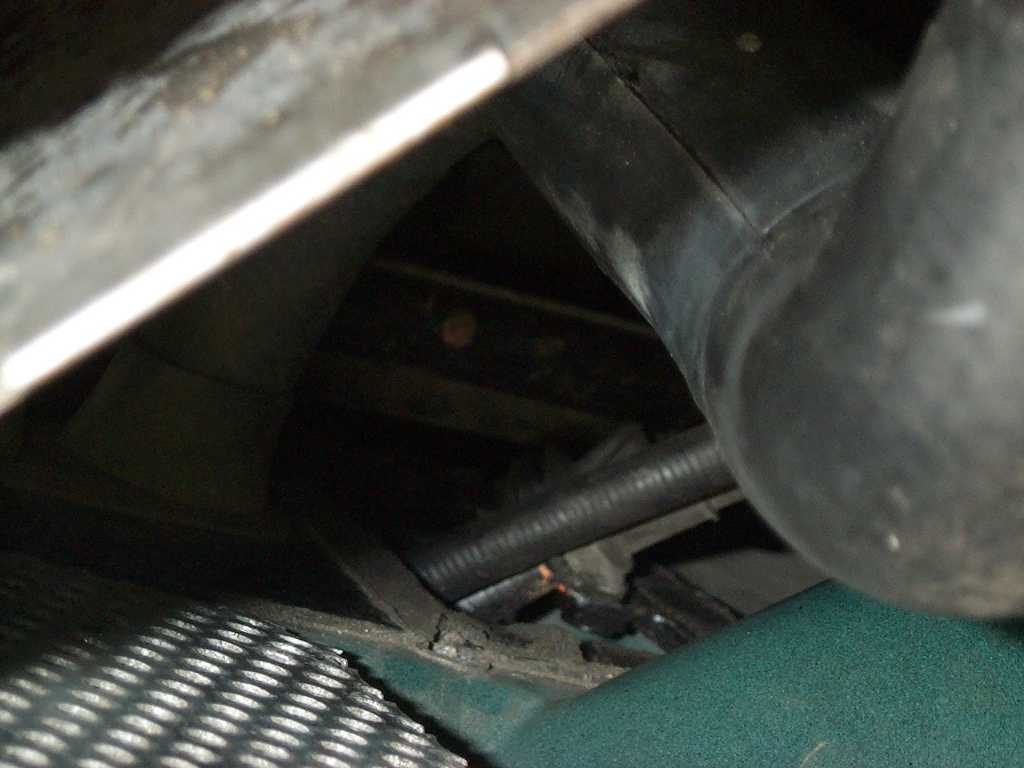

slot plate to tunnel	another view to the slot plate behind the subframe	the manual

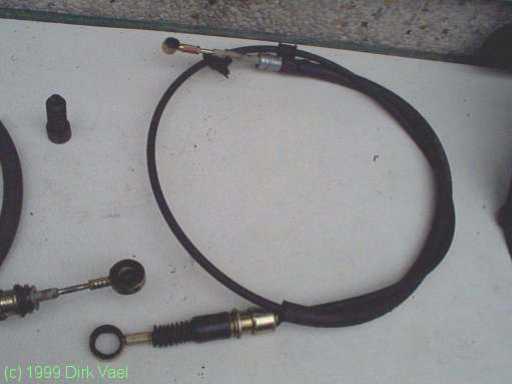

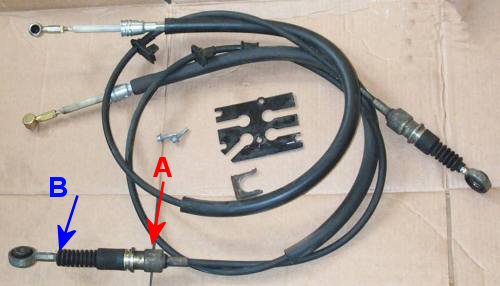

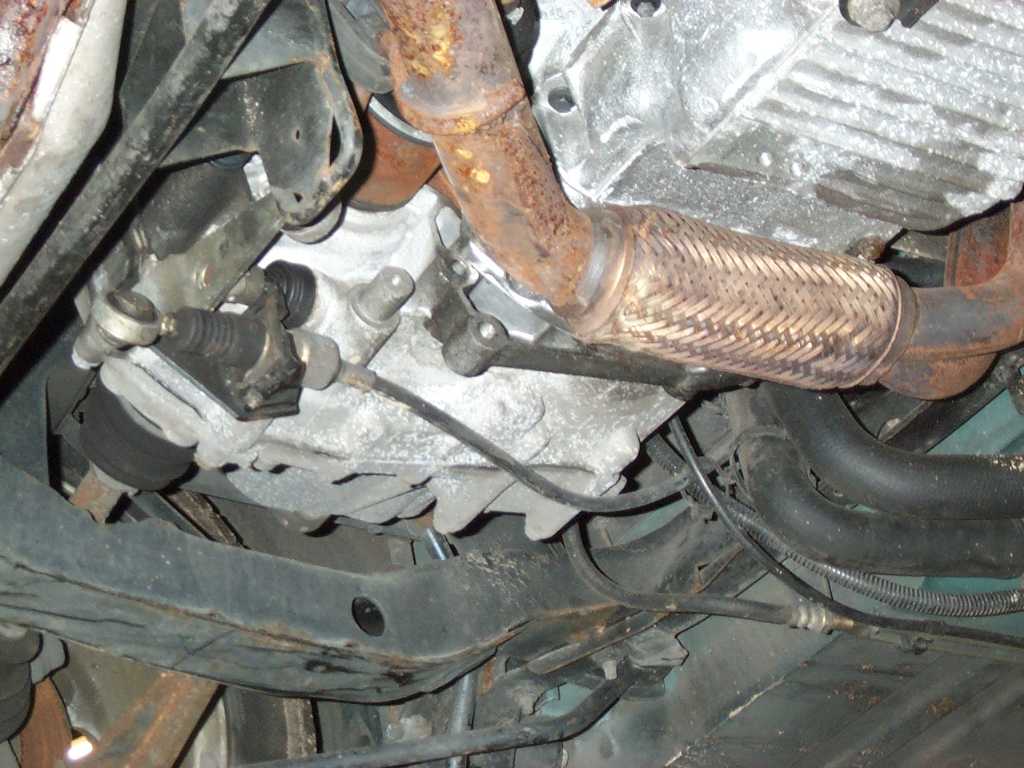

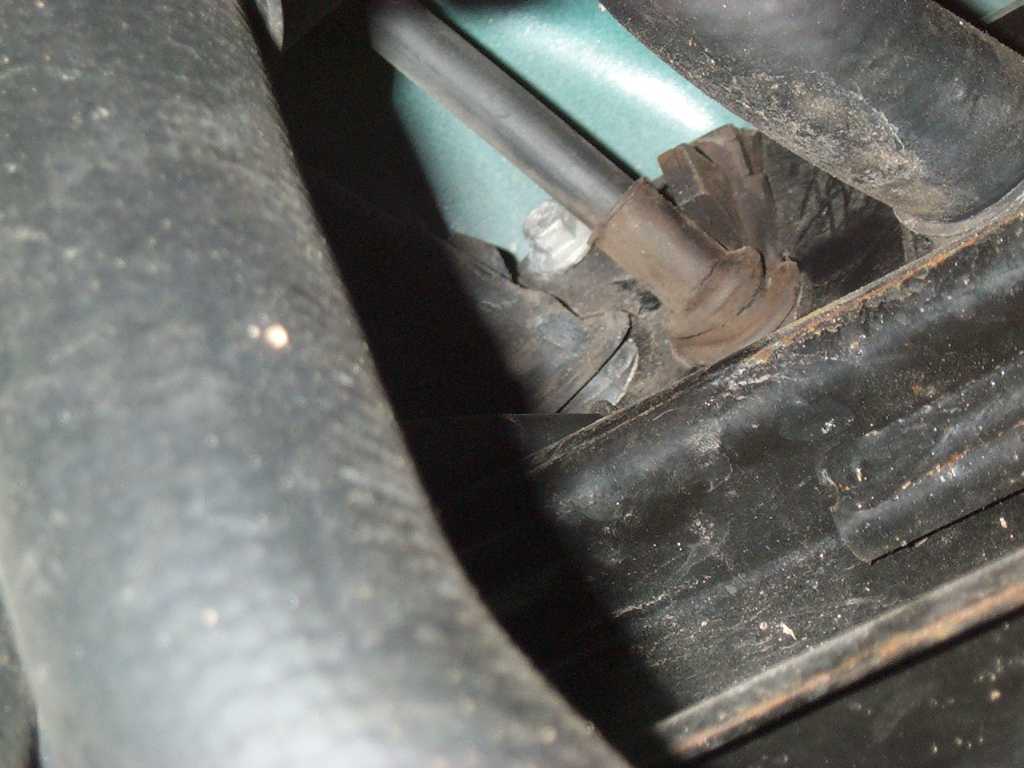

b_gearP001620	broken_material_cp_2642	gearDCP_2622	cable entry to plate

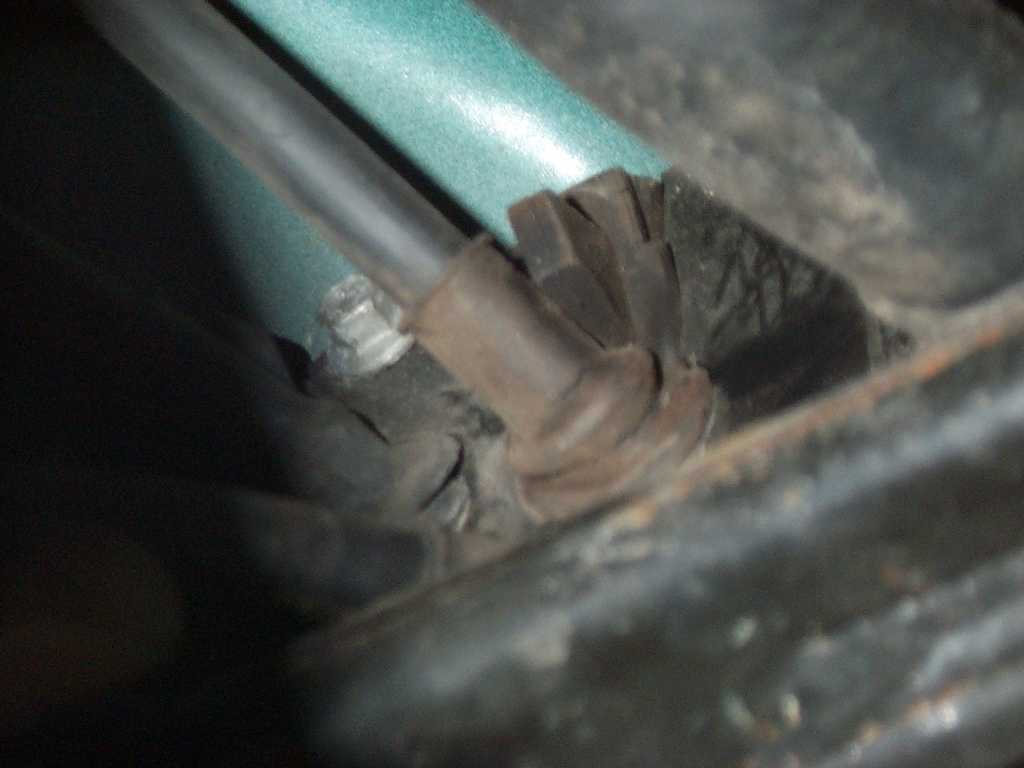

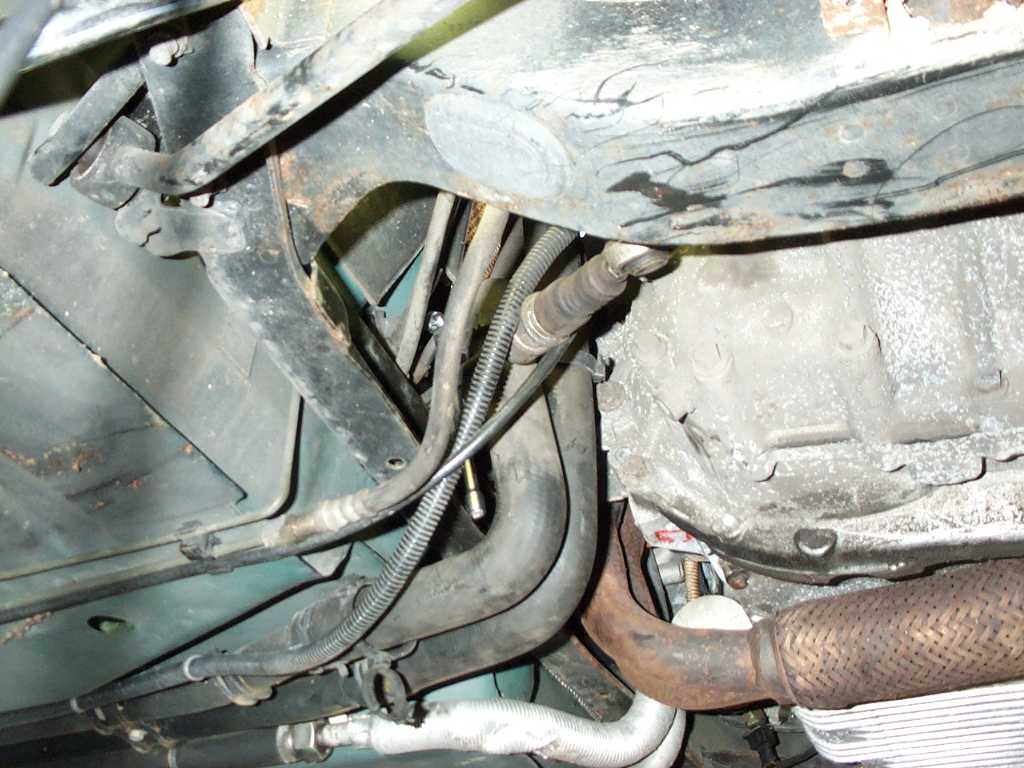

gearDcp_2624	gearDCP_2628	gearDCP_2630	the parts

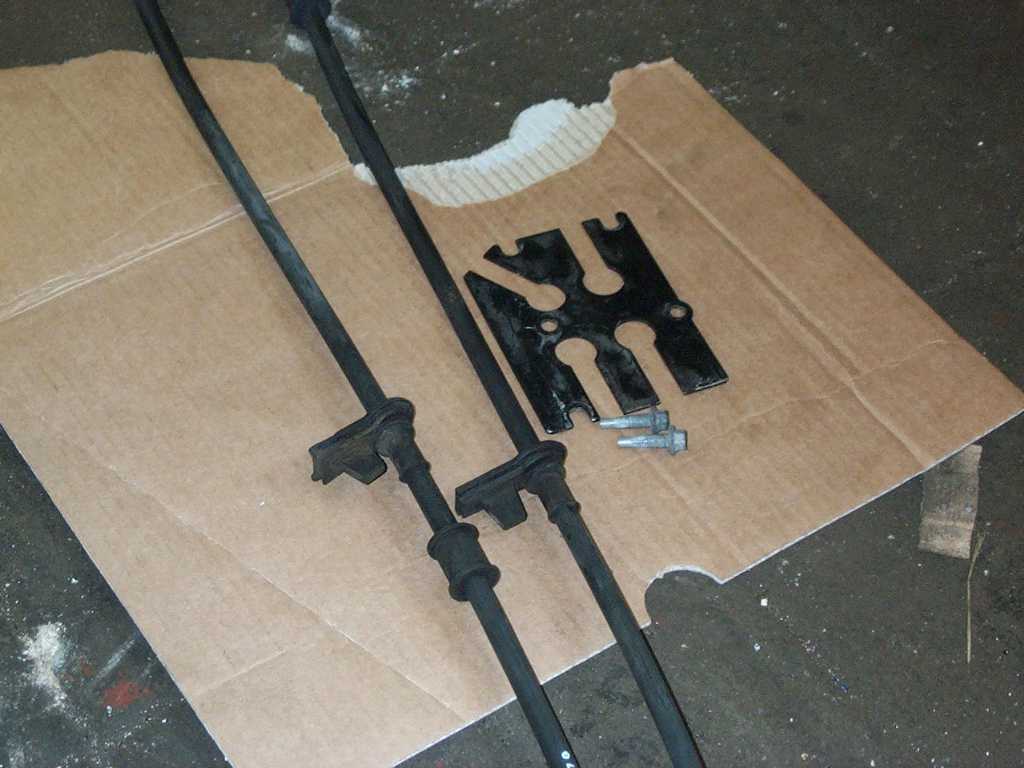

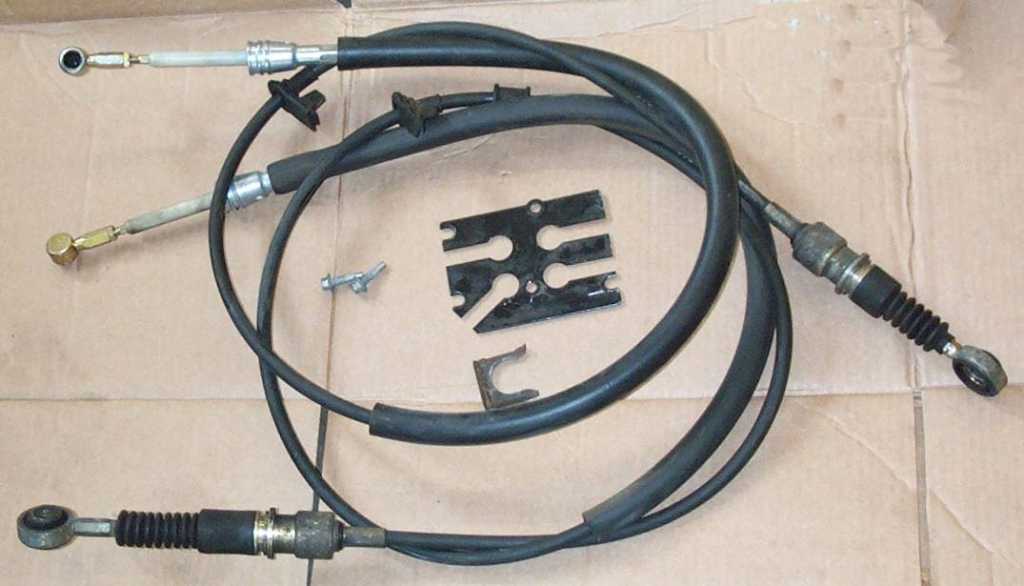

rubber gasket	top view	top view	the parts

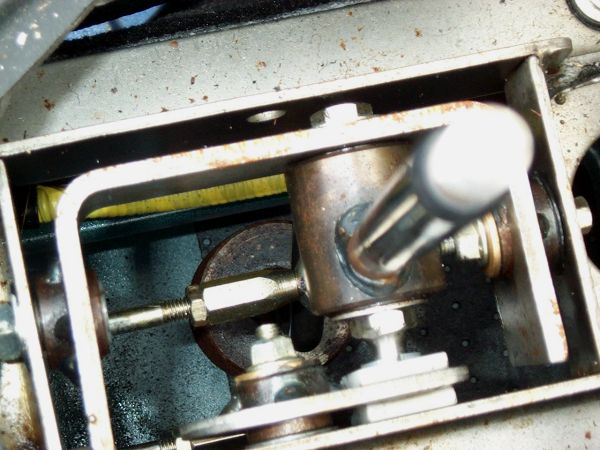

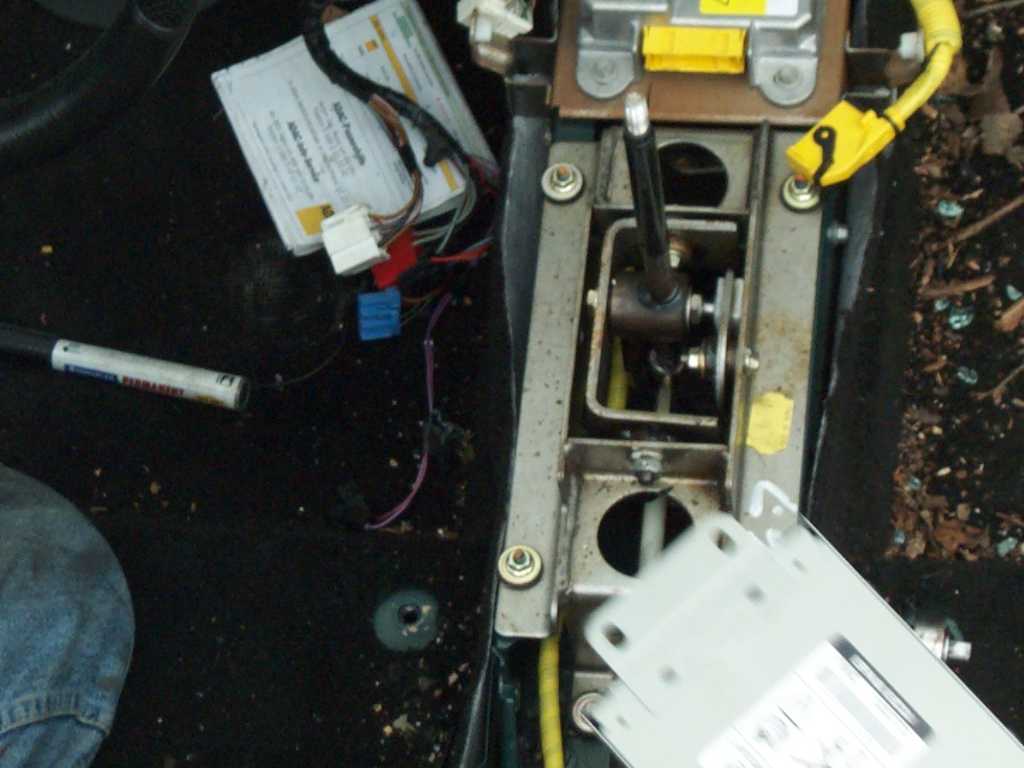

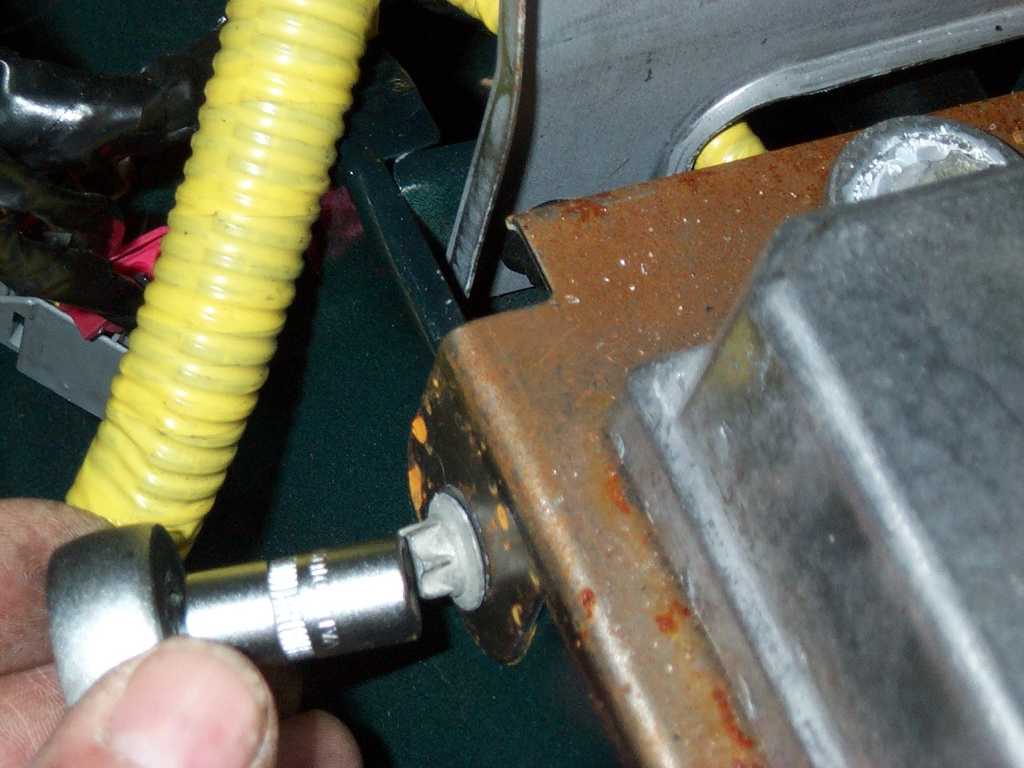

gear selector	selector top view	selector top view	torx bolts

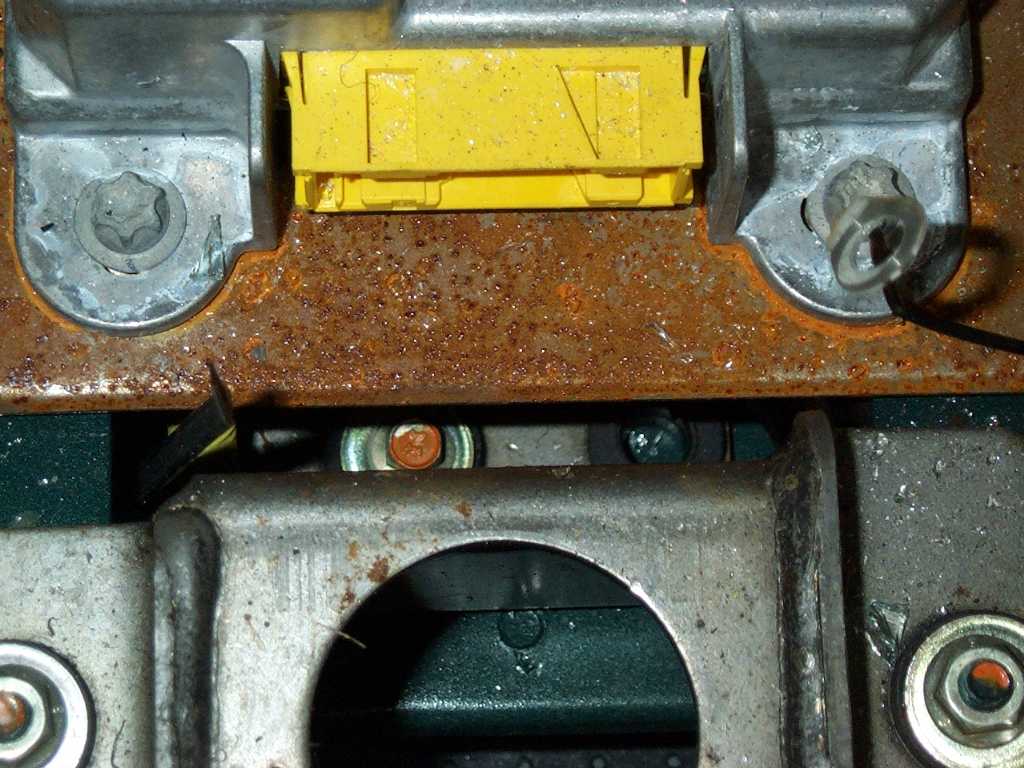

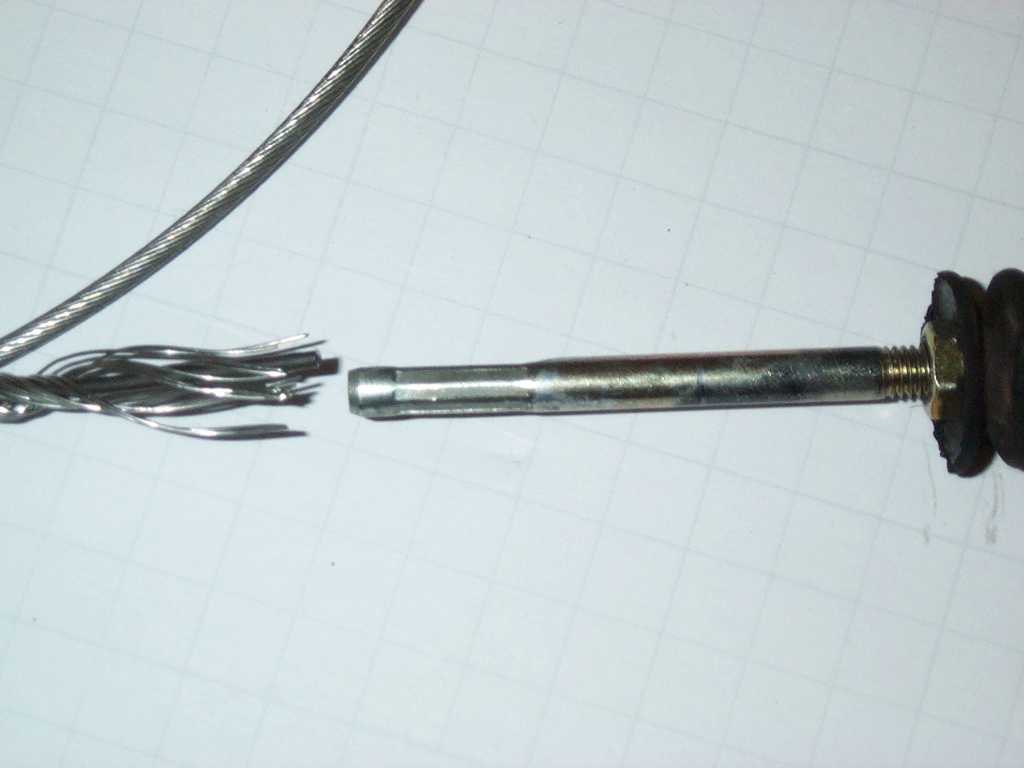

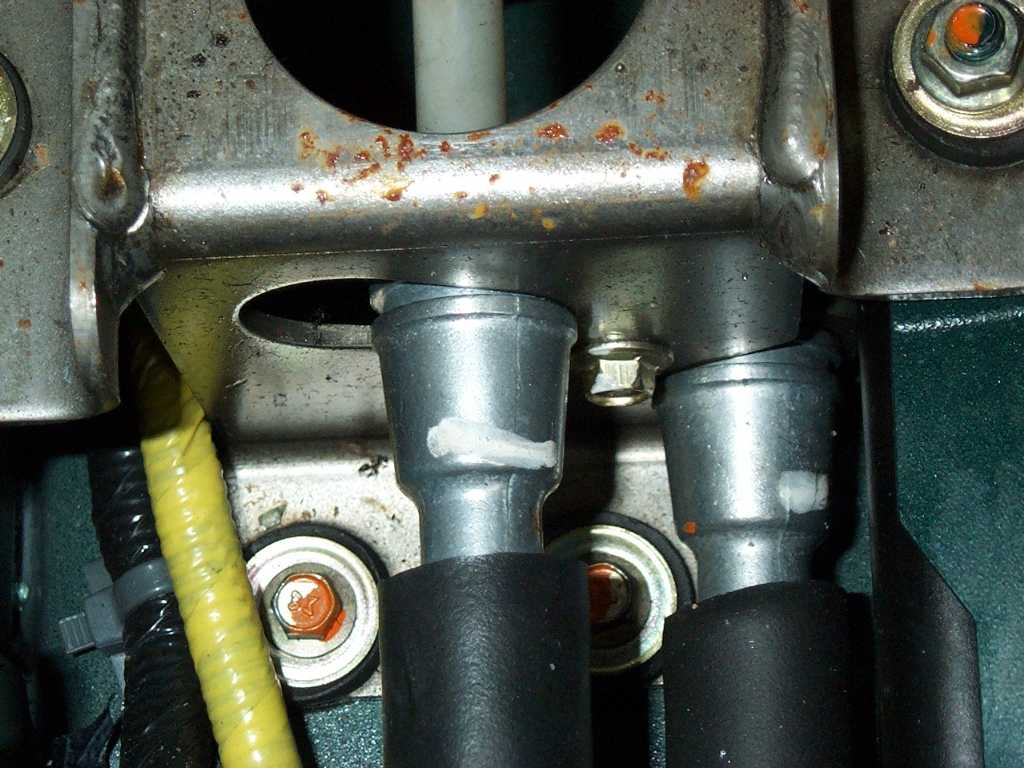

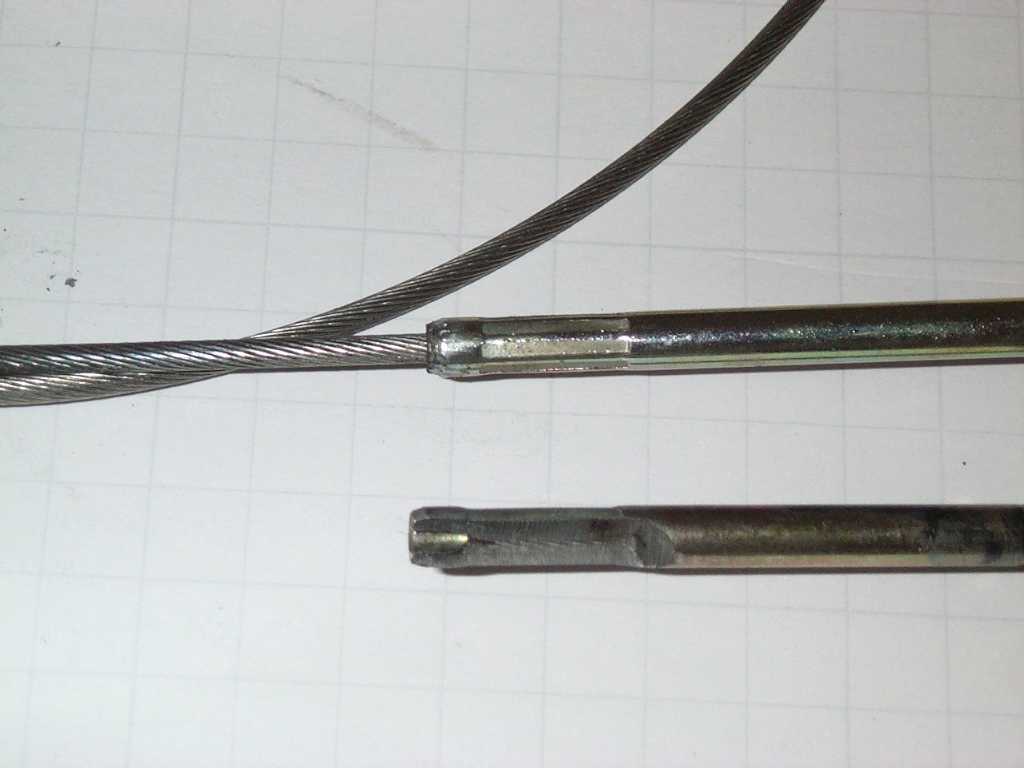

gearDCP_2598	gearDCP_2599	from below	broken cable at crimp joint

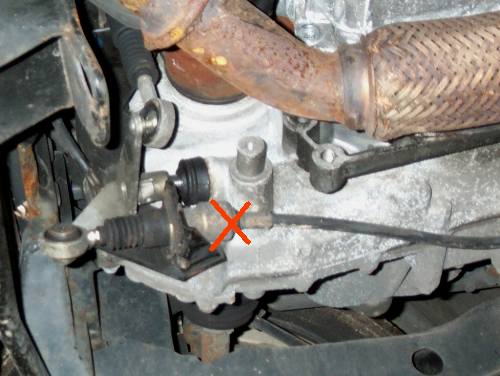

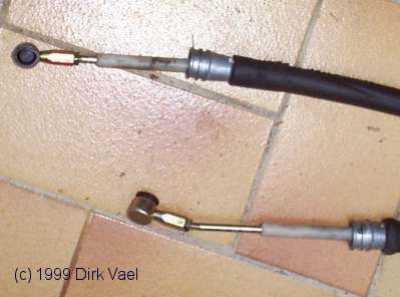

broken cable at crimp joint	broken cable at crimp joint	broken cable at crimp joint	gearbox_cp_2621

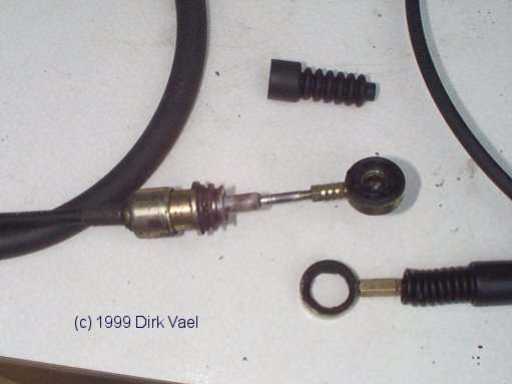

cable out	where the lower cable usually breaks	cable with broken ball joint	gear cable

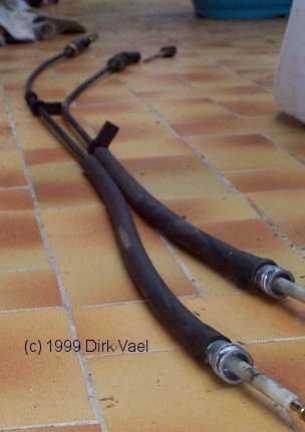

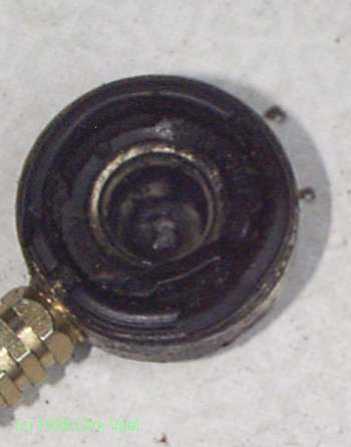

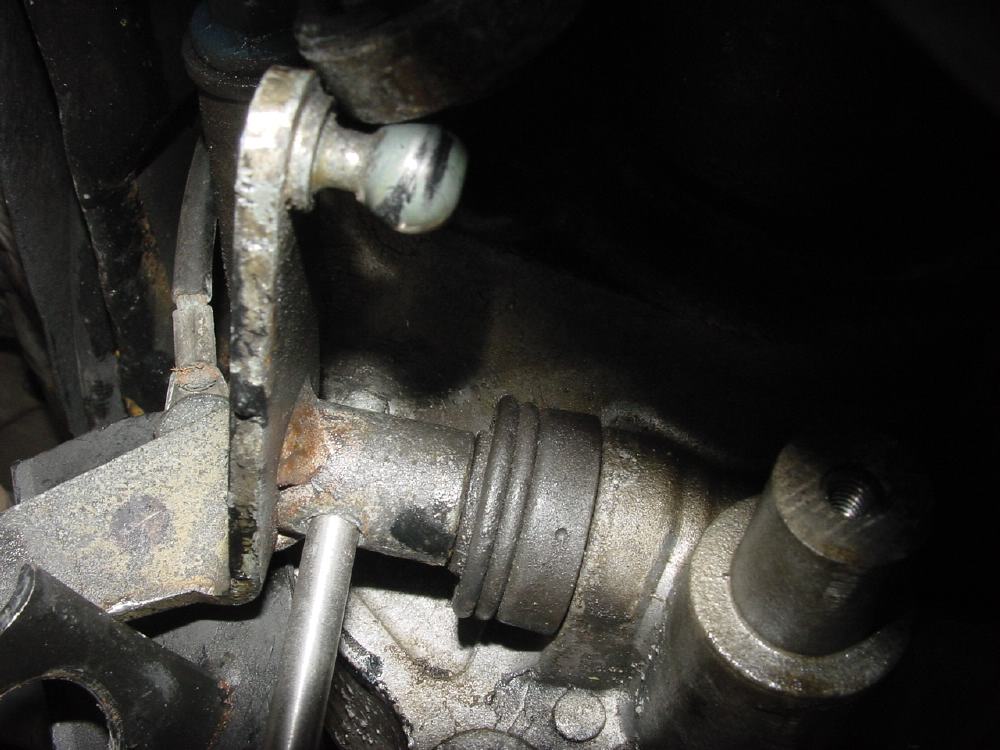

cable with broken ball joint	ball joint	gear cables	selector side

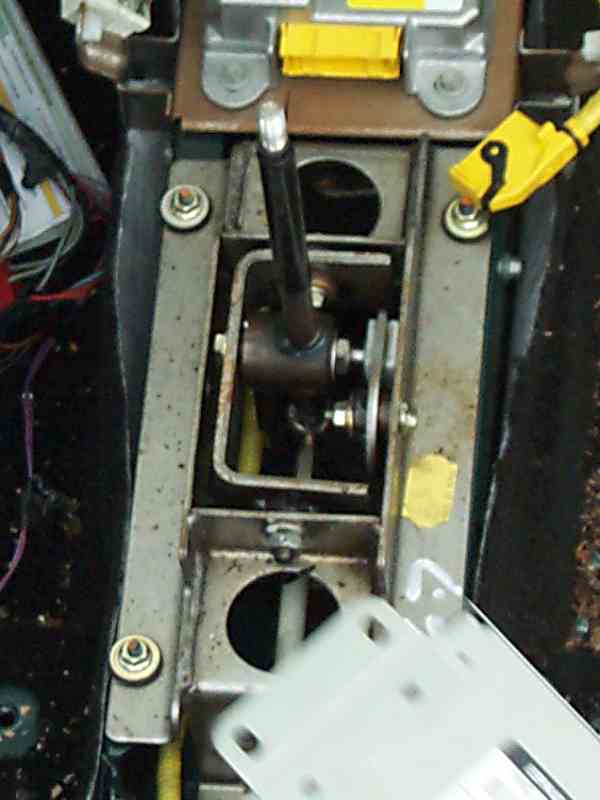

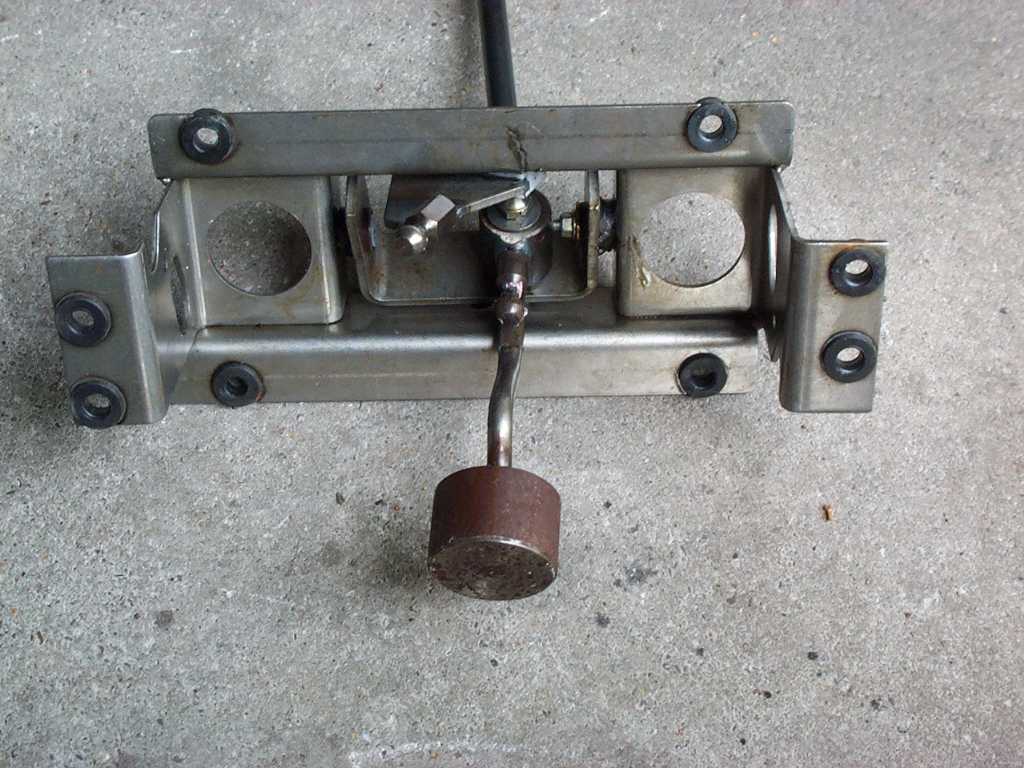

gear selector	gearstick assy	gearstick2	Kugelgelenk

parts	out_cp_2630	gear selector

Notice: The MG TF uses a shorter gear change cable. (app 139 cm long. Needs a different bell crank and gearbox bracket to fit to the MGF)
